INSTALLATION INSTRUCTIONS
© Panduit Corp. 2016
V00029KB
Page 3 of 6

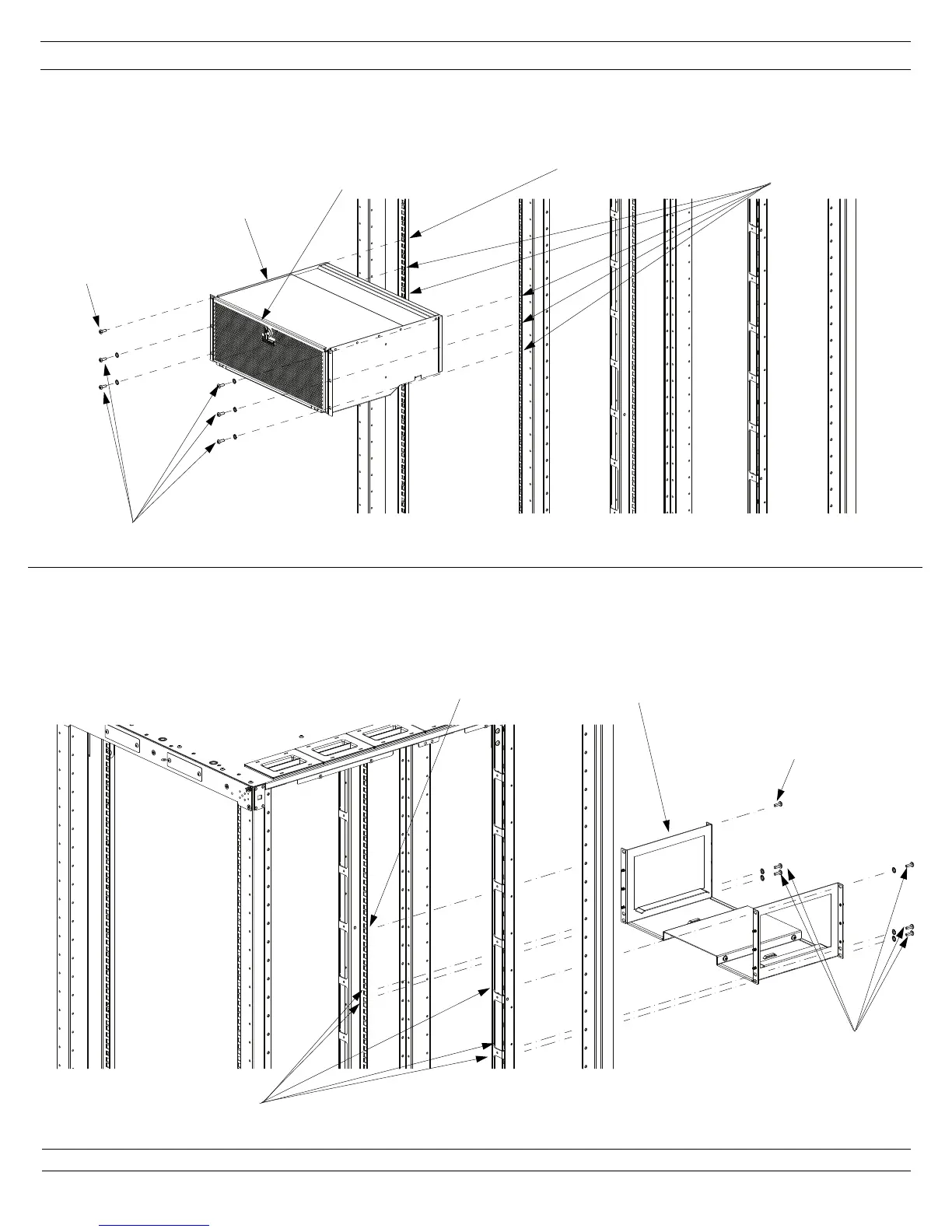

Install Switch Ducting
Position Switch Ducting so that the perforated door of ducting faces the cold aisle and the mounting holes of Switch Ducting align with cage
nuts in equipment rails (installed on page 2). Secure Switch Ducting to equipment rails using (5) #12-24 Phillips screw, (5) #12 External
Tooth Washers and (1) hex head grounding screw (green; use 5/16” socket wrench) on front rail. Ensure that hex head grounding screws
fasten into grounding cage nuts.
(1) #12-24 Hex Head
Grounding Screws
(use 5/16” socket wrench)
Switch Ducting
Perforated Door of Switch Ducting
(faces Cold Aisle)
Install Switch Support Bracket
Position Switch Support Bracket so that the mounting holes of Switch Support Bracket align with cage nuts in equipment rails (installed on
page 2). Secure Switch Support Bracket to Rear equipment rails using (5) #12-24 Phillips screw, (5) #12 External Tooth Washers. (1) hex
head grounding screw (green; use 5/16” socket wrench) on rear rail. Ensure that hex head grounding screws fasten into grounding cage
nuts
.
Grounding Cage Nut
(green)
Cage Nuts
(installed)
(5) #12-24 Phillips Screws
(1) #12-24 Hex Head
Grounding Screws
(use 5/16” socket wrench)
Cage Nuts
(installed)
Grounding Cage Nut
(green)
Switch Support
Bracket
FRONT OF
CABINET
REAR OF
CABINET
FRONT OF
CABINET
(5) #12 External Tooth Washers
(5) #12-24 Phillips Screws
(5) #12 External Tooth Washers
