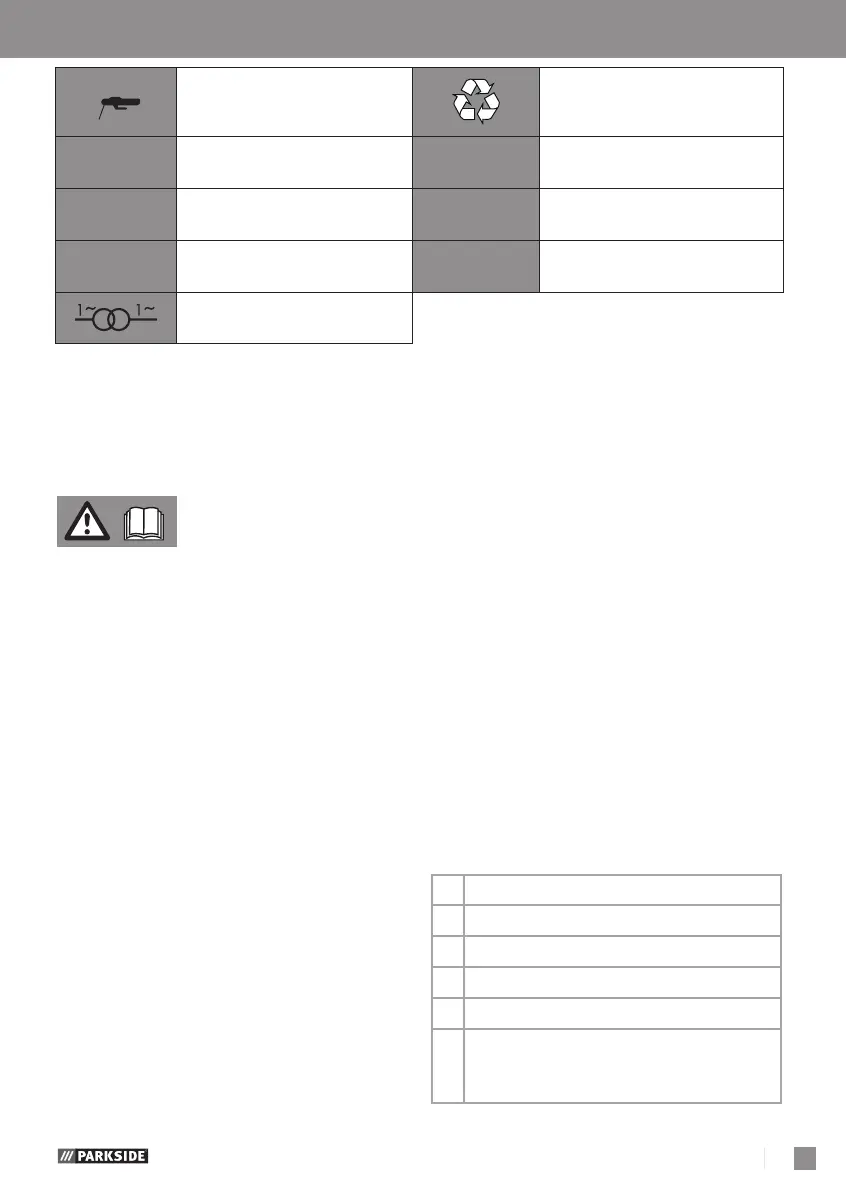

List of pictograms used / Introduction
Arc welder PESG 120 B4
Introduction
Congratulations!
You have purchased
one of our high-quality
devices. Please familiarise yourself with
the product before setup or first use.
To do so, please read through the
following operating and safety instruc-
tions carefully. This tool must be set up
or used only by people who have been
trained to do so.
KEEP OUT OF THE REACH OF
CHILDREN!
Intended use
This arc welder is ideal for manual
arc welding of steel, stainless steel,
steel sheet, galvanised metal and cast
material using the appropriate coated
electrodes. If not handled properly, the
product can be dangerous to individu-
als, animals and property.
The welding mask must only be used
with welding protection glasses as well
as header glasses, which are marked as
such and the mask must only be used for
welding.
The welding mask is not suitable for
laser welding! Use the product only
as described and only for the specific
applications as stated. Keep these
instructions in a safe place. Ensure you
hand over all documentation when
passing the product on to anyone else.
Any use that differs to the intended
use as stated above is prohibited and
potentially dangerous. Damage or
injury caused by misuse or disregarding
the above warning is not covered by
the warranty or any liability on the part
of the manufacturer. The device has
been designed for household use only
and must not be used in commercial or
industrial applications. Commercial use
will void the guarantee.
Package contents
1 Arc welder
1 Welding mask
2 Welding cables
1 Combi wire brush with slag hammer
1 Assembly and operating instructions
5 Welding electrodes
(2 x 1.6 mm; 2 x 2.0 mm;
1 x 2.5 mm)
Electrode holder
connection
Made from recycled
material
U
0
Rated value of the open
circuit voltage
I
2 max
greatest rated value of the
welding current
U
1
Rated value of the mains
voltage
I
1 max
Greatest rated value of the
mains current
U
2
Standardised operating
voltage
I
1 eff
Effective value of the
greatest mains current
Single-phase transformer
