Parkside PFDS 120 A2 User Manual

21GB / IE / NI
can be carried out in two passes running in
opposite directions.
U

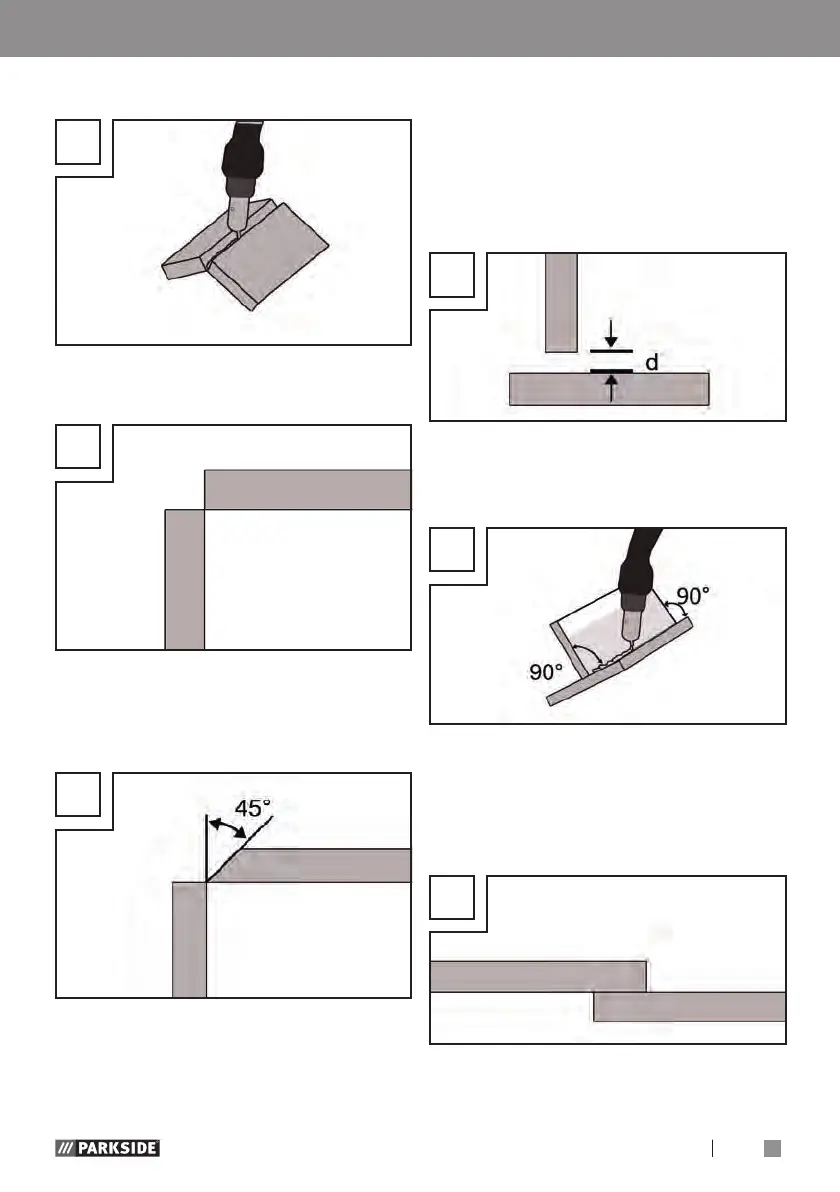

Welds on the outer edge
The preparation for this is very simple.
V
However, it is no longer expedient for thicker
materials. In this case, it is better to prepare
a joint as shown below, in which the edge of
the plate is angled.
W
Fillet weld connections
A fillet weld is created if the workpieces are
perpendicular to each other. The weld should
be shaped like a triangle with sides of equal
length and a slight fillet.
Welds on an inner corner
The preparation for this weld joint is very
simply and is carried out for thicknesses of 5
mm. The dimension “d” needs to be reduced
to a minimum and should always be less
than 2 mm.
X
However, it is no longer expedient for thicker
materials. In this case, it is better to prepare
a joint as shown in Figure W, in which the
edge of the plate is angled.
Y
Overlap welds
The most common preparation is that with
the straight weld edges. The weld can be
released using a standard angle weld. Both
workpieces must be brought as close to each
other as possible.
Z
Commissioning
303284_Fülldrahtschweißgerät_PFDS_120_A2_content_LB6_GB-IE-NI.indb 21303284_Fülldrahtschweißgerät_PFDS_120_A2_content_LB6_GB-IE-NI.indb 21 19.12.2019 13:32:4819.12.2019 13:32:48

Parkside PFDS 120 A2 Specifications

General

Input Voltage	230 V~ 50 Hz
Protection Class	IP21S
Electrode Diameter	1.6-3.2 mm
Cable Length with Electrode Holder	2 m
Cable Length with Earth Clamp	2 m
