Model: flux-cored wire welder PFDS 33 A1
Voltage U
1
: 230 V
~
/ 50 Hz
(alternating current)
Welding current I
2
: 48 A/90 A
No-load voltage U
0
: 27.5 V
Protection rating: IP 21S
Insulation class: H
Weight: 12.7 kg
Welding wire: Ø 0.7/0.8/0.9/1.0mm
Welding wire: approx. 450 g
Welding current:
▯ Material thickness
1.0–2.0 mm: with Ø 0.7 / 0.8 mm welding wire,
welding current 48 A – 60 A
▯ Material thickness
2.0–6.0 mm: with Ø 0.8/0.9/1.0mm welding wire,
welding current 70 A – 90 A
Duty cycle X: 10% at 90 A welding current
60% at 48 A welding current

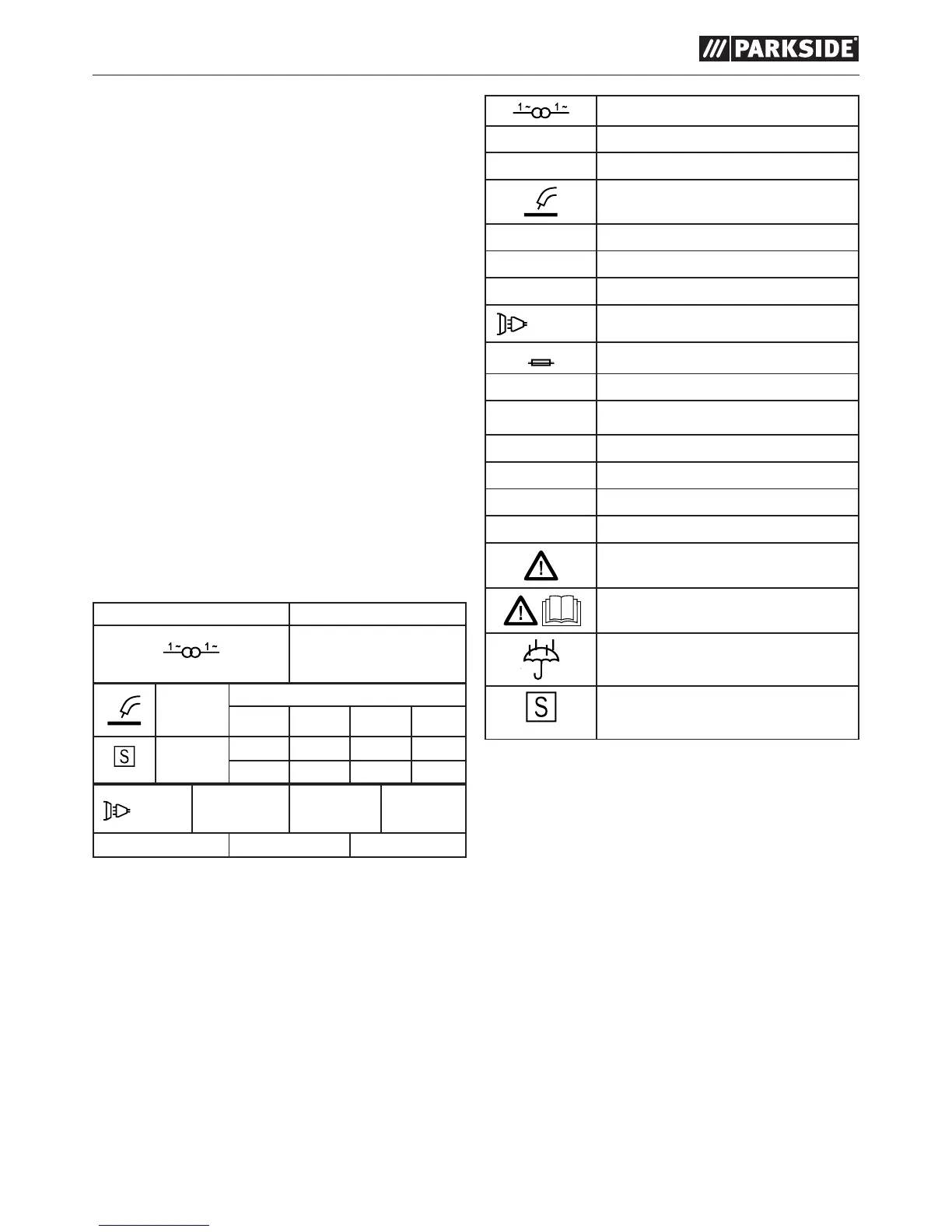

Rating plate and explanation of symbols
PFDS 33 A1 S/N:
EN 60974-1:2012
EN 60974-10:2014/A1:2015
Class A
~
50 Hz
48 A / 16 V – 90 A / 18.5 V
X 10 % 60 %
U
0
= 27.5 V
I
2
90 A 48 A
U
2
18.5 V 16 V
1
~
50 Hz U
1
= 230 V I
1max
= 13 A I
1eff
= 4.8 A
IP21S 12.7 kg
Single-phase transformer
U
0
Nominal no-load voltage
Ø mm
Permissible flux-core wire diameter
Symbol for self-shielded flux-core welder
I
2
Rated value of the welding current
X
Duty cycle in %
U
2
Standardised working voltage
1
~
50 Hz
Mwains supply, number of phases alternating
current symbol and rated value of the frequency
16A
Nominal value of the required mains fuse
U
1
Rated value of the mains voltage
I
1
max.
Max. rated value of the mains current
I
1
eff
Effective value of the max. mains current (A)
IP21S
Protection class
H
Insulation class
12.7 kg
Weight of the appliance
Follow the safety regulations
Read the operating instructions
Do not store or use the appliance in wet environ-
ment or in rain
Symbol for welding power sources that are suit-
able for welding in environments with increased
electrical risks.
