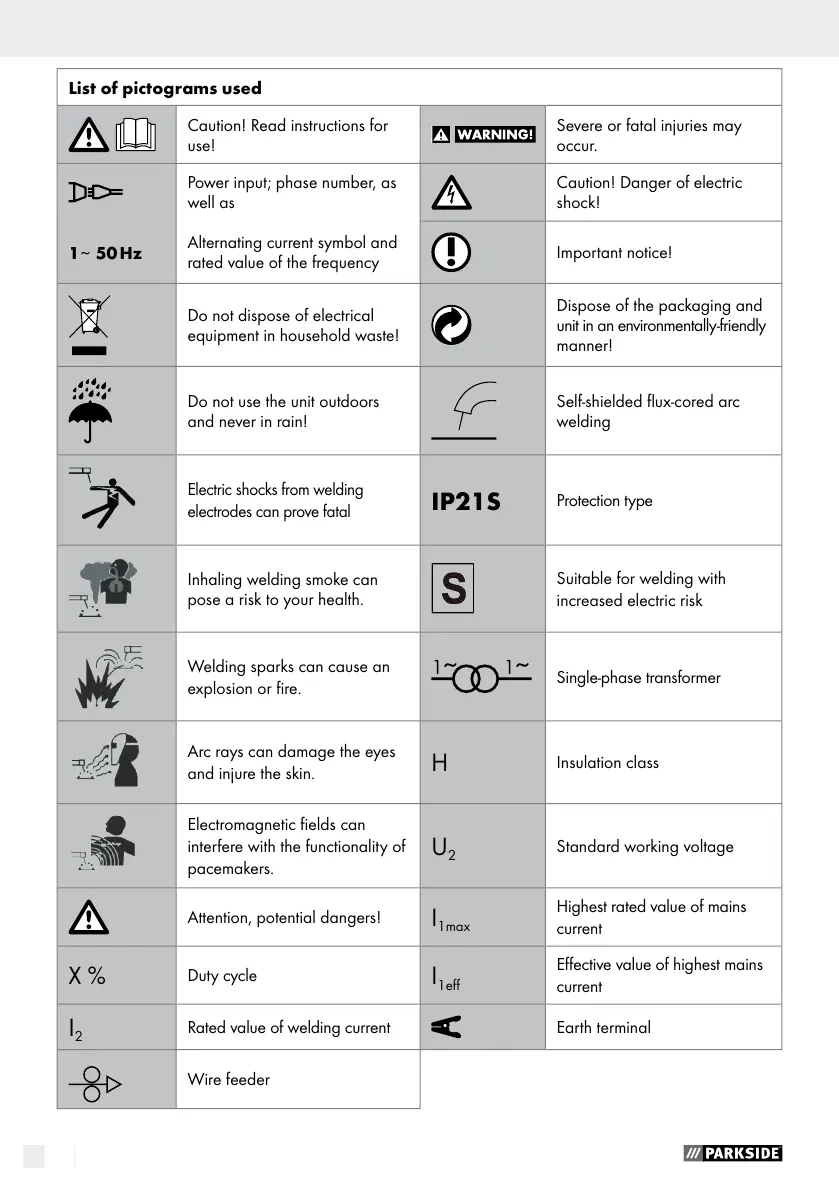

List of pictograms used
Caution! Read instructions for
use!
Severe or fatal injuries may
occur.
Power input; phase number, as
well as
Caution! Danger of electric
shock!
1
~
50 Hz
Alternating current symbol and
rated value of the frequency
Important notice!
Do not dispose of electrical
equipment in household waste!
Dispose of the packaging and
unit in an environmentally-friendly
manner!
Do not use the unit outdoors
and never in rain!
Self-shielded flux-cored arc
welding
Electric shocks from welding
electrodes can prove fatal
IP21S
Protection type
Inhaling welding smoke can
pose a risk to your health.
Suitable for welding with
increased electric risk
Welding sparks can cause an
explosion or fire.
Single-phase transformer
Arc rays can damage the eyes
and injure the skin.
H
Insulation class
Electromagnetic fields can
interfere with the functionality of
pacemakers.
U
2
Standard working voltage
Attention, potential dangers!
I
1max
Highest rated value of mains
current
X %
Duty cycle
I
1eff
Effective value of highest mains
current
I
2
Rated value of welding current Earth terminal
Wire feeder
