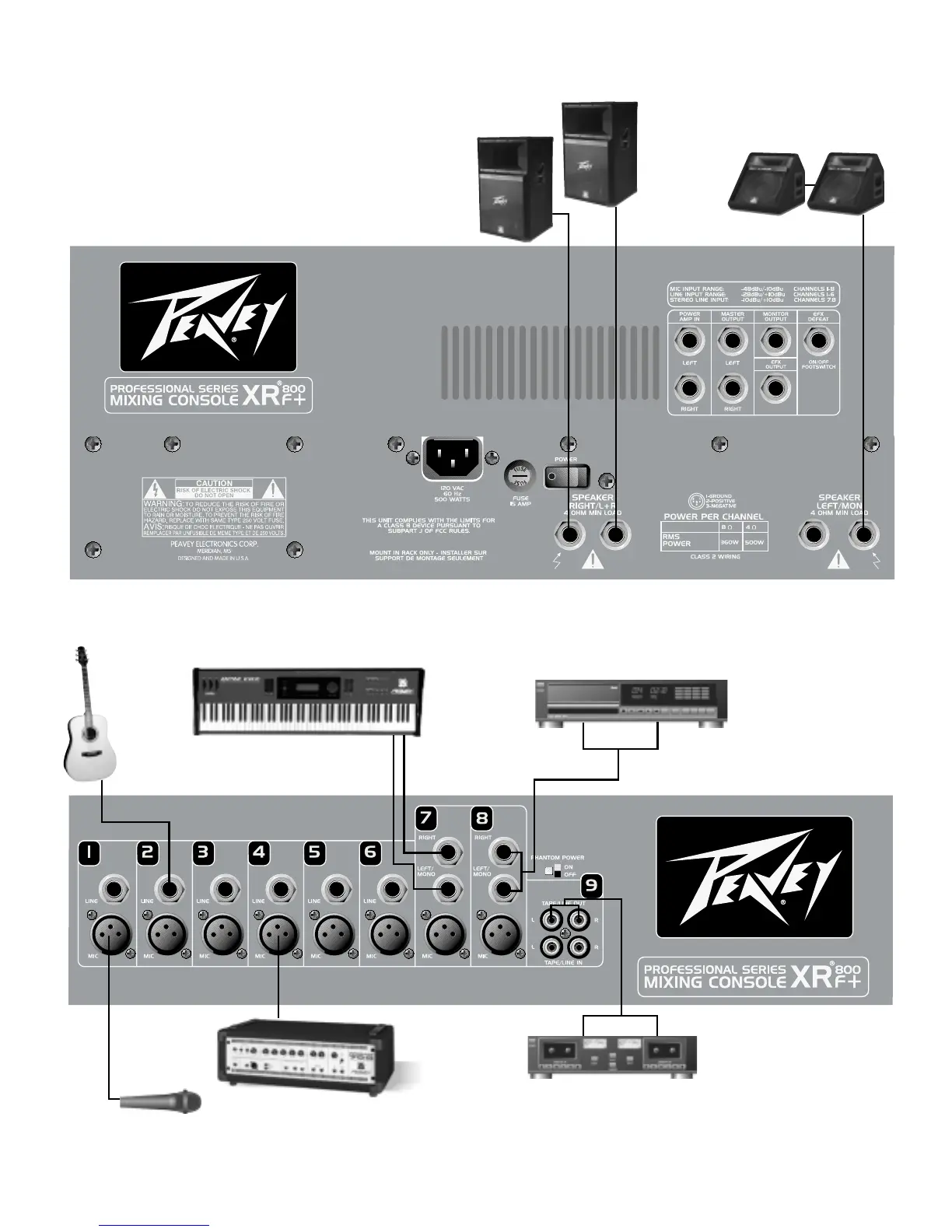

XR 800F+ HOOK-UP DIAGRAM
14
LRIN
Recording Deck
LROUT
CD Player
Floor Monitors
Enclosures
Mic
Amp Head
Line Out
Guitar
Back of Unit
Front of Unit
Keyboard
