28 DISPLAY ICONS 700 CONTROLLER
Rev E
14. The display cursor is next to "REGEN TIME & DAY" when programming
the time of regeneration and the days of regeneration.
15. The display cursor is next to "TIME & DAY" when programming the
current time and day.
16. The hourglass is displayed when the motor is running. The camshaft
should be turning.
17. These cursors will appear next to the item that is currently displayed.
18. X100 multiplier for large values.
19. Shows when water is flowing through the valve.
20. Used with #24, #25, and #26. Displays a sequence number or a value.
21. History Values (H). The number displayed by #23 identifies which history
value is currently displayed.
22. Parameter (P). Displayed only in Level II Programming. The number
displayed by #23 identifies which parameter is currently displayed.
23. Cycle(C). The number displayed by #23 is the current cycle in the
regeneration sequence.
24. Hardness setting—only used with 760 and 760C controllers.
25. Capacity display—shows estimated system capacity.

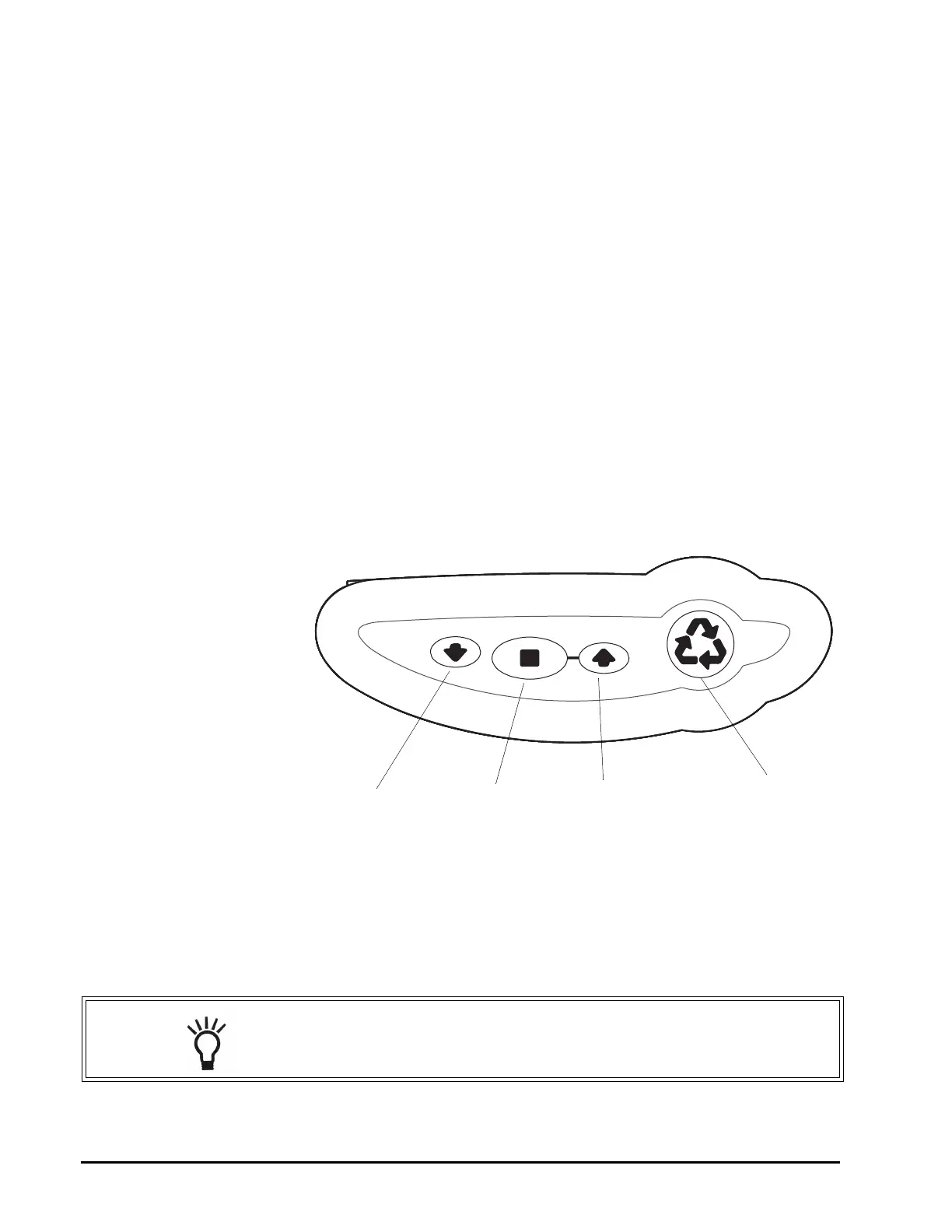

KEYPAD — Buttons
1. DOWN arrow. Generally used to scroll down or increment through a
group of choices.
2. SET. Used to accept a setting that normally becomes stored in memory.
Also used together with the arrow buttons.
3. UP arrow. Generally used to scroll up or increment through a group of
choices.
4. Regenerate. Used to command the controller to regenerate. Also used to
change the lock mode.
NOTE: If a button is not pushed for thirty seconds, the controller returns to
normal operation mode. Pushing the regenerate button immediately returns
the controller to normal operation.
