5 Mounting the Unit
5.1 Wall Mount
The Pepwave MAX 700/HD2/On-The-Go can be wall mounted using screws. After adding the
screw on the wall, slide the MAX in the screw hole socket as indicated below. Recommended
screw specification: M3.5 x 20mm, head diameter 6mm, head thickness 2.4mm.
The Pepwave MAX BR1 requires four screws for wall mounting.
5.2 Car Mount

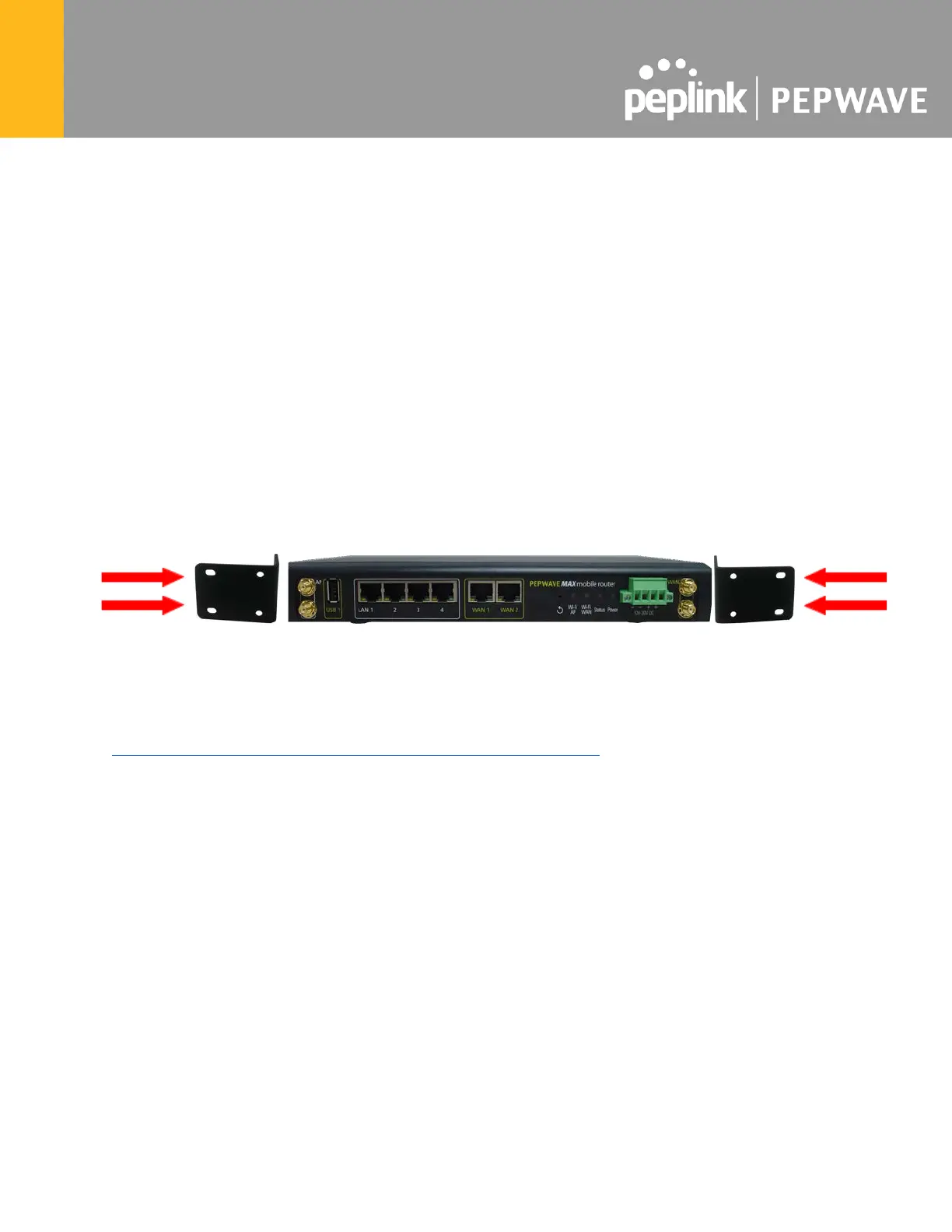

The Pepwave MAX700/HD2 can be mounted in a vehicle using the included mounting brackets.
Place the mounting brackets by the two sides and screw them onto the device.
5.3 IP67 Installation Guide
Installation instructions for IP67 devices can be found here:
http://download.peplink.com/manual/IP67_Installation_Guide.pdf
