Perlick HP24Z Service Manual

ITEM
NUMBER
DESCRIPTION
01 Replacement Compressor Kit
01a Compressor, EM20
01b TSD Assembly
01c Run Capacitor, 5uf
01d Bale Strap (Not Shown)
01e Drier, (2) 1/4” I.D. Inlets & 1/8” I.D. Outlet (Not Shown)
01f 1/4” Access Valve With 1/4” O.D. Tube Extension (Not Shown)
01g Hairpin Coer Pin (Not Shown)
01h Grommet
01i 3/8” Washer (Not Shown)
02 Compressor Electricals Kit
Return to Table of Contents
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual

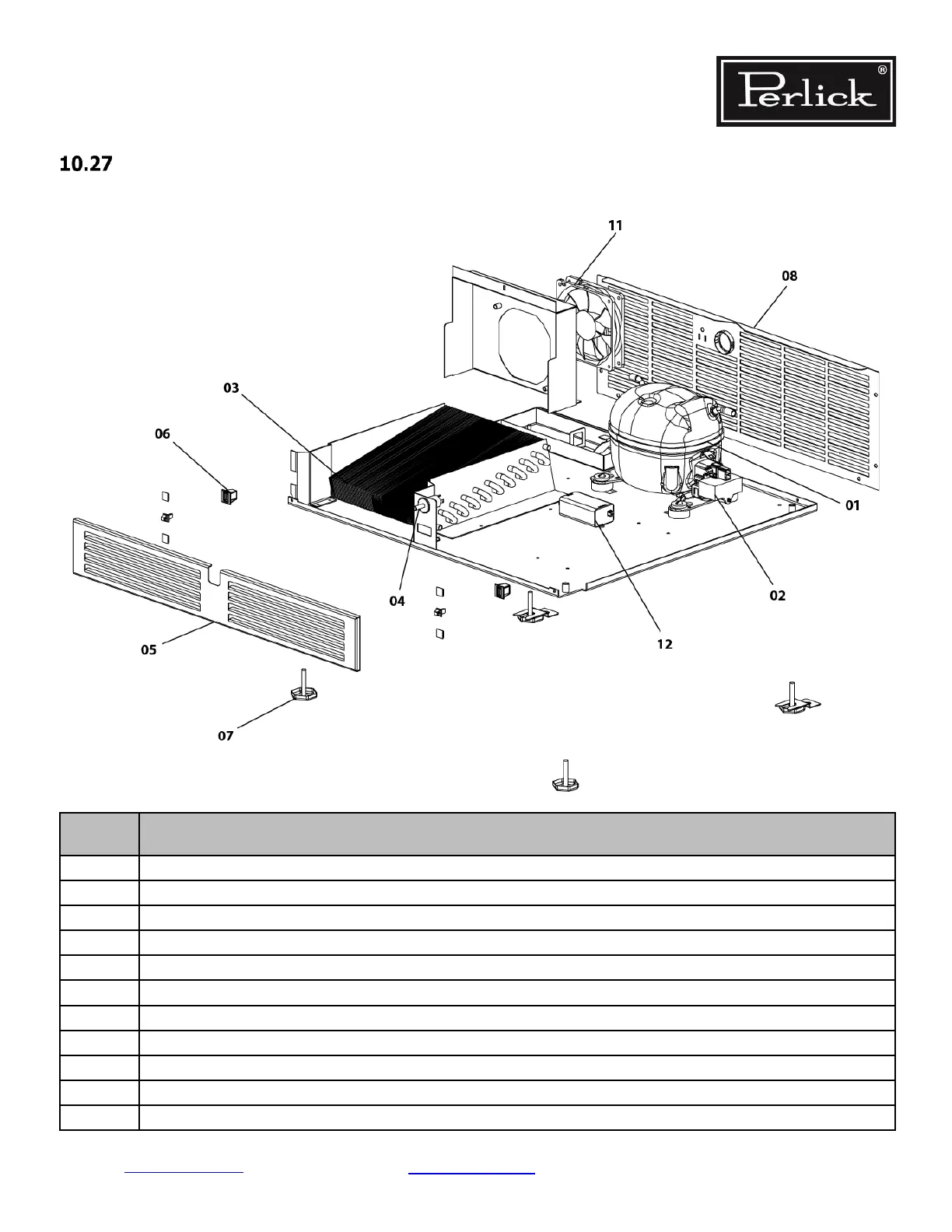

HC24BB, HC24RB, HC24WB, HC24RO, HC24TB & HC24TO Cabinets - Condenser
Compartment Service Parts
Replacement Parts Page 10-30
