1•4 Maintenance - component location

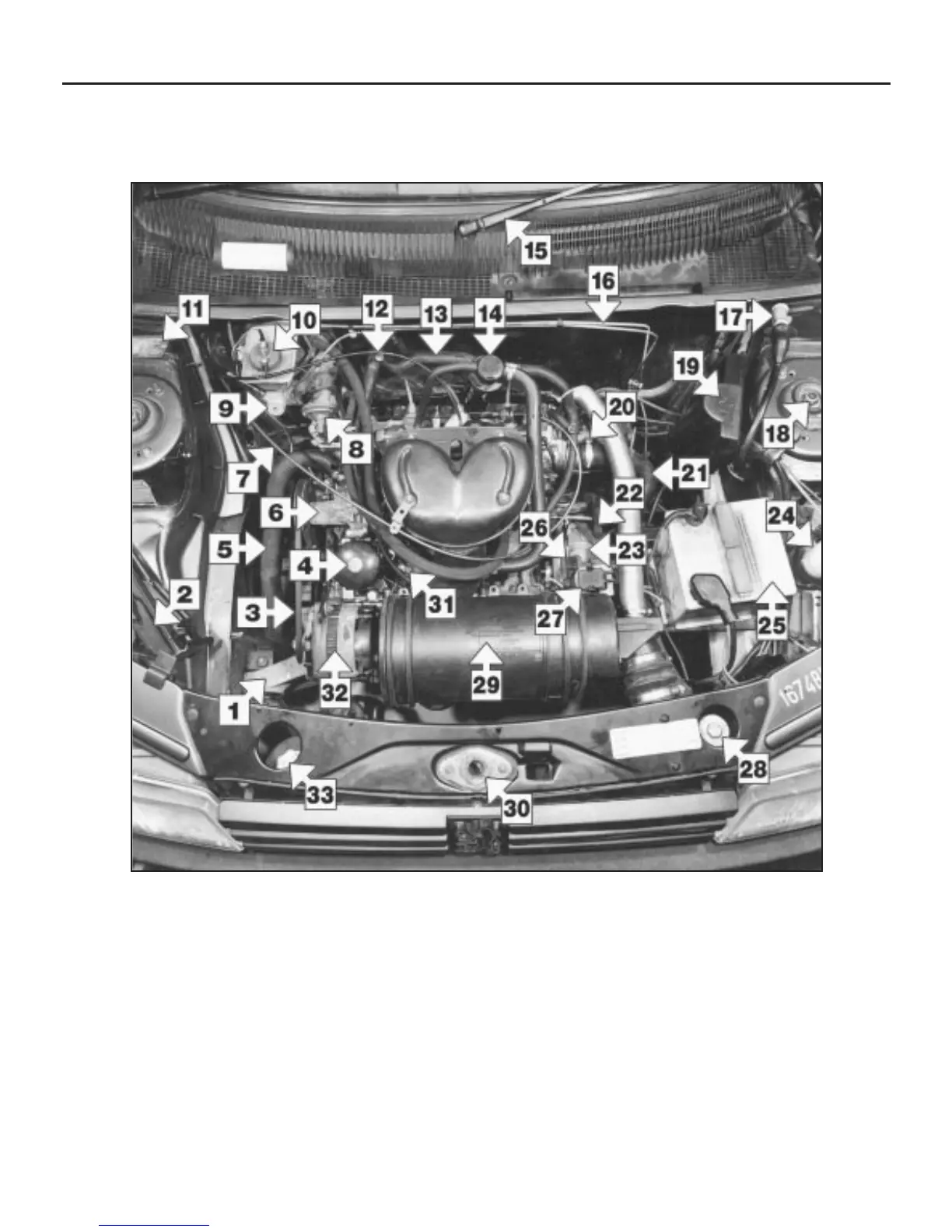

Underbonnet view of a 1360 cc GT model (XY8 series engine)
1 Right-hand front engine mounting
2 Jack
3 Drivebelt
4 Oil filter
5 Bottom hose
6 Water pump
7 Throttle cable
8 Fuel pump
9 Brake master cylinder
10 Brake fluid reservoir filler cap
11 Vehicle identification plate
12 Choke cable
13 Heater hose
14 Oil filler cap/crankcase ventilation filter
15 Windscreen wiper arm
16 Hydraulic brake lines
17 Cooling fan motor resistor
18 Front suspension shock absorber top
mounting nut
19 Ignition coil cover
20 Distributor
21 Bottom hose
22 Clutch release fork
23 Clutch housing
24 Washer reservoir
25 Battery
26 Ignition timing aperture
27 Diagnostic socket
28 Radiator filler cap
29 Air cleaner
30 Bonnet lock
31 Oil pressure switch
32 Alternator
33 Cooling system expansion
bottle
