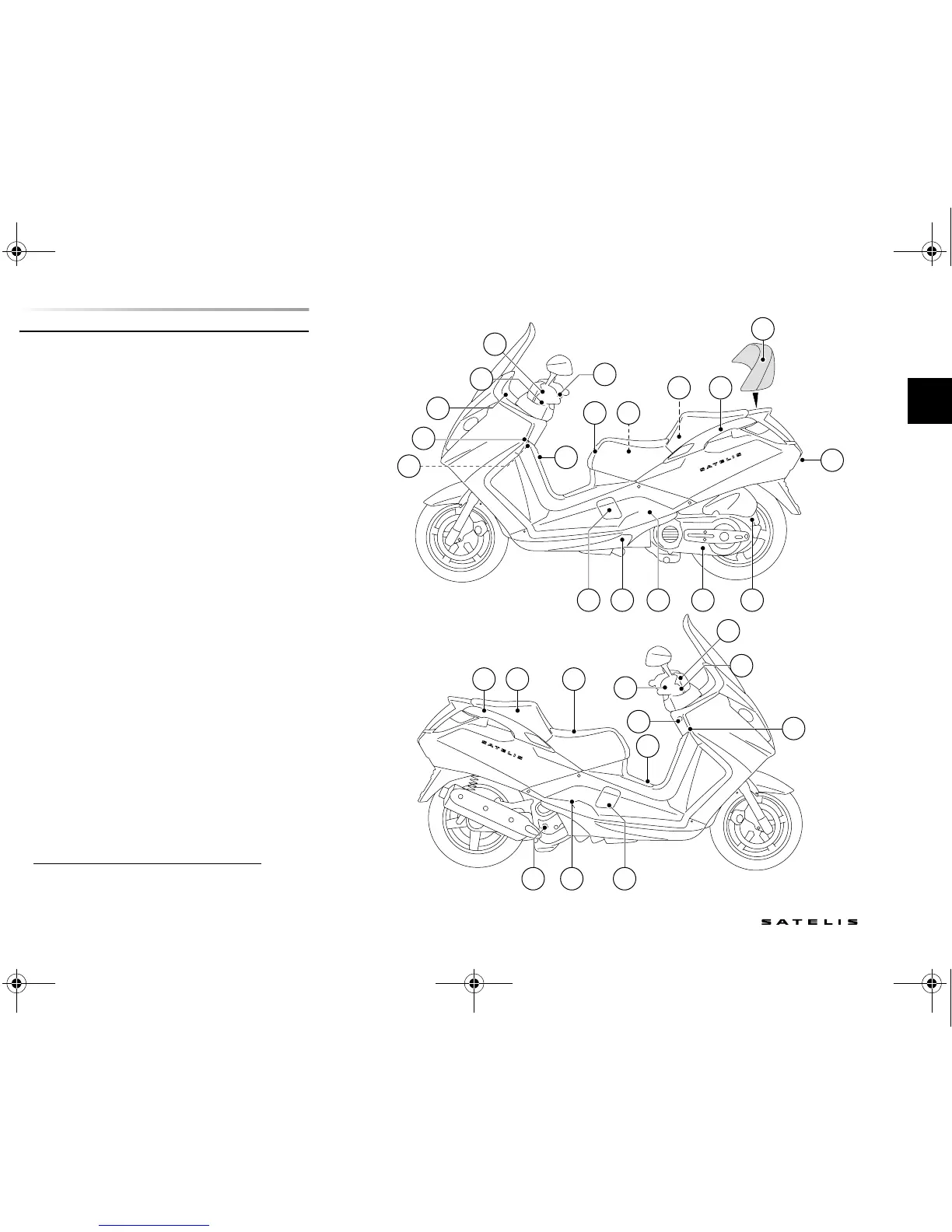

DESCRIPTION OF THE VEHICLE
1. Instrument panel
2. Ignition switch
3. Lockable glove box
4. Utility hanger
5. Accessory socket
6. Fuel tank flap
7. Brake fluid level
8. Left brake lever (Main brake
1
)
9. Right brake lever (Secondary brake
1
)
10. Throttle
11. Expansion tank
12. Handlebar glove box
13. Saddle cover hatch
14. Battery/Fuses
15. Saddle storage compartment
16. Grab handle
17. Rider saddle
18. Passenger backseat
19. Passenger backrest (400/500 cc only)
20. Manufacturer's plate
21. Central stand
22. Lateral stand
23. Passenger footrests
24. Engine number
25. Chassis markings
26. Engine oil level
27. Anti-theft chain lock
2
1. ABS/PBS
2. Depending on model
16
18
17
16
6
7
12
27
4
13
14
20
25
23
23
26
22
21
24
2
10
8
7
9
1
3
5
11
19
15
