S
et-up
30
9
.05

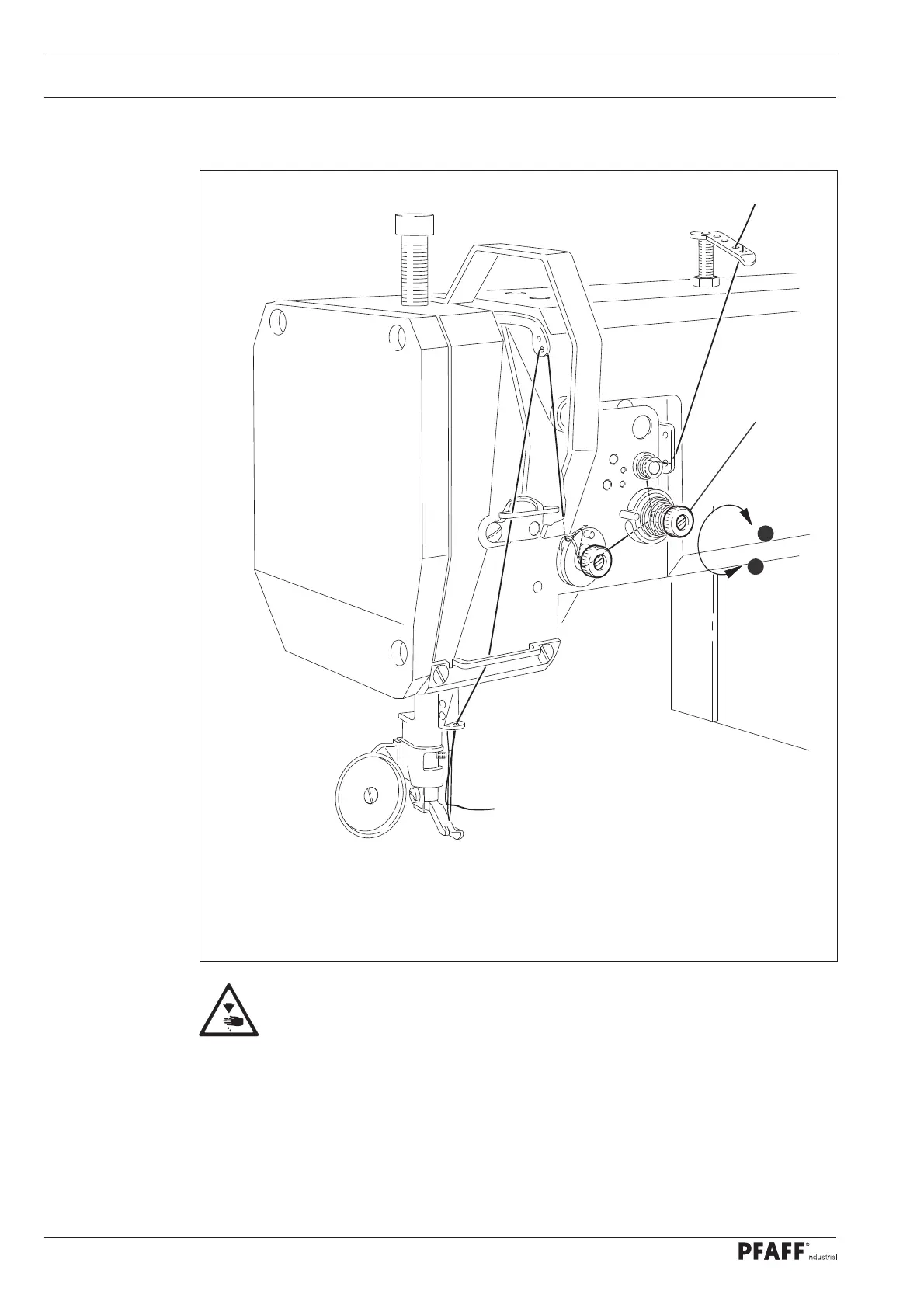

Threading the needle thread / adjusting the needle thread tension
(with the PF
AFF 1
243)
Switc
h of
f the mac
hine!
Risk of injur
y due to accident
al mac
hine start-up!
Thread the needle thread as sho
wn in Fig.
9
-
06
. Please ensure that the needle is
threaded from the lef
t.
Adjust the needle thread tension by t
urning the knurled thumb scre
w
1
.
Fig. 9 - 06
+
-
1
29
31
Table of Contents
Table of Contents
3
Safety
5
Directives
5
General Safety Instructions
5
Safety Symbols
6
Special Points of Attention for the Owner-Operator
6
Operating Personnel and Technical Staff
7
Operating Personnel
7
Technical Staff
7
Danger Warnings
8
Proper Use
9
Technical Data
10
Pfaff 1243
10
Pfaff 1244
11
Disposal of the Machine
12
Transport, Packaging and Storage
13
Transport to the Customer's Premises
13
Transport Within the Customer's Premises
13
Disposal of the Packaging Materials
13
Storage
13
Work Symbols
14
Operating Controls
15
Main Switch
15
Buttons on the Machine Head (Only in Machines with Backtacking System -911
15
Treadle
16
Hand Lever to Raise the Roller Presser
16
Lever for Stitch Length Regulation and Reverse Sewing
17
(In Machines Without Backtacking System -911
17
Lever for Stitch Length Regulation (in Machines with Backtacking System -911
17
Knee Lever (in Machines Without Backtacking System -911
18
Control Panel (Only in Machines with P40 CD)
18
Set-Up and Initial Commissioning
19
Set-Up
19
Setting the Table Height
19
Inserting the Sewing Machine into the Stand
20
Tensioning the V-Belt
21
Assembling the Upper V-Belt Guard
22
Mounting the Synchroniser
23
Assembling the Anti-Tipping Device
23
Connecting the Plug-In Connections and Ground Cable
24
Assembling the Reel Stand
25
Initial Start-Up
26
Switching the Machine on / off
26
Machine Drive Home Position
26
Set-Up
27
Inserting the Needle
27
Winding the Bobbin Thread, Adjusting the Thread Tension
28
Removing / Inserting the Bobbin Case
29
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
29
Threading the Needle Thread / Adjusting the Needle Thread Tension (with the PFAFF 1243)
30
Threading the Needle Thread / Adjusting the Needle Thread Tension
31
(With the PFAFF 1244)
31
Setting the Bobbin Stitch Counter
31
Maintenance and Care
32
Maintenance Intervals
32
Cleaning the Machine
32
General Oiling
33
Oiling the Hook
34
Oiling the Front Parts
34
Checking / Setting the Air Pressure
35
Cleaning the Maintenance Unit Air Fi Lter
35
Parameter Settings
36
Table Top
37
Table Top Cutout
38
Table Top Assembly
39
Wearing Parts
40
Other manuals for Pfaff 1244
Service Manual
84 pages
Adjustment Manual
44 pages
5
Based on 1 rating
