Maintenance and Care
35
1
10

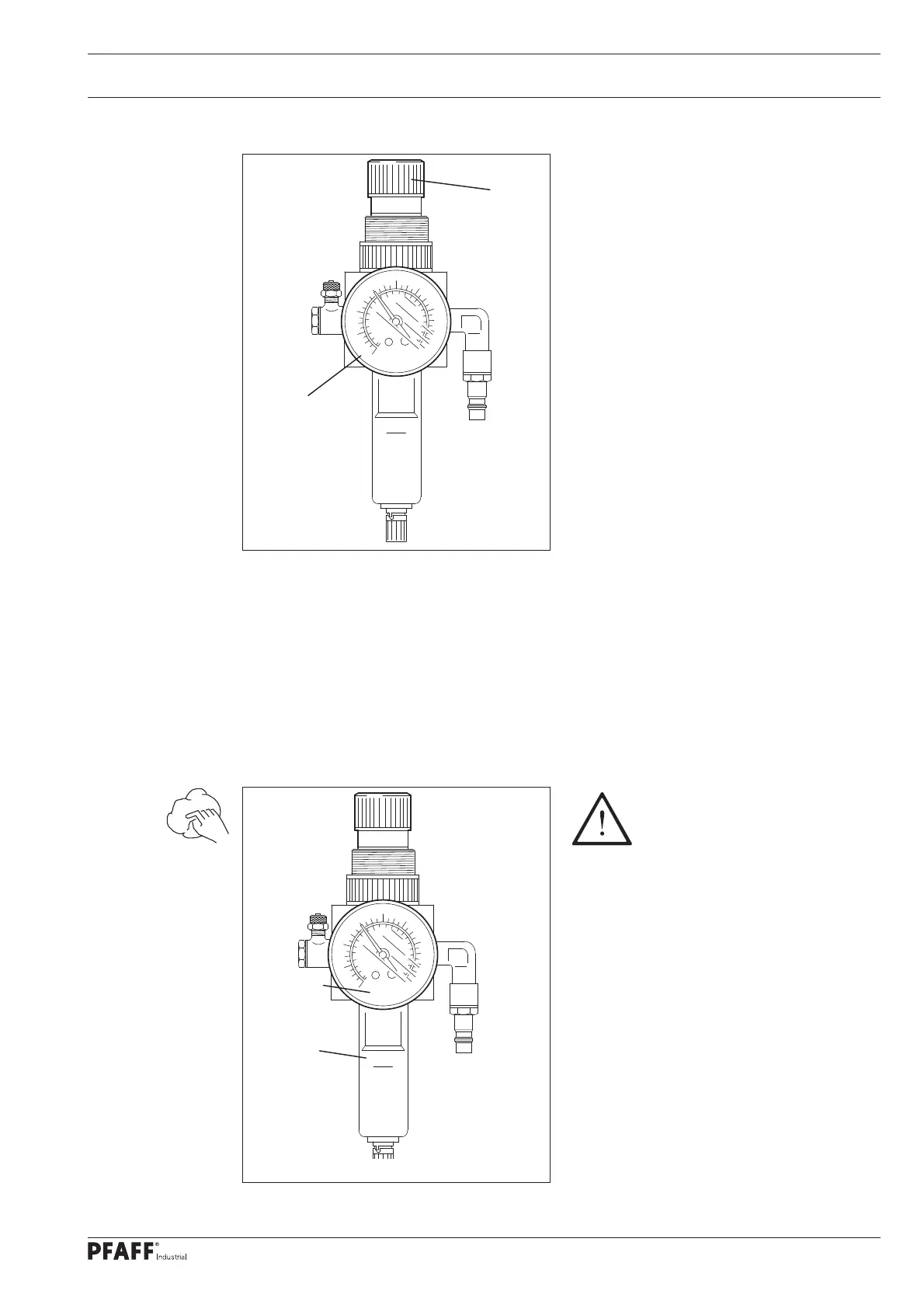

.06 Checking / setting the air pressure
 Check the air pressure on the
manometer 1 before every start-up.
 The manometer 1 must show a pressure
of 6 bar.
 Adjust this value if needed.
 To do this, pull up the button 2 and turn
it so that the manometer 1 shows a
pressure of 6 bar.
Fig. 10 - 05
2
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
Fig. 10 - 06
2
1
10.07 Cleaning the maintenance unit air fi lter
Switch off the machine!
Detach the compressed air
tube on the maintenance unit
Empty the water tank:
 The water tank 1 empties itself
automatically after the compressed air
tube for the maintenance unit has been
removed.
Clean fi lter:
 Unscrew the water tank 1 and take out
the fi lter 2.
 Clean the fi lter 2 with compressed air
or isopropyl alcohol (order no.
95-665 735-91).
 Screw in the fi lter 2 and screw on the
water tank 1.
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
