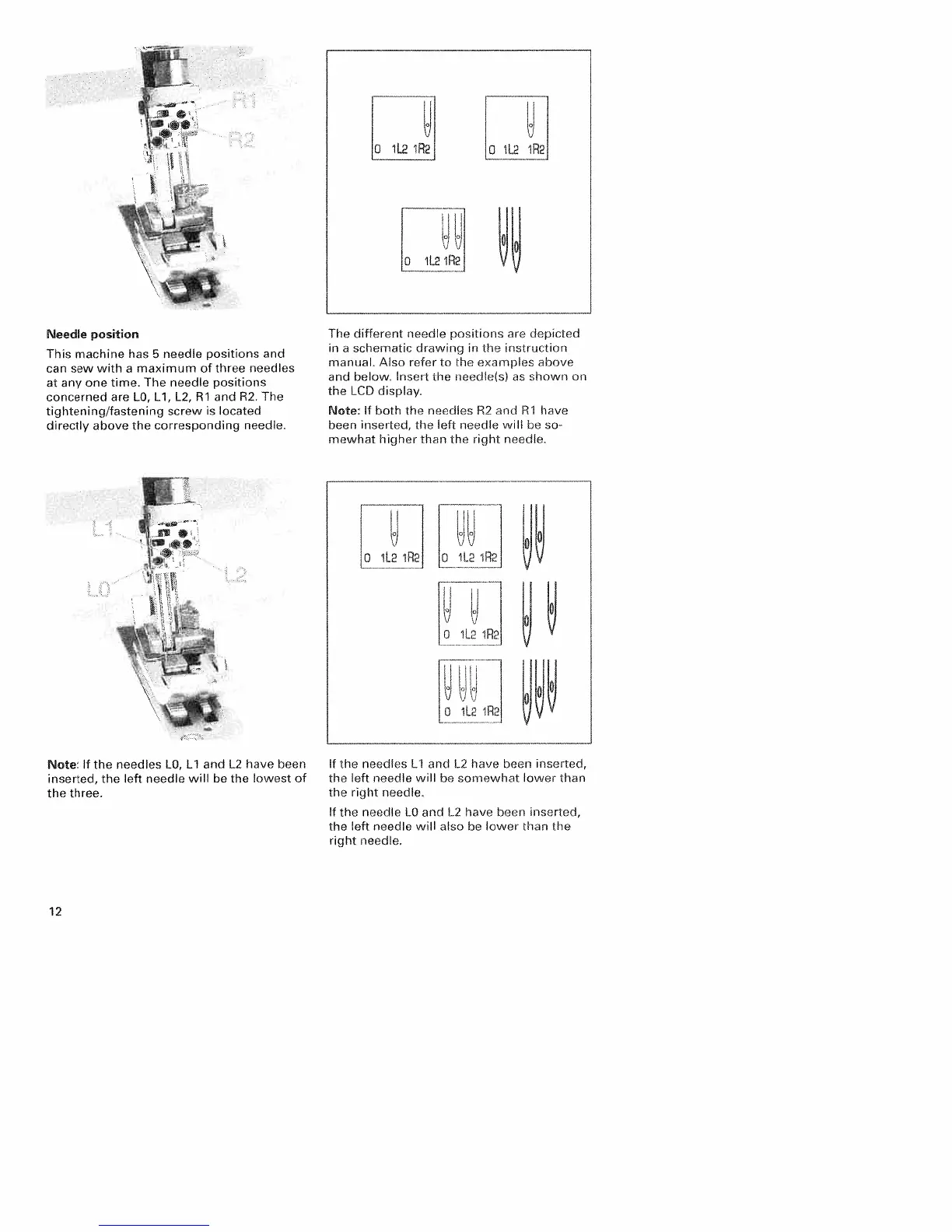

Need’e position
This machine
has
5
needle
positions and
can sew with a
maximum
of three needles
at
any one time. The needle
positions
concerned
are LO,
Li, L2, Ri
and R2.
The
tightening/fastening
screw
is located
directly above the corresponding
needle.
Note:
If
the needles LO,
Li and L2 have
been
inserted, the left needle
will
be
the lowest of
the three.
The different
needle positions are
depicted
in
a
schematic
drawing in the instruction
manual.
Also refer to the
examples above
and below.
Insert the
needle(s)
as
shown on
the LCD
display.
Note: If both the needles
R2 and
Ri
have
been
inserted, the left needle
will be so
mewhat
higher
than the
right
needle.
If
the needles
L1 and
L2
have
been
inserted,
the left needle will be somewhat
lower than
the
right needle.
If
the needle
LO and L2 have been
inserted,
the left needle
will also
be
lower than the
right
needle.
o
1L2R2
0
12 1R2
EU
0
1L21R2
EILU
0
1L21fl2 0
1L2
1R2
o 1L2
1R2
UJ’EJ
1L21R2
V
12
