Pfaff coverlock 4872 User Manual

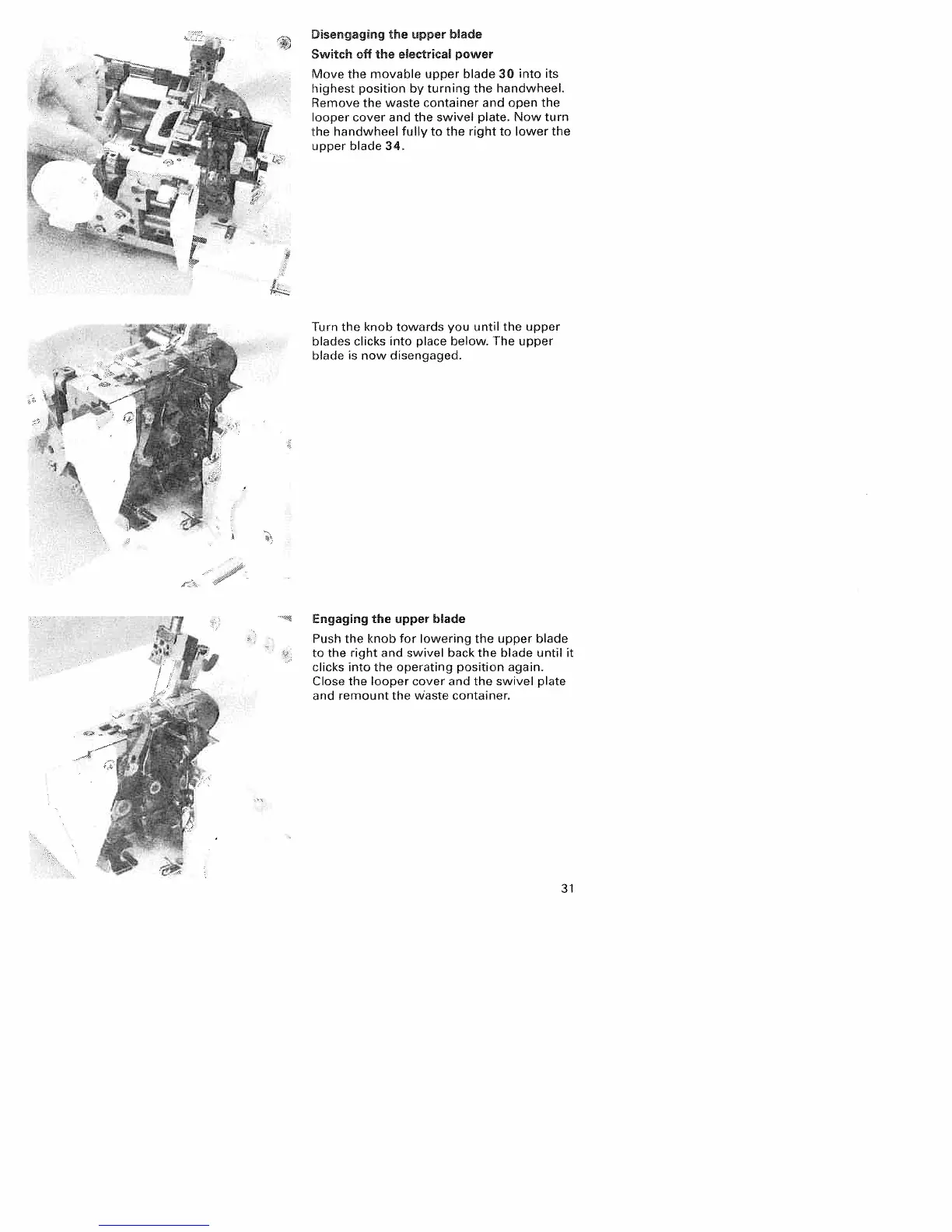

Disengaging
the
upper bbde
Switch off the
&ectrical power
Move the
movable upper blade 30 into its
highest position by turning the
handwheel.
Remove the waste
container and open the
looper cover and the
swivel
plate.
Now turn
the handwheel
fully
to
the right to lower the
upper blade 34.
Turn the knob towards you until the
upper
blades clicks into place below. The upper
blade
is
now disengaged.
Engaging the upper bbde
Push the knob for lowering the upper blade
to
the right and swivel back the blade until it
clicks into the operating position again.
Close the looper cover and the swivel plate
and remount
the
waste container.
1
31
