Phanteks eclipse p400s User Manual

23

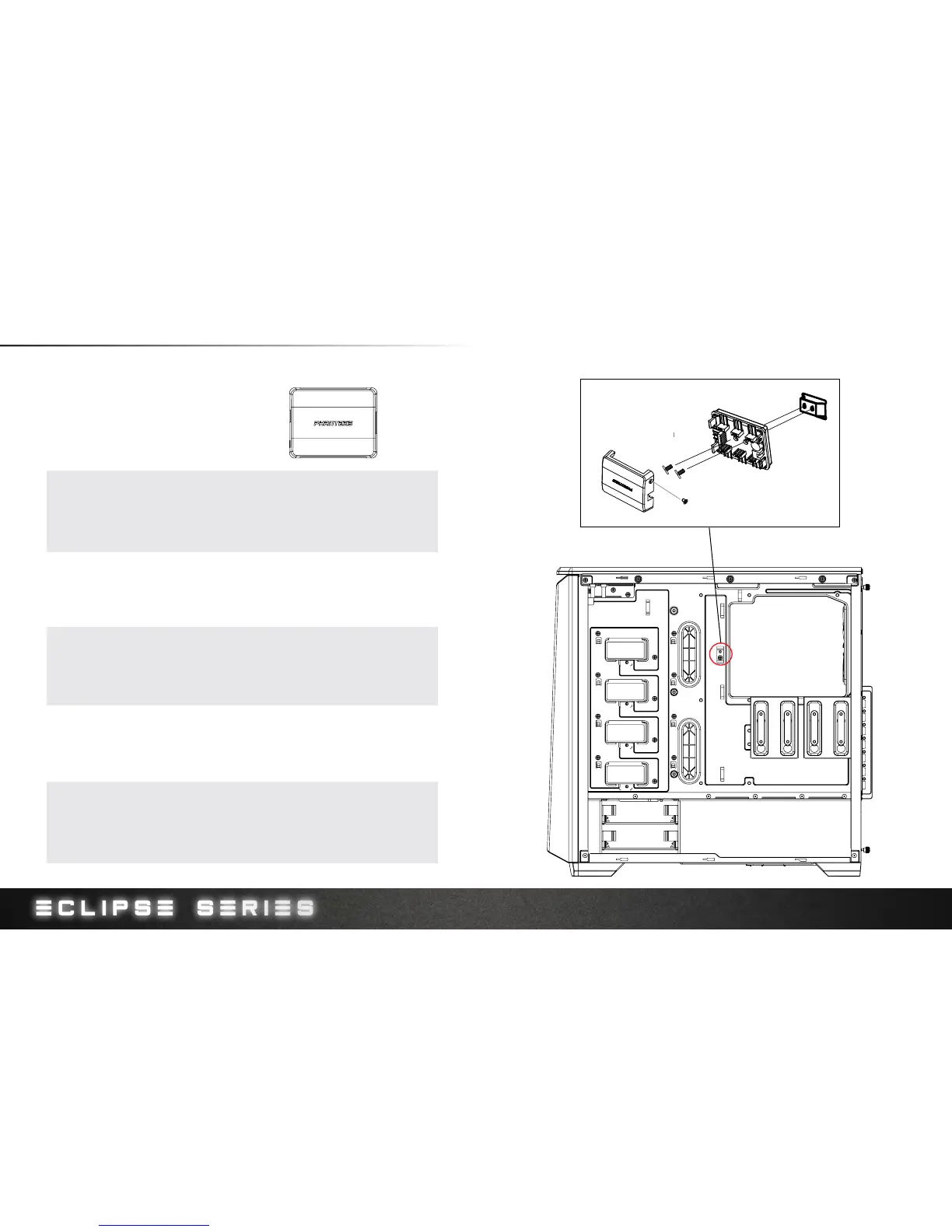

PWM FAN HUB INSTALLATION
Step 1. Unscrew the side screw (A) to open top cover.
Step 2. Place the pwm board (without top cover) onto the mounting area of the
Phanteks chassis.
Step 3. Screw in the 2 included screws
Step 4. Close the top cover and screw in the side screw (A).
A
REQUIREMENTS:
PHANTEKS PWM FAN HUB PH-PWHUB)
NOT INCLUDED
步骤1。拧下侧螺丝(A)打开顶盖。
步骤2。把 pwm 板 (无顶盖) 置于
Phanteks 底盘的安装区域。
步骤3。拧入 2 个随附的螺丝
步骤4。关闭顶盖并拧入侧螺丝(A)。
手順 1. 横のねじ (A) を外し、上部カバーを開きます。
手順 2. pwm ボード (上部のカバーなし) を Phanteks 筐体の取り付け領域に
配置します。
手順 3. 付属の 2 つのねじを外します。
手順 4. 上部のカバーを閉じ、横のねじを留めます (A)。
1단계. 측면 나사 (A)를 풀어 상부 커버를 엽니다.
2단계. pwm 보드(상부 커버 없이)를 Phanteks 섀시의 장착부에
올려놓습니다.
3단계. 제공된 2개의 나사를 조입니다.
4단계. 상부 커버를 닫고 측면 나사 (A)를 조입니다.
1.    (A),    .
2.   - (  )   
  Phanteks.
3.  2    .
4.        (A).

Phanteks eclipse p400s Specifications

General

Type	PC
Material	ABS synthetics, Steel
Form factor	Midi Tower
Side window	Yes
Product color	Black
Maximum PSU length	270 mm
Number of 2.5\" bays	2
Number of 5.25\" bays	-
Maximum CPU cooler height	160 mm
Number of expansion slots	7
Maximum graphics card length	395 mm
Number of internal 3.5\" bays	6
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ATX
USB 2.0 ports quantity	0
Front fans installed	1x 120 mm
Rear fans diameters supported	120 mm
Front fans diameters supported	120, 140 mm
Supported HDD sizes	2.5, 3.5 \
Package depth	520 mm
Package width	300 mm
Package height	555 mm
Package weight	8000 g

Weight and Dimensions

Depth	470 mm
Width	210 mm
Height	465 mm
Weight	7000 g
