Philips 32PHG5102/77 Service Manual

6. Circuit Descriptions
6.1 Introduction
The TPM17.7L LA is a new chassis launched in LATAM in 2017. The whole range is covered by MT5800LUEJ HSFBGA-597 platform. The major deltas
versus its predecessor support NTSC;PAL-M; PAL-N AND ISDB-T with also multi-media, CEC,ARC, SPDIF functionality.
The TPM17.7L LA chassis comes with the following stylings:
 series xxPHG5102/xx
 series xxPHD5102/xx
 series xxPFG5102/xx
 series xxPFD5102/xx
6.1.1 Implementation
Key components of this chassis are:
 SCALER MT5800LUEJ HSFBGA-597
 DEMODULATOR SI2180-B60-GMR QFN-48
 EMMC THGBMDG5D1LBAIT 4GB FBGA153
 AUDIO Amplifier. AD87588-LG48NAY 20W E-LQFP-48
 TUNER LATAM ST53WS-13-E

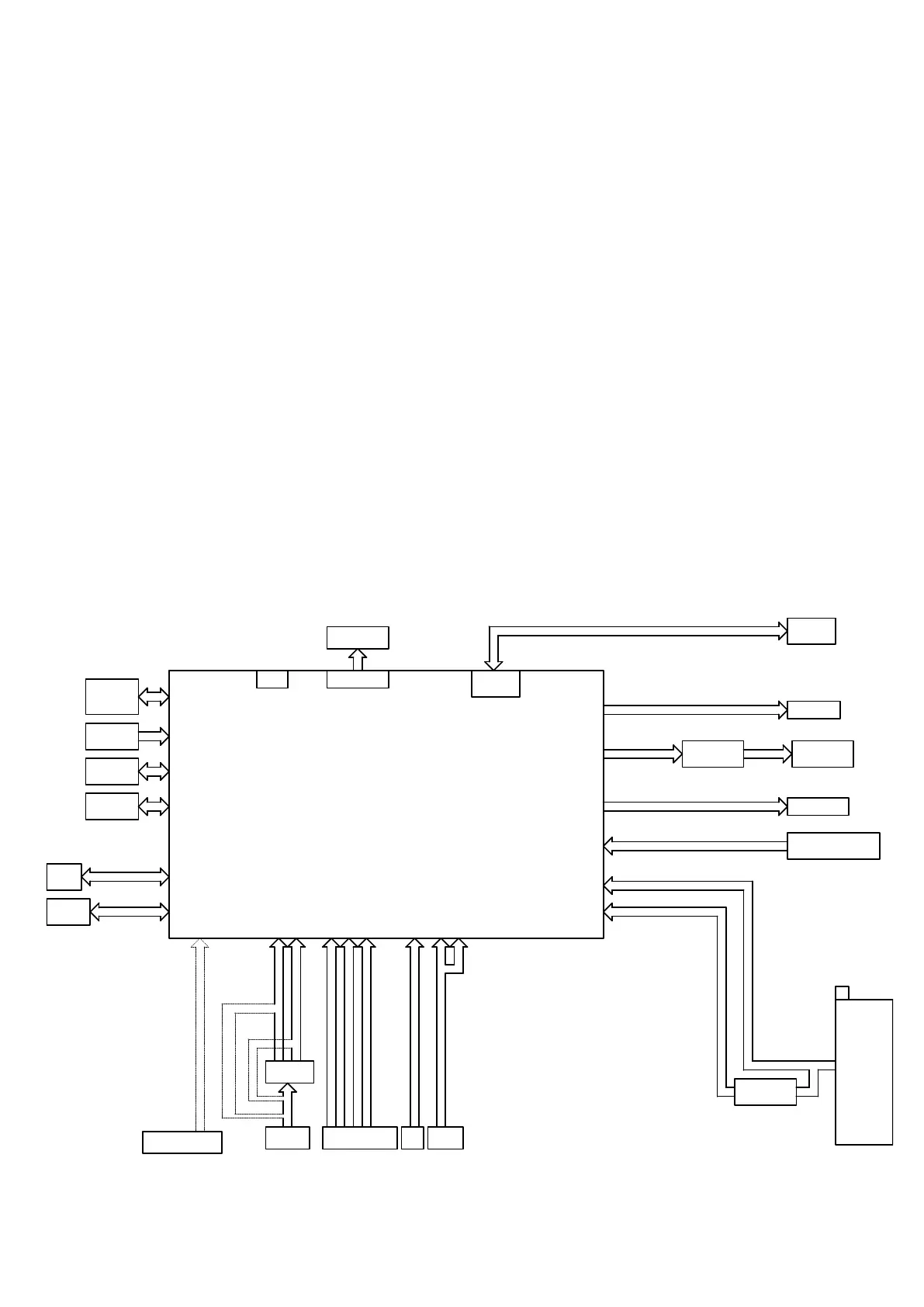

6.1.2 Block diagram
RJ45
IR
SPI
RGB
Flash
ISTB-TB TS
LINE IN
DTV DEMOD
SPEAKER AMP
Main Chip
CVBS
HDMI1
JTAG
UM1
YPbPr1
Tuner AIF+/AIF-
GPIO LVDS Port
Serial
Headphone Out
Flash
LINE IN
USB0/1
DRAM
UART
SPDIF OUT
USB2/3
YPbPr1 HDMI3
Wifi Wafer x1
SPDIF OUT
USB1/2
VGA
HPOUT
Embedded
Eth PHY
HDMI2
EMMC
HDMIx3
LVDS
TUNER
SPEAKER OUT
EMMC INTERFACE
USBx2
USB HUB

Philips 32PHG5102/77 Specifications

General

Screen Size	32 inches
Display Technology	LED
HD Type	HD Ready
Smart TV	No
HDMI Ports	2
USB Ports	1
Audio Output Power (RMS)	16 W
Refresh Rate	60 Hz
Response Time	8 ms
VGA Port	Yes
Headphone Jack	Yes
Energy Class	A+
Resolution	1366 x 768
Digital TV	DVB-T/T2
Weight	4.1 kg
