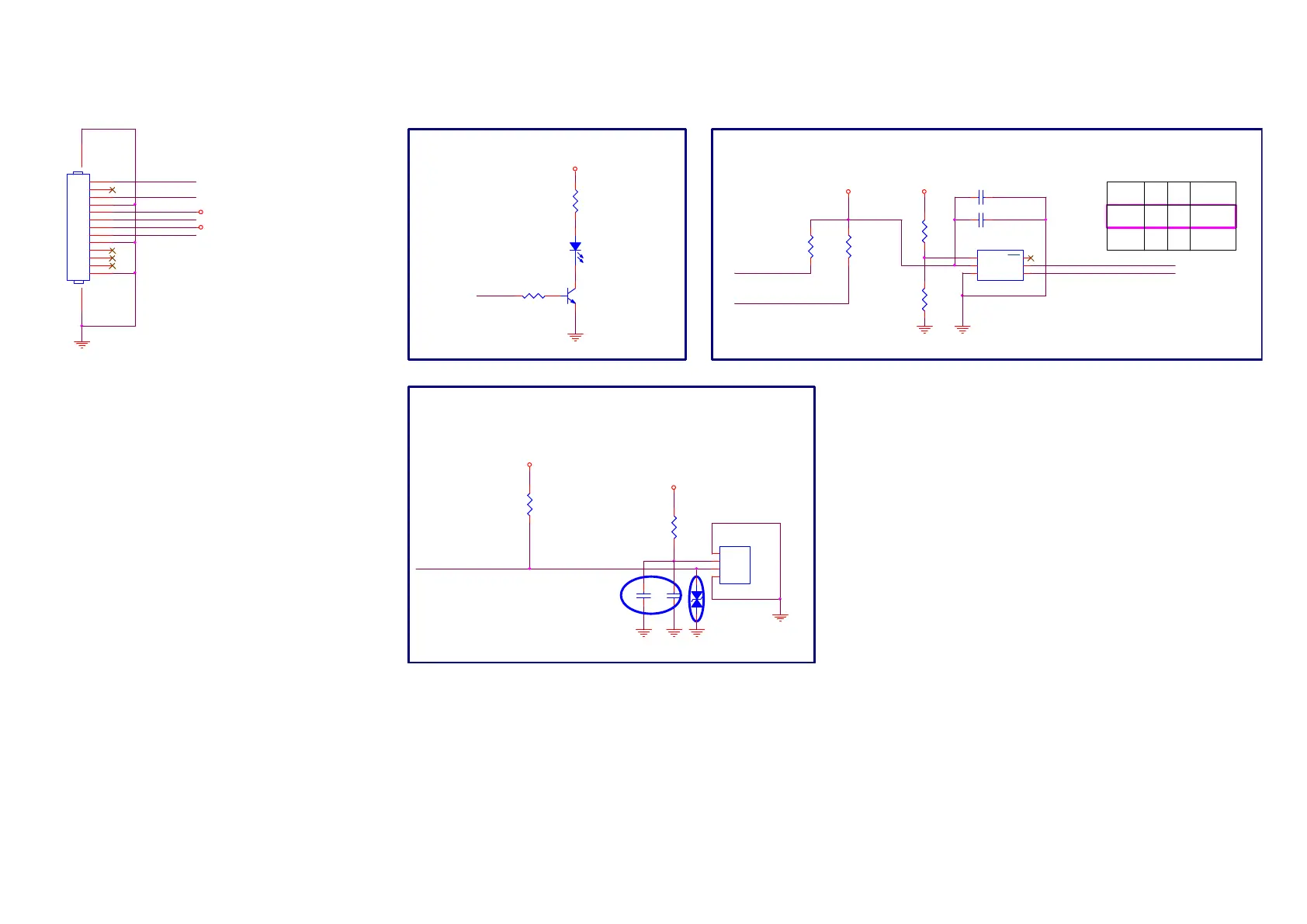

8.5 J 715G8010 IR/LED Panel (For 49” 5102 Series)
8-5-1 IR & LED & Light Sensor
C201
1uF 10V
Standby LED
3V3SB
R204
100R 1/16W 5%
R203
NC/ 2K7 1/16W 5%
RC-IR
RC-IR
3V3SB
LS_SDA
LS_SCL
DVD3V3
LED201
GPSS008RC4
12
Red
DVD3V3
U221
NC/ JSA-1130
ADDR
1
VDD
2
GND
3
SCL
4
SDA
5
INT
6
R224
NC/ 0R05 1/16W
Light Sensor
R222
NC/ 10K 1/16W 5%
Digital Light Sensor
C222 NC/ 1uF 10V
R221
NC/ 10K 1/16W 5%
LS_SCL
LS_SDA
R223
NC/ 0R05 1/16W
JSA-1130
R224 R223
JSA-1130
NC
NC 0R
0R
I2C addr
0x45
0x44
C221 NC/ 100N 16V
LS_SDA
LS_SCL
DVD3V3
C202
1uF 10V
Close to U201
Close to U201
IR Receiver
3V3SB
R202
1K 1/16W 5%
LED_R
Q201
BC847BW
LED_R
CN201
CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
1415
R201
100R 1/16W 5%
ZD201
MLVG0402
12
U201
TSOP75436TR
GND
1
VCC
2
Vout
3
GND
4
3V3SB
