3.2 Assembly/Panel Removal
3.2.1 Stand/Base removal
Common:

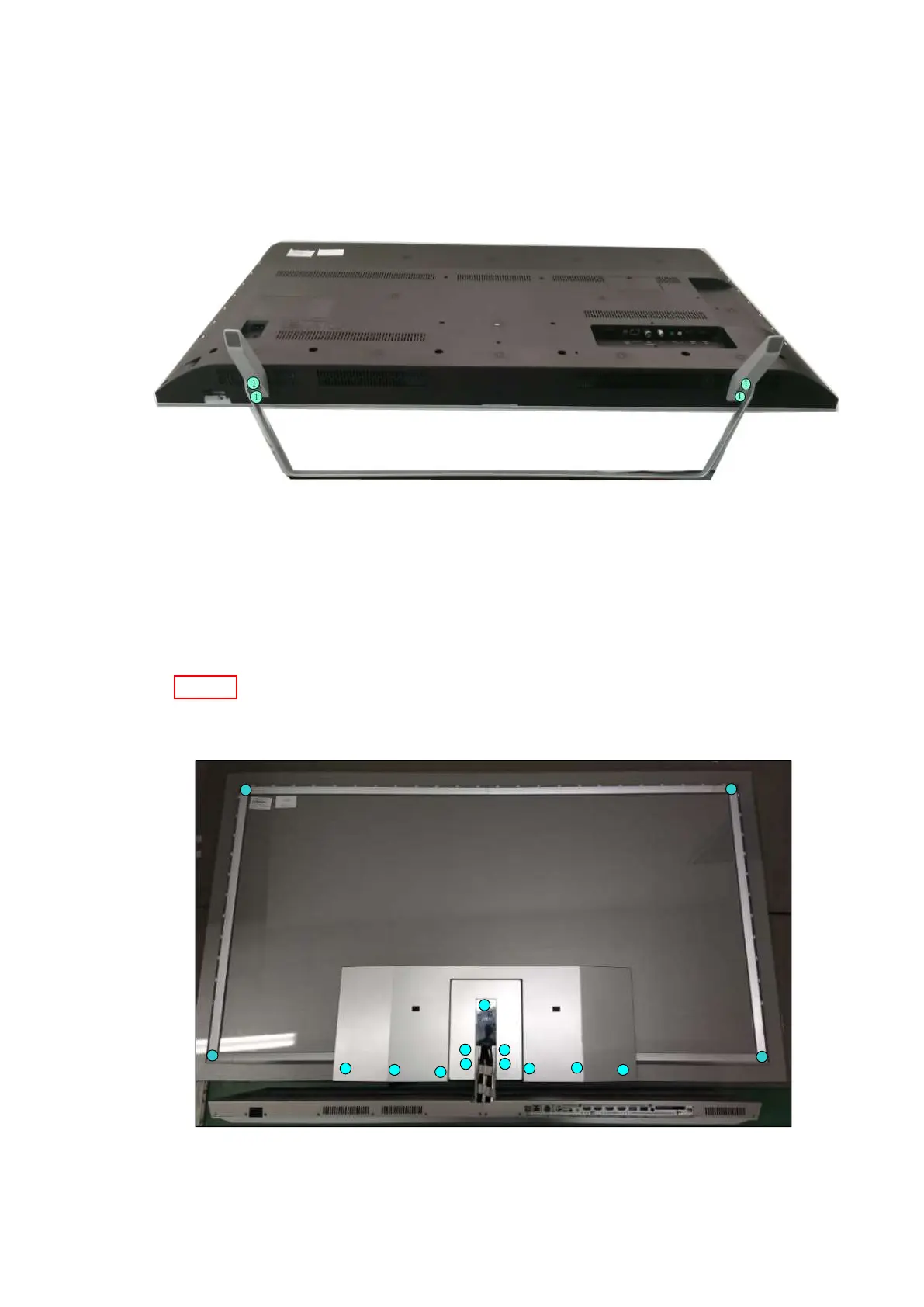

1. Remove the fixation screws [1] that secure the stand.
2. Take the stand bracket out from the set.
OLED 973 Series:
1. Remove all fixation screws [1] then take out rear cover.
2. Remove all fixation screws [2] & plastics.
3. Hold the base then remove all fixation screws [3], take out all iron bracket.
4. Unplug all connectors, then take the base ass’y out from the set.
5. Remove all fixation screws [4] then take the base out.
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
