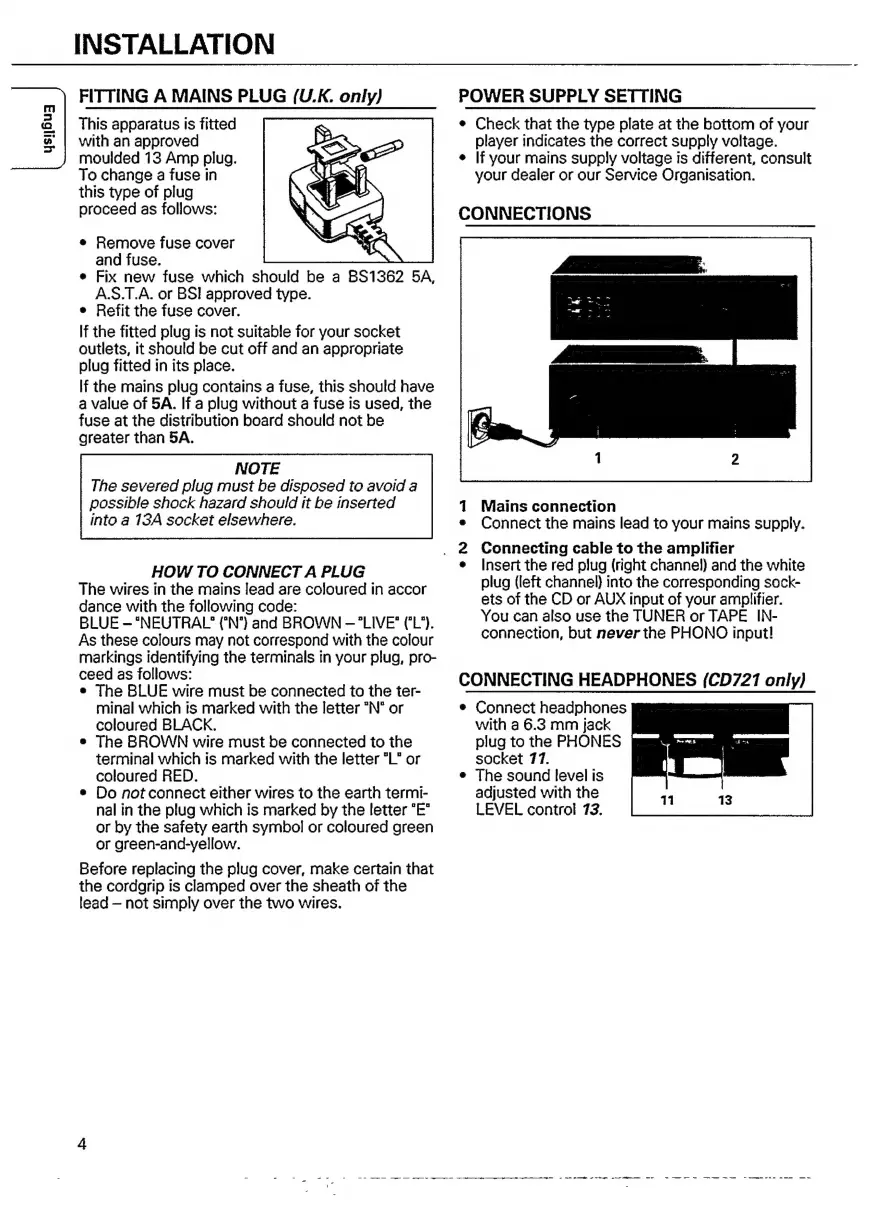

INSTALLATION
FITTING A MAINS PLUG (U.K. only)
This apparatus Is fitted
with an approved
moulded 13 Amp plug.
To change a fuse in
this type of plug
proceed as follows:
e Remove fuse cover
and fuse.
e Fix new fuse which should be a BS1362 5A,
A.S.T.A. or BSI approved type.
e Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should have
a value of 5A. If a plug without a fuse is used, the
fuse at the distribution board should not be
greater than 5A.
NOTE
The severed plug must be disposed to avoid a
possible shock hazard should it be inserted
into a 13A socket elsewhere.
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in accor
dance with the following code:
BLUE — “NEUTRAL? (°N*) and BROWN —°LIVE’ (’L’).
As these colours may not correspond with the colour
markings identifying the terminals in your plug, pro-
ceed as follows:
e The BLUE wire must be connected to the ter-
minal which ts marked with the letter "N° or
coloured BLACK.
e The BROWN wire must be connected to the
terminal which is marked with the letter °L’ or
coloured RED.
e Do not connect either wires to the earth termi-
nal in the plug which is marked by the letter "E*
or by the safety earth symbol or coloured green
or green-and-yellow.
Before replacing the plug cover, make certain that
the cordgrip is clamped over the sheath of the
lead — not simply over the two wires.
en
POWER SUPPLY SETTING
¢ Check that the type plate at the bottom of your
player indicates the correct supply voltage.
e lf your mains supply voltage is different, consult
your dealer or our Service Organisation.
CONNECTIONS
mh Mains connection
Connect the mains lead to your mains supply.
Connecting cable to the amplifier
Insert the red plug (right channel!) and the white
plug (left channel) into the corresponding sock-
ets of the CD or AUX input of your amplifier.
You can also use the TUNER or TAPE IN-
connection, but never the PHONO input!
CONNECTING HEADPHONES (CD727 only)
e Connect headphones
with a 6.3 mm jack
plug to the PHONES
socket 77.
e The sound level is
adjusted with the
LEVEL control 73.
ee ee eee
— + ~
ep ee ee
