Step 4: Connecting TV
IMPORTANT!
– You only need to make one
video connection from the following
options, depending on the
capabilities of your TV system.
– Connect the DVD system
directly to the TV.
– Scart (RGB) Video connection
provides better picture quality than
S-Video. These options must be
available on your TV.
– If both S-Video and Scart video
connections are used to connect to
your TV, the TV signal will detect
automatically to SCART when you
power up the DVD system.
~AC
MAINS
FRONT
RIGHT
CENTER
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
SUB-
W
SPEAKERS (4 )
AUX IN
LINE OUT
AUDIO
L
R
L
R
S-VIDEO
MW
FM/MW ANTEN
N
FM
SCART
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
OR

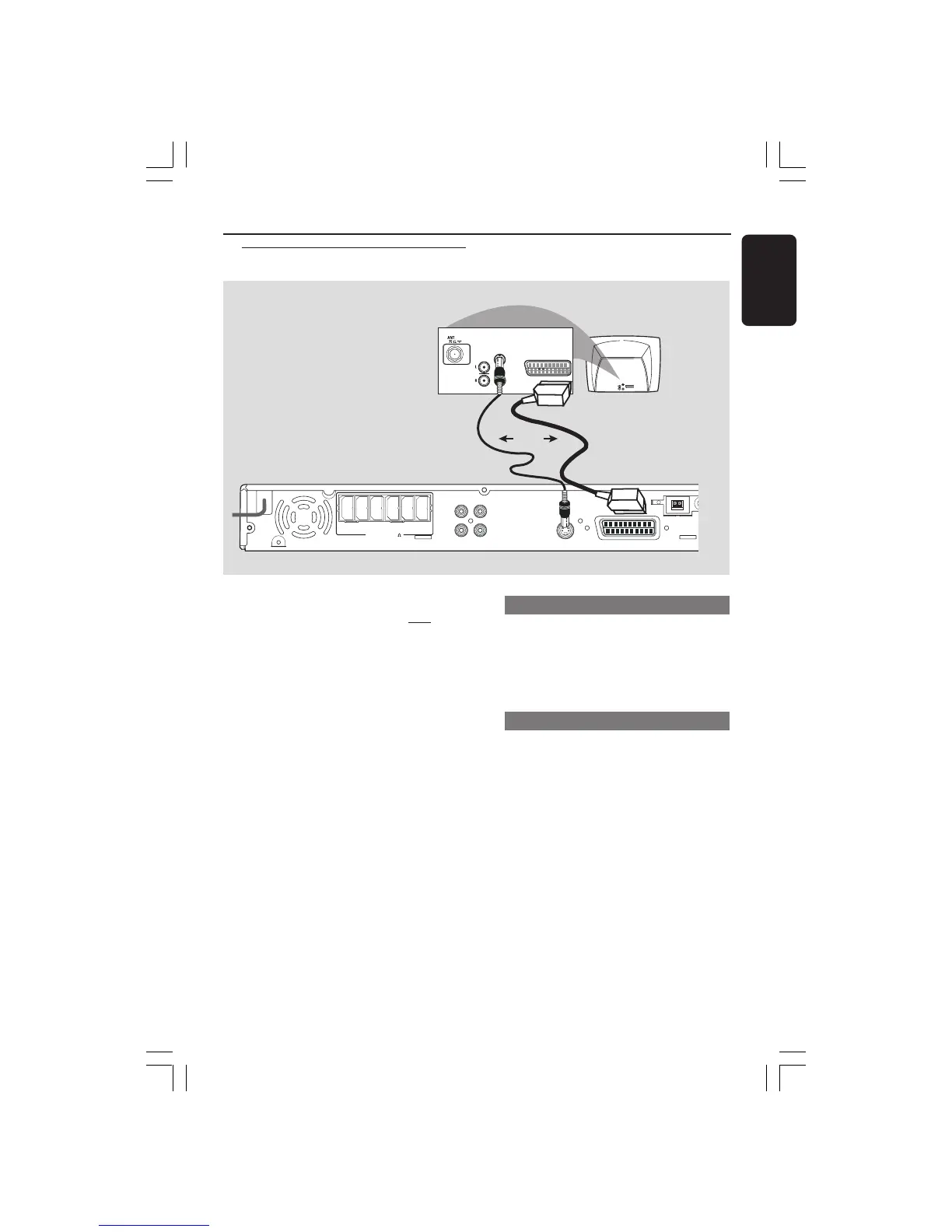

Connections
Using Scart jack
● Use the scart video cable (black) to
connect the DVD system’s SCART
OUT jack to the corresponding Scart
input jacks on the TV.
OR
Using S-Video jack
● Use the S-video cable (not supplied) to
connect the DVD system’s S-VIDEO
OUT jack to the S-Video input jack (or
labeled as Y/C or S-VHS) on the TV.
