Connections (Optional)
Connecting a VCR
~AC
MAINS
FRONT
RIGHT
CENTER
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
SUB-
W
SPEAKERS (4 )
AUX IN
LINE OUT
AUDIO
L
R
L
R
S-VIDEO
MW
FM/MW ANTENNA
FM 75
SCART
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
SCART IN
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
2
4
3
1
ANT IN
TO TV
~ AC MAINS
SCART IN
S-VIDEO
VCR
Viewing and listening to the
playback

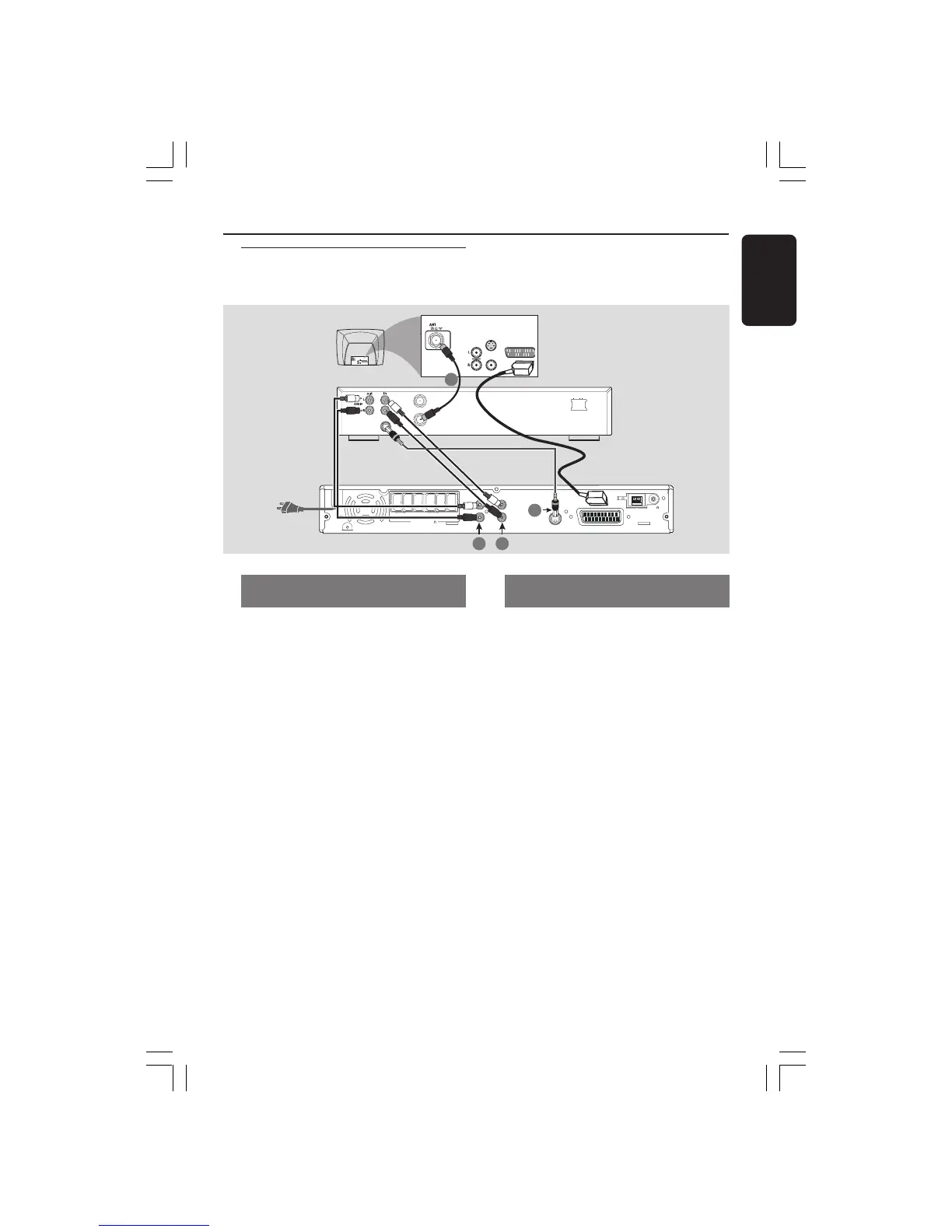

1 Connect the VCR to the TV as shown.
2 Connect the DVD system’s AUX IN
(R/L) jacks to the AUDIO OUT jacks on
the VCR.
Before starting operation, press AUX on
the remote to select “AUX” in order to
activate the input source.
Using the VCR for recording DVD
playback
Some DVDs are copy-protected. You
cannot record or dub protected discs
using a VCR.
3 Connect the DVD system’s S-VIDEO
jack to the S-VIDEO IN jack on the VCR.
4 Connect the DVD system’s LINE OUT
(R/L) jacks to the AUDIO IN jacks on
the VCR.
This will allow you to make analogue
stereo (two channel, right and left)
recordings.
To view DVD playback while
recording,
you must connect the DVD system to
your TV using the SCART (as shown
above) connection.
001-041-LX36-22-Eng 21/08/2003, 9:44 AM13
