Philips VE8 User Manual

34Q529.1A LA 6.
Block Diagrams, Test Point Overview, and Waveforms

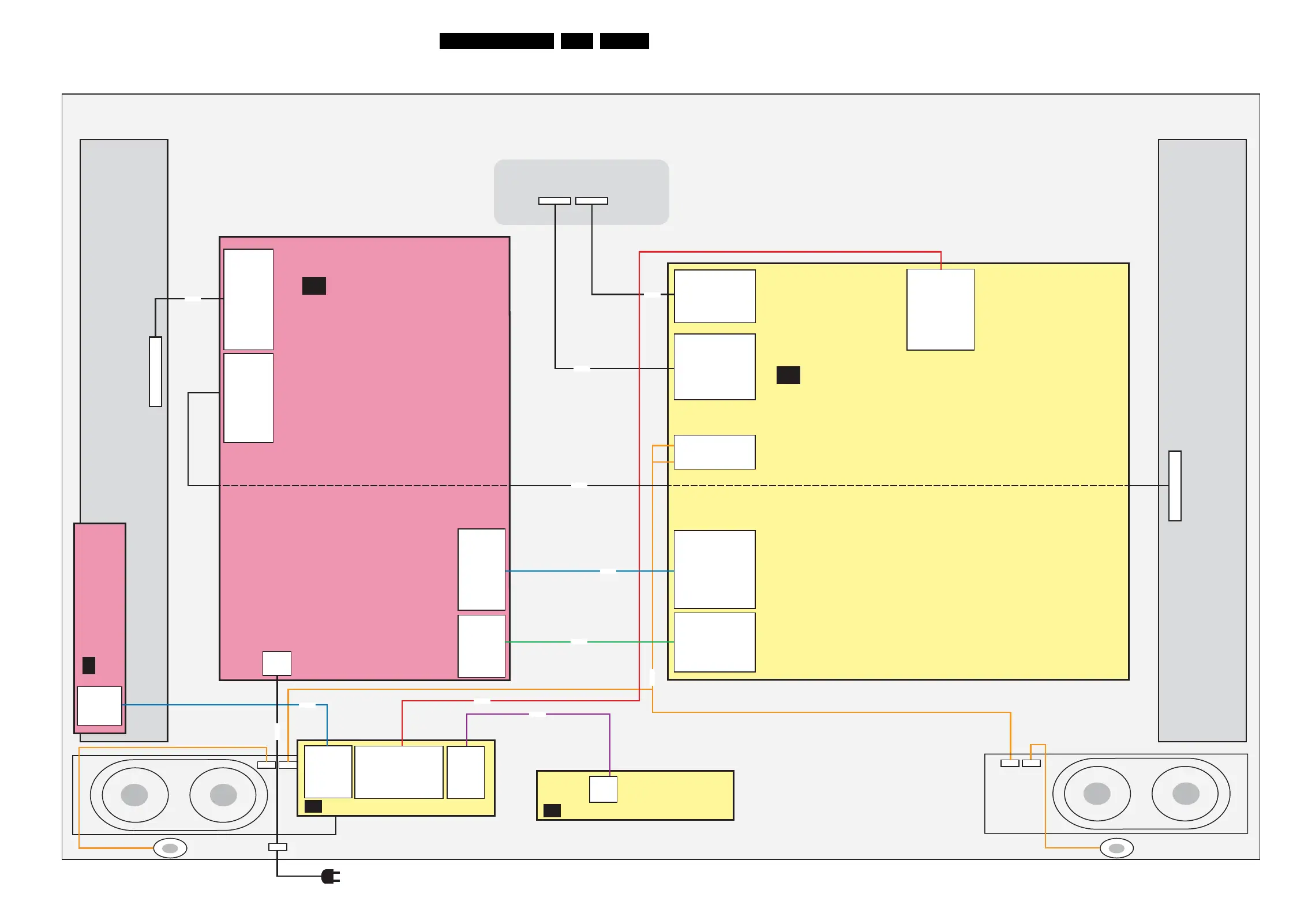

Wiring Diagram 52" (VE8)
INVERTER
LCD DISPLAY (1004)
I_17670_012.eps
250408
J1
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
WIRING DIAGRAM 52” (STYLING VE8)
CONTROL BOARD TACT SW (1110)
E
+ -
+ -
1M99
8. N.C.
7. BOOST
6. DIM
5. LAMP ON/OFF
4. GND
3. GND
2. +12V
1. +12V
1308 2. L 1. N
1M95
11. -VSND
10. GND-SND
9. +VSND
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. 3V3-STANDBY
1M99 (B01B)
8. BACKLIGHT-PWM-ANA-DISP
7. BACKLIGHT_BOOST
6. BACKLIGHT-OUT
5. LAMP-ONOFF
4. GND
3. GND
2. +12VD
1. +12VD
1M95 (B01B)
11. -AUDIO-POWER
10. GND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STBY
1M20
(B06B)
1. LIGHT_SENSOR 2. GND 3. RC 4. LED2 5. +3V3STBY 6. LED1 7. KEYBOARD 8. +5V 9. N.C.
1735 (B10A)
4. RIGHT-SPEAKER
3. -SPEAKER-POWER
2. -SPEAKER-POWER
1. LEFT-SPEAKER
1G51 (B05E)
1. +VDISP1
2. +VDISP1
4. +VDISP1
47. BACKLIGHT-OUT
48. LAMP-ON-OUT
49. SCL-DISP
50. SDA_DISP
51. GND
SSB
(1111)
B
1G50 (B05E)
1. SCL-DISP
2 SDA-DISP
38. +VDISP2
39. +VDISP2
40. +VDISP2
41. +VDISP2
1M20 9. TACTSWITCH 8. +5V2 7. KEYBOARD 6. LED1 5. +3V3-STBY 4. LED2 3. RC 2. GND 1. LIGHT-SENSOR
1M01 4. ACT_SWITCH 3. GND 2. KEYBOARD 1. GND
LEFT SPEAKER (5213)
IR LED PANEL
(1112)
J
1P09 1. LED1 2. +5V2 3. GND
LIGHT GUIDE PANEL (1119)
LIGHT
L
1P09 3. GND 2. +5V2 1. LED1
RIGHT SPEAKER (5214)
8101
8735
8120
INLET
8395
8399
8109
8150
8408
8151
MAIN POWER SUPPLY
(1050)
A
51P
41P
+ -
+ -
TWEETER (5215) TWEETER (5216)
CN2 / 1319
14. PDIM_Select
13. PWM
12. On/Off
11. Vbri
10. GND3
9. GND3
8. GND3
7. GND3
6. GND3
5. 24Vinv
4. 24Vinv
3. 24Vinv
2. 24Vinv
1. 24Vinv
CN3 / 1316
12. N.C.
11. N.C.
10. GND3
9. GND3
8. GND3
7. GND3
6. GND3
5. 24Vinv
4. 24Vinv
3. 24Vinv
2. 24Vinv
1. 24Vinv
14P
INVERTER
8316
12P
8319
