STEERING WHEEL AND SUPPORTING BALL BEARING (STEERING WHEEL VERSION) - RE-
MOVAL
Undo the lower locking nut and slide off the steering wheel. First remove the retaining circlip with the
specific pliers and then push out the ball bearing with a 28 mm inside diameter punch.
Specific tooling
T.0022465 Pliers for circlips
STEERING WHEEL - BALL BEARING - FITTING
For the fitting, operate inversely to that described for the removal; replace the ball bearing on the steering
gear box, the bearing retaining circlip with the specific pliers, and insert the steering wheel, locking it
with the corresponding nut (tightening torque 30 to 35 N m. 3 to 3.5 kgm.).
Specific tooling
0023638 Pliers for circlips
STEERING HOUSING - RACK - STEERING CONTROL LEVER - STEERING WHEEL VERSION -
FITTING

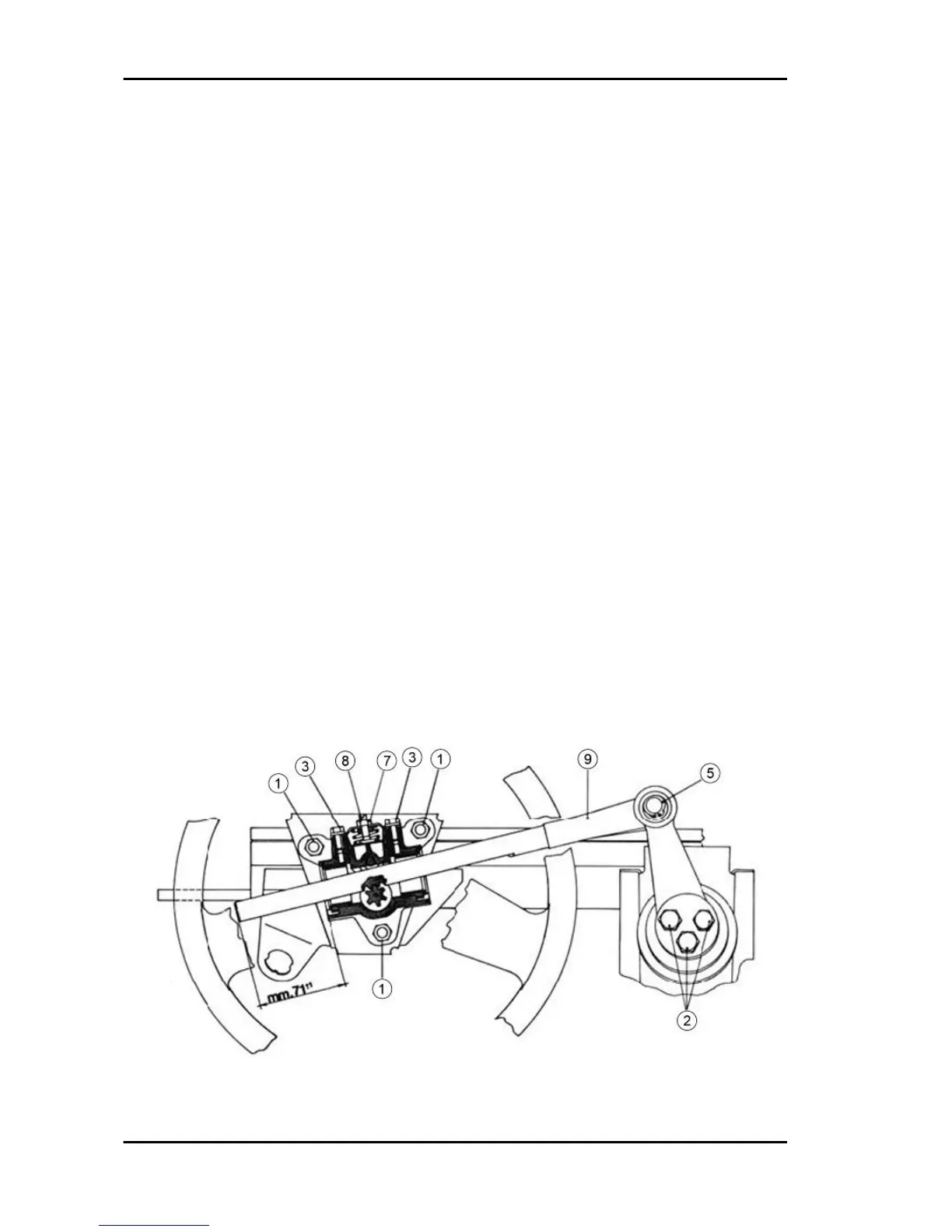

Fit the presser unit consisting of roller, roller support, washer, spring, etc., and fasten the cover with the
two screws (3) tightened to the prescribed torque. Unlock the locknut (7) and take the adjustment screw
(8) to the end of stroke (by unscrewing it), then place the steering housing on the dashboard and lock
it with 3 nuts (1) to the specified torque.
Locking torques (N*m)
Steering housing lock nuts 20 - 25
Steering column APE TM Benzina
SC - 106
