For the overhaul of the front suspension, it is essential to proceed to some changes to the specific tool
of the particular components, with the addition of the new specific components 20-21-22.
Specific tooling
19.1.20000 Tool for front suspension overhaul
KEY:
* = Grease.

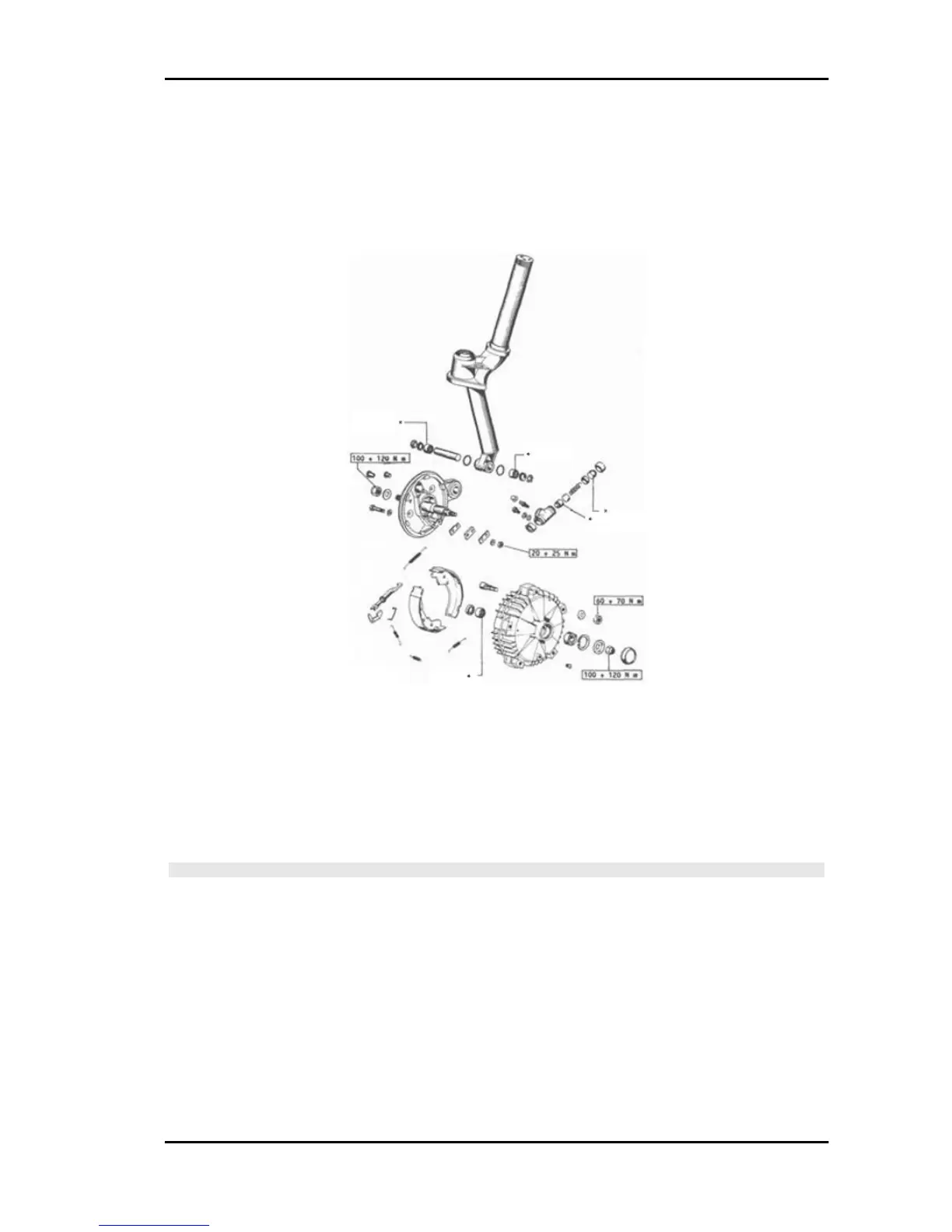

The overhaul operation of the steering-front suspension unit is essentially needed to replace parts (pin
- roller bushing - sealing rings and dust guard assembly) that connect the steering tube and the swinging
arm of the front wheel holder. It is carried out using a special tool to be operated with the necessary
use of a hydraulic press with minimum power of 10 t.
N.B.
BEFORE CARRYING OUT THE OVERHAUL AS MENTIONED ABOVE, MAKE SURE THAT THE
STEERING TUBE AND THE SWINGING ARM, WITH SPECIAL ATTENTION TO THE AREA WHERE
THE NEEDLE BEARING WORKS ON THE WHEEL SHAFT, ARE IN TOP CONDITION; IN FACT,
ONLY THEN THE SERVICE IS JUSTIFIABLE
MORE OVER, KEEP IN MIND THAT, WHEN THE STEERING TUBE IS DEFORMED, IT MUST AL-
WAYS BE REPLACED WITH A NEW ONE.
Specific tooling
19.1.20000 Tool for front suspension overhaul
APE TM Benzina Suspensions
SS - 119
