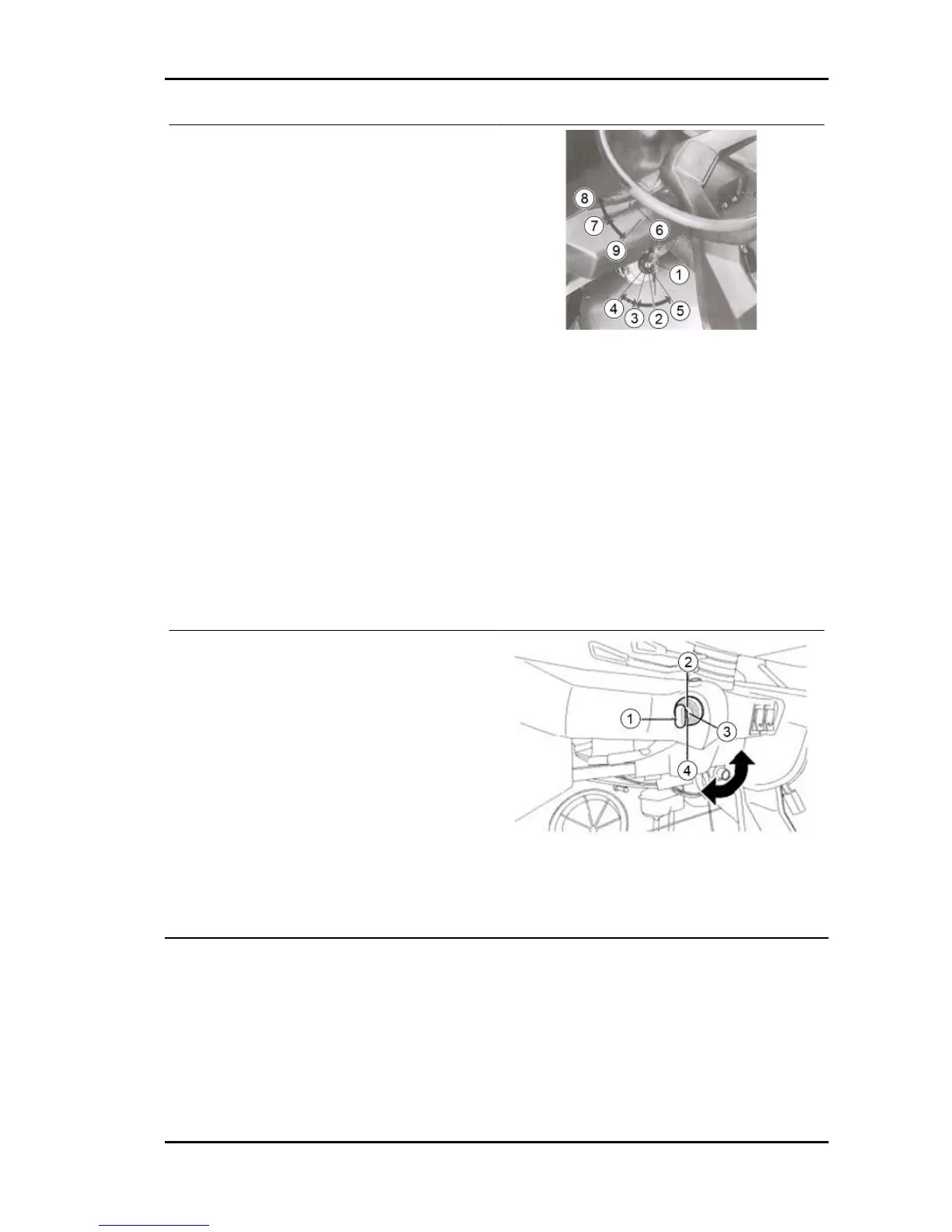

APE P703V (VERSION WITH STEERING
WHEEL)
Positions of the switch "1".
2: Everything turned off - Extractable key - Con-
tacts 30/1-15 coil feeder grounded electronic de-
vice - Current to audible warning device, wind-
screen wipers and internal light.
3: Engine starter - arrangement of utilities and ex-
ternal lights - Contacts 30 - INT. - 30 - 16. Current
to audible warning device, windscreen wipers and
internal light.
4: Engine starter - Non-extractable key with return
to position "3" - Contacts 30 - 16, 30 -INT. and 30
- 50.
5: Arrangement of utilities and external lights
(Night parking) - Extractable key - Contacts 30 -
INT. and 30/1 - 15.
Current to audible warning device, windscreen
wiper and internal light.
APE TM P703 FL2 (VERSION WITH STEERING
WHEEL)
Positions of the switch "1".
2 = Ignition off, key can be removed, steering
locked. Contacts 15- 30/1.
3 = Running position arrangement of utilities and
external lights - contacts 30 - INT.
4 = Engine start-up The position is marked with the
"START" logo. Once the engine starts, the key
moves back to the running position "3" - contacts
30 - INT and 30 - 50.
APE TM Benzina Electrical system
ES - 57
