THE DETECTION SHALL BE MADE WITH REGULATOR ACTIVATED.
ALTERNATOR BOSCH TYPE AND EFEL TYPE
EXTERNAL CHARACTERISTICS CONTROL

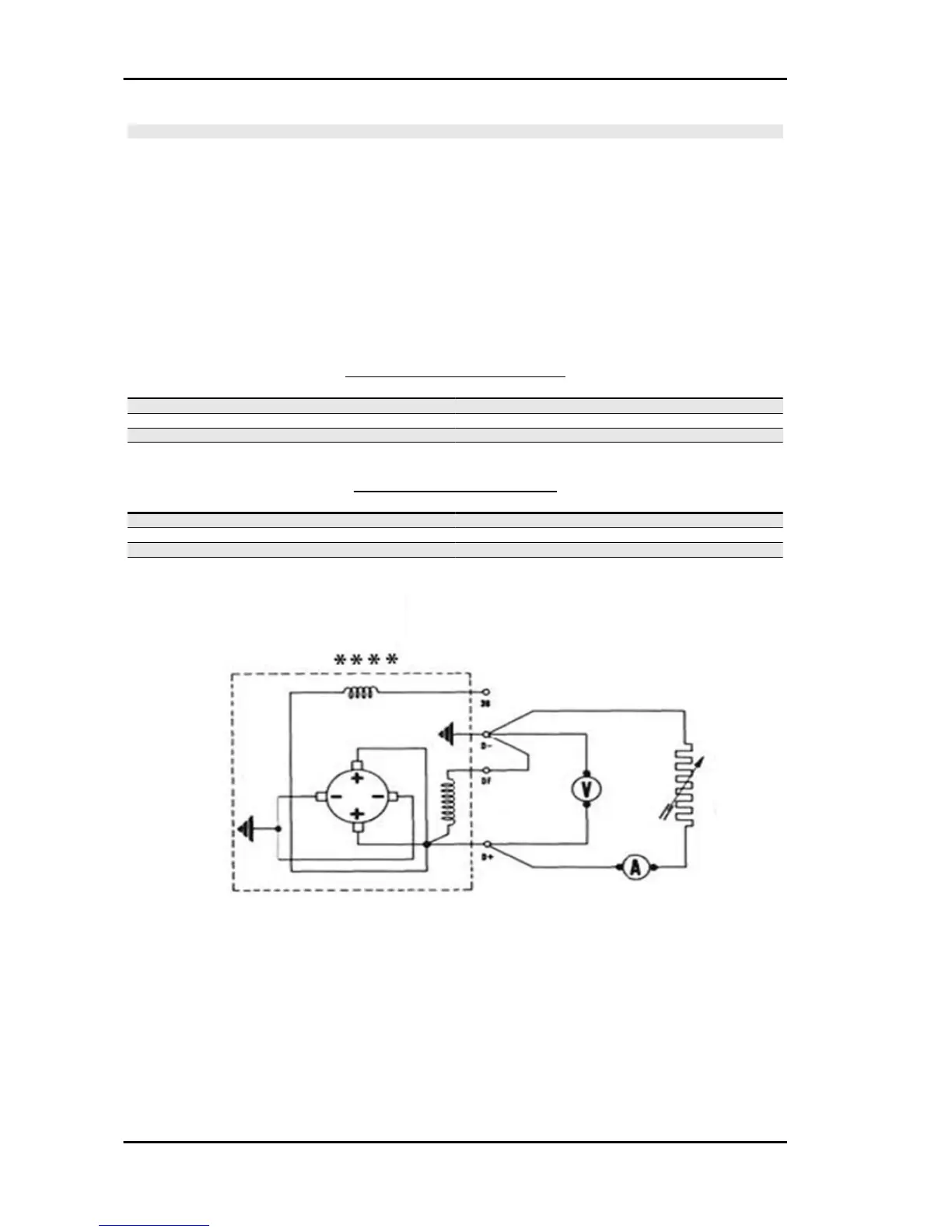

Make the electrical circuit diagram, proceeding as follows:
maintain, on variable resistive load, a constant voltage of 13.5 V at full excitation and after thermal
stabilisation, which can be achieved through the operation of the alternator to the supply of 90W for 15',
proceed to detect the characteristic values of the external alternator, which must be those indicated in
the respective tables:
BOSCH TYPE ALTERNATOR
Specification Desc./Quantity
Number of revolutions - Power 3850 revolutions ~ 10 W.
Number of revolutions - Power 3900 revolutions ~ 50 W.
Number of revolutions - Power 4000 revolutions ~ 90 W.
Number of revolutions - Power 4100 revolutions ~ 130 W.
EFEL TYPE ALTERNATOR
Specification Desc./Quantity
Number of revolutions - Power 3350 revolutions ~ 10 W.
Number of revolutions - Power 3400 revolutions ~ 50 W.
Number of revolutions - Power 3500 revolutions ~ 90 W.
Number of revolutions - Power 3600 revolutions ~ 130 W.
KEY:
****= Dynamotor
BOSCH TYPE AND EFEL TYPE VOLTAGE REGULATOR
ADJUSTMENT CHARACTERISTICS CONTROL
Electrical system APE TM Benzina
ES - 66
