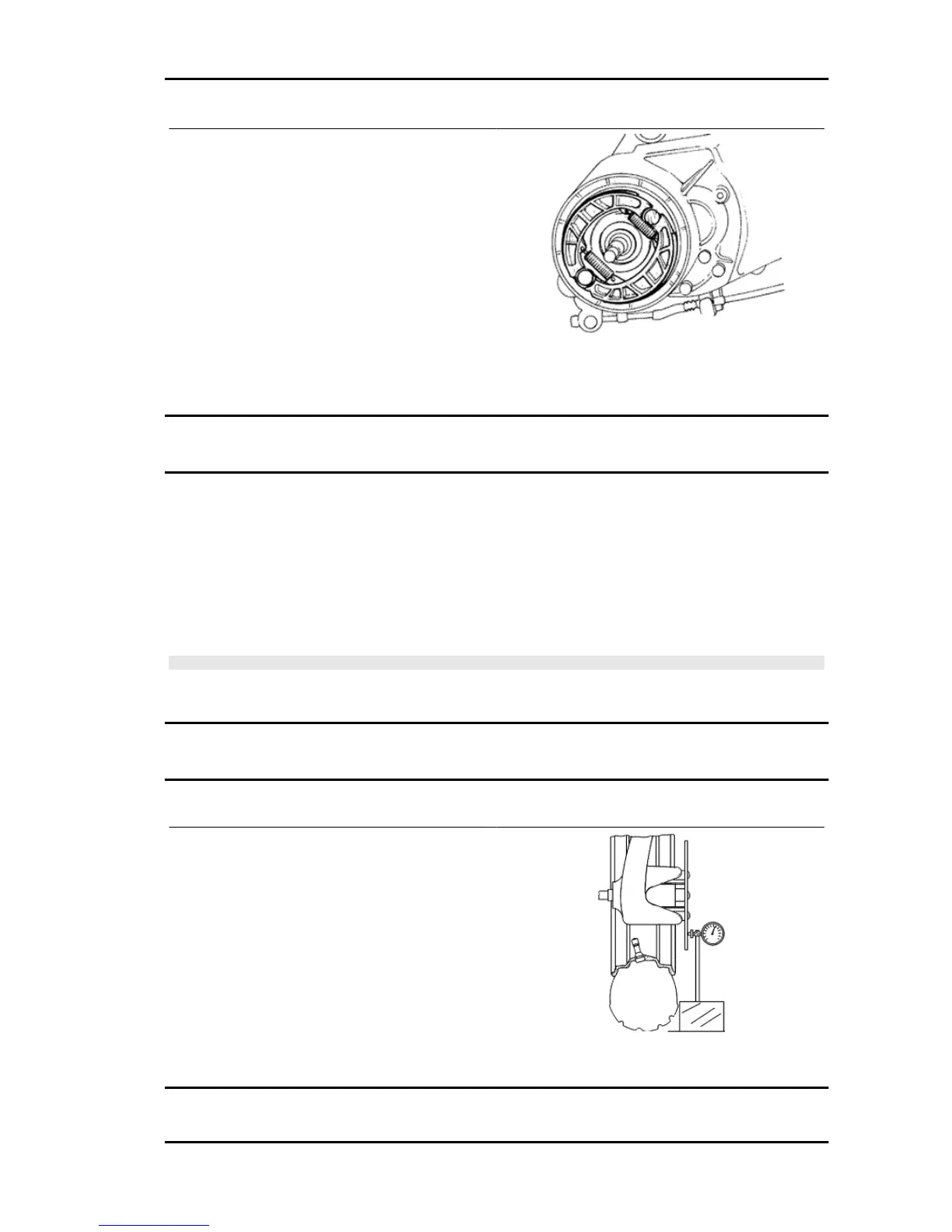

Once the muffler and the wheel have been re-
moved, follow these steps:
1.Remove the shoe spring using the specific span-
ner.
2. Remove the shoe with the aid of a lever.
3. Refit the new shoes giving a few taps with the
mallet.
4. Attach the spring using the specific pliers.
Specific tooling
020325Y Pliers for brake-shoe springs
Front brake calliper
Overhaul
- Remove the calliper assembling bolts and take out the internal bodies and components. If necessary,
in order to make it easier to take out the plungers, inject (shorts blasts of) compressed air through the
brake fluid pipe.
- Check that the cylinders of the internal and external body of the calliper do not show scratches or signs
of erosion; otherwise, replace the entire calliper.
CAUTION
ALL THE INTERNAL COMPONENTS MUST BE REPLACED EVERY TIME THE CALLIPER IS
SERVICED.
Front brake disc
Disc Inspection
- Remove the wheel and check for unevenness of
the disc.
Maximum permissible out of true is 0.1 mm. If the
value measured is greater, fit a new disc and re-
peat the check.
- If the problem persists, check and replace the
wheel rim if necessary.
Specific tooling
020335Y Magnetic mounting for dial gauge
Fly Braking system
BRAK SYS - 101
