CONTROLS
12

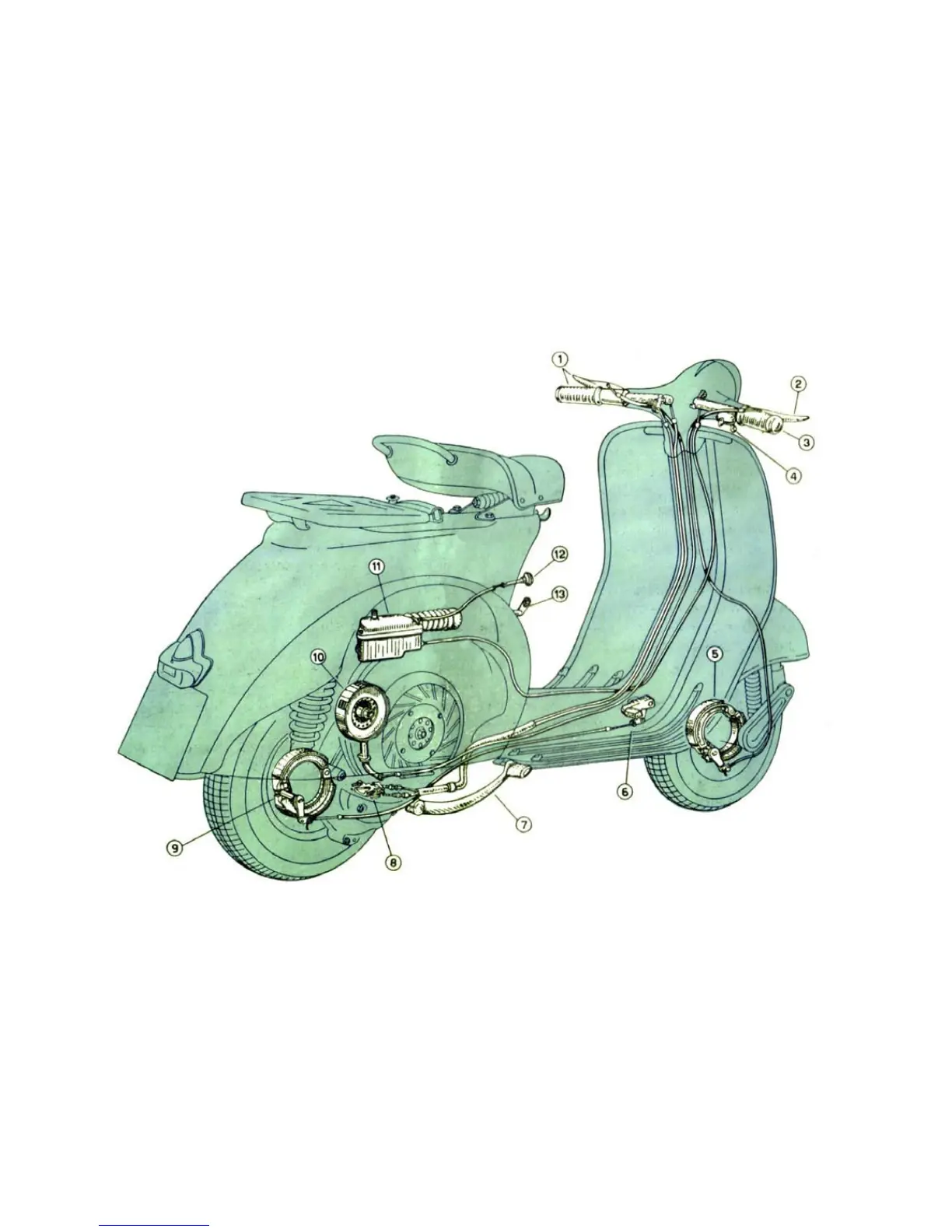

Fig. 8 - Controls
1. Gear change twist grip with clutch control lever 2. Front brake lever 3. Throttle control grip
4. Light and dip switch 5. Front brake shoes 6. Rear brake pedal 7. Kick-starter
8. Gear shifter 9. Rear brake shoes 10. Clutch 11. Carburetor/air cleaner
12. Starter device control lever 13. Fuel tap.
