PIAGGIO X8 125 User Manual

03_27
Fuses (03_27)
Protection of the various circuits comprising the electrical system is provided by a total
of nine fuses, distributed among two fuse-holders, both located inside the battery
compartment.

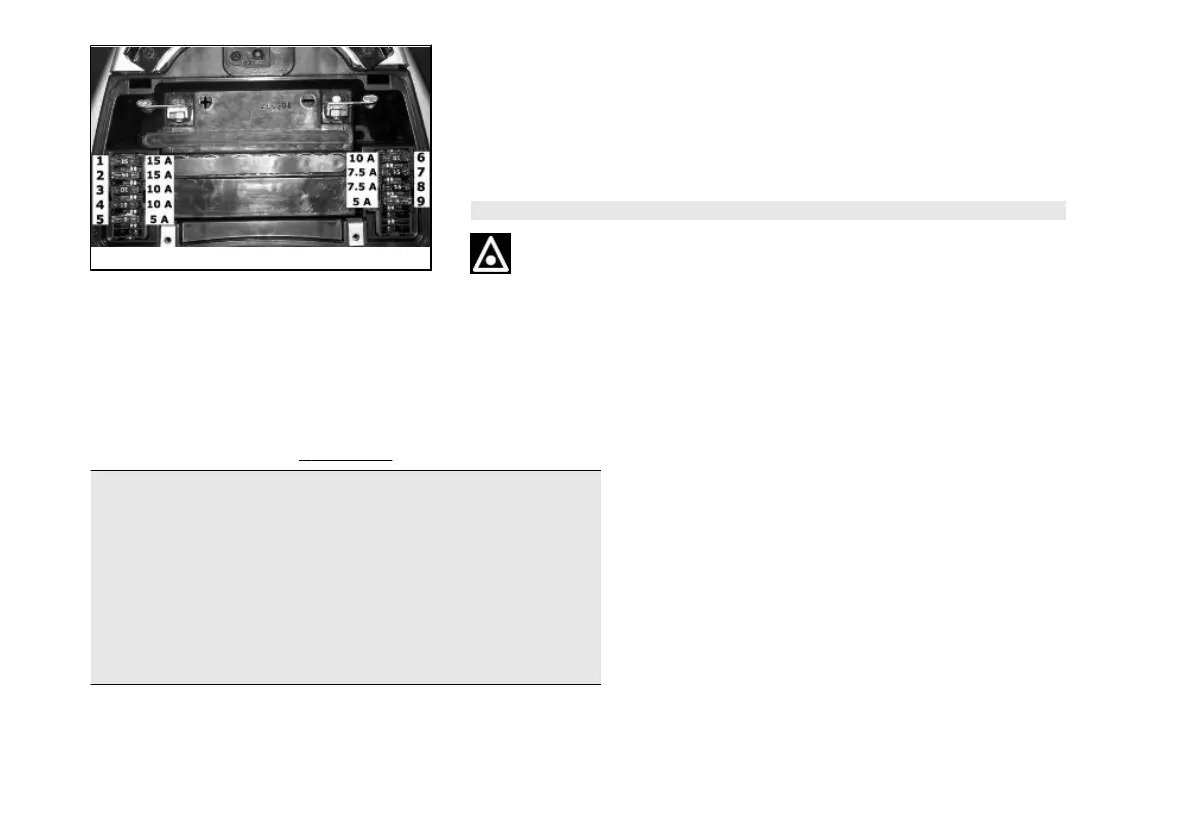

The table below shows the location and specifications of each of the fuses equipping
the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE THE FAILURE THAT
CAUSED IT TO BLOW. NEVER TRY TO REPLACE THE FUSE WITH ANY OTHER
MATERIAL (E.G., A PIECE OF ELECTRIC WIRE).
FUSE TABLE
Fuse No. 1 Position on fuse holder:1
Capacity: 15A
Protected circuits: Socket
12V-180W for users - Helmet
compartment light- Glove-box/seat
open light
Location:Battery compartment
(on LHS)
Fuse No. 2 Position on fuse holder: 2
Capacity: 15A
56
3 Maintenance

PIAGGIO X8 125 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	124 cc
Cooling System	Liquid cooled
Transmission	Automatic CVT
Fuel System	Carburetor
Fuel Capacity	12 liters
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Front Brake	Disc
Front Tire	120/70-14
Rear Tire	130/70-12
Seat Height	790 mm
