Controls and displays 03
9
En
English
DeutschFrançais
Nederlands
Italiano Español Русский

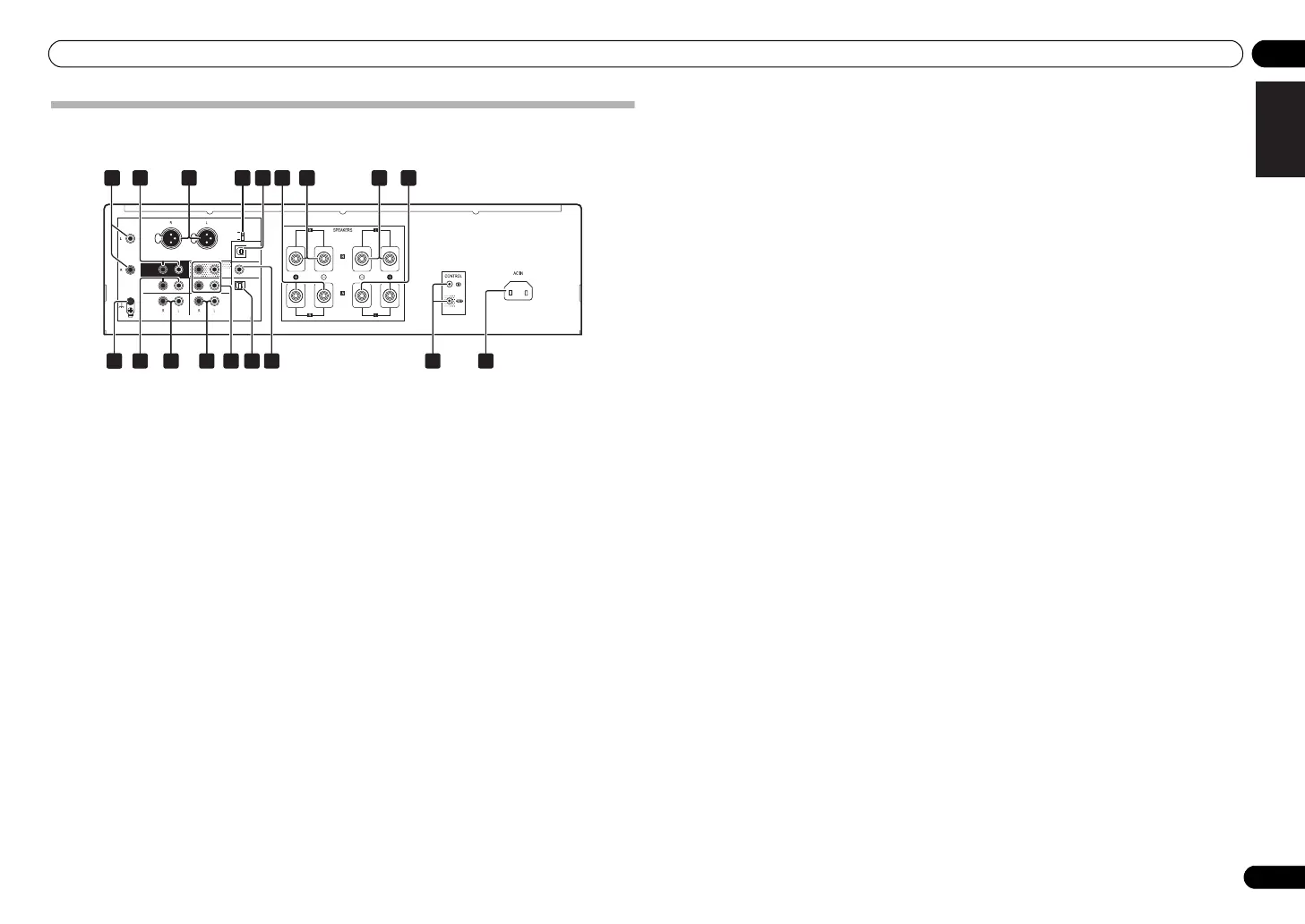

Rear panel
See pages 5-7 for details regarding connections.
1
PHONO IN (MM/MC)
terminals
(A-70DA)
PHONO IN (MM) terminals (A-50DA)
2
POWER AMP DIRECT
IN
terminals
When using the unit as a power amplifier, connect the
pre-amplifier here (page 11).
3 BALANCED
IN
terminals (A-70DA only)
4 Phase selector switch (A-70DA only)
Switches the phase of the BALANCED IN terminals.
5
DIGITAL IN USB
terminal
6
SPEAKERS A
terminals (Right channel)
7
SPEAKERS B
terminals (Right channel)
8
SPEAKERS B
terminals (Left channel)
9
SPEAKERS A
terminals (Left channel)
10 GND (Turntable ground) terminal
This ground terminal is designed to help reduce noise
when a turntable is connected. It is not a safety ground.
11
NETWORK
IN
terminals
12
SACD/CD
IN
terminals
13
LINE
1 terminals
14
LINE
2
IN/OUT
terminals
15
DIGITAL IN OPTICAL
terminal
16
DIGITAL IN COAXIAL
terminal
17
CONTROL IN/OUT
jack
18
AC IN
jack
Connect power cord to here and an AC wall socket.
LINE2
LINE1
USB
COAXIAL
PHONO
(MM/MC)
SIGNAL
GND
NETWORK
SACD/CD
DIGITAL IN
ANALOG IN
OPTICAL
LINE2
OUT
POWER
AMP
DIRECT
BALANCED IN
NORMAL
INVERSION
PHASE
21 2 2724
2
10 11 15 16 1817
29
3
28
12 13
5 26
14
A70_SYXE8_0728.book 9 ページ ２０１５年７月２８日 火曜日 午後３時５４分
