18

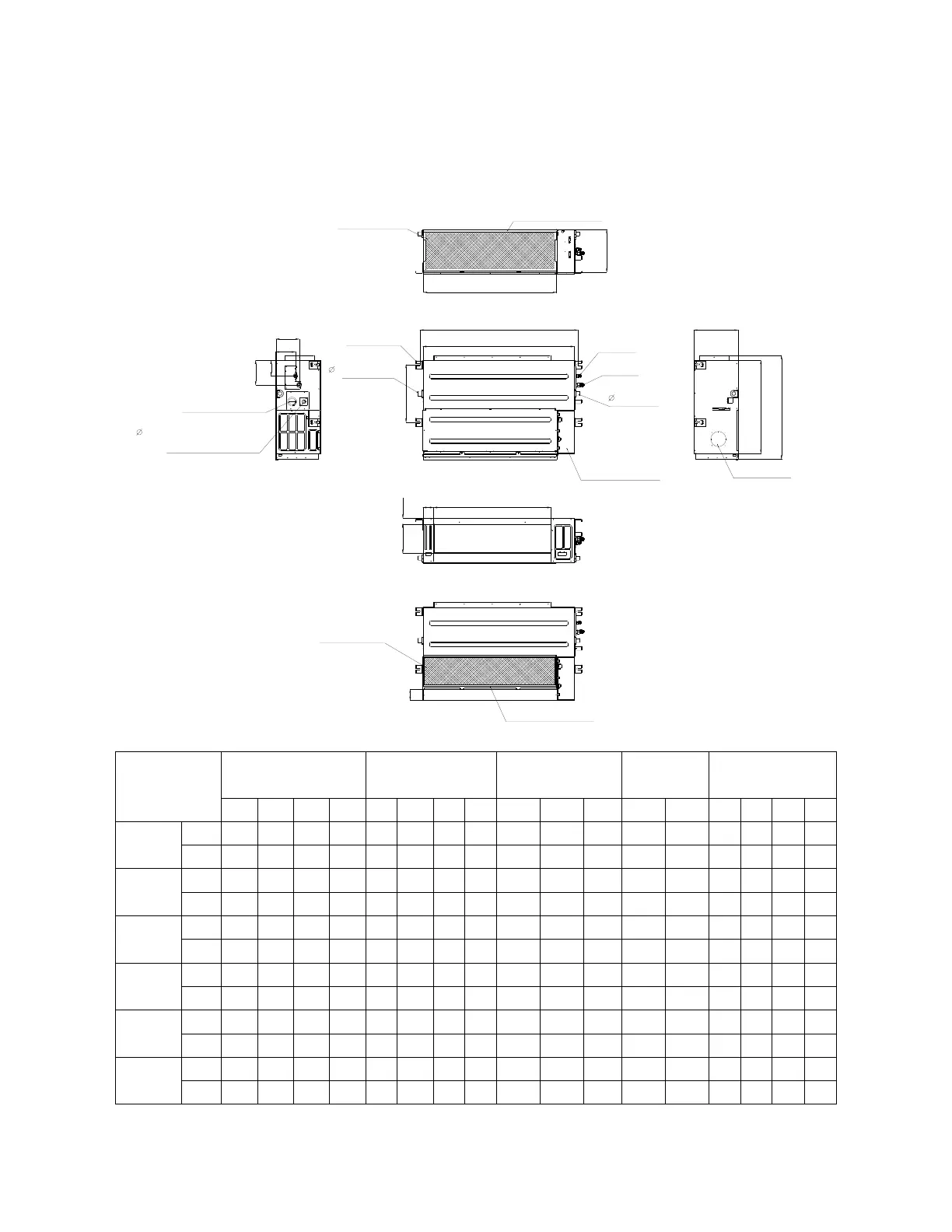

3. Dimension
3.1 Indoor Unit
Duct Units
A
C
B
D
J
I
K
Air filter ( optional )
air inlet from rear side
air inlet from bottom side
FE
G
H
Electric control box
Air filter ( optional )
L
4-install hanger
Gas side
Liquid side
M
W1
W2
H1
H2
25 Drain connecting pipe
( for pump )
Test mouth & Test cover
Fresh air intake
25 Drain pipe
25 Drain pipe
Capacity (KBtu)
Outline dimension(mm) Air outlet opening size Air return opening size
Size of install
hanger
Size of refrigerant pipe
A B C D E F G H I J K L M H1 H2 W1 W2
9
mm
700 210 635 570 65 493 35 119 595 200 80 740 350 120 143 95 150
in
27.56 8.27 25 22.44 2.56 19.41 1.38 4.69 23.43 7.87 3.15 29.13 13.78 4.72 5.63 3.74 5.91
12
mm
700 210 635 570 65 493 35 119 595 200 80 740 350 120 143 95 150
in
27.56 8.27 25 22.44 2.56 19.41 1.38 4.69 23.43 7.87 3.15 29.13 13.78 4.72 5.63 3.74 5.91
18
mm
920 210 635 570 65 713 35 119 815 200 80 960 350 120 143 95 150
in
36.22 8.27 25.00 22.44 2.56 28.07 1.38 4.69 32.09 7.87 3.15 37.80 13.78 4.72 5.63 3.74 5.91
24
mm
920 270 635 570 65 713 35 179 815 260 20 960 350 120 143 95 150
in
36.22 10.63 25.00 22.44 2.56 28.07 1.38 7.05 32.09 10.24 0.78 37.80 13.78 4.72 5.63 3.74 5.91
36
mm
1140 270 775 710 65 933 35 179 1035 260 20 1180 490 120 143 95 150
in
44.88 10.63 30.51 27.95 2.56 36.73 1.38 7.05 40.75 10.24 0.78 46.46 19.29 4.72 5.63 3.74 5.91
48
mm
1200 300 865 800 80 968 40 204 1094 288 45 1240 500 175 198 155 210
in
47.24 11.81 34.06 31.50 3.15 38.11 1.57 8.03 43.07 11.34 1.77 48.82 19.69 6.89 7.80 6.10 8.27
