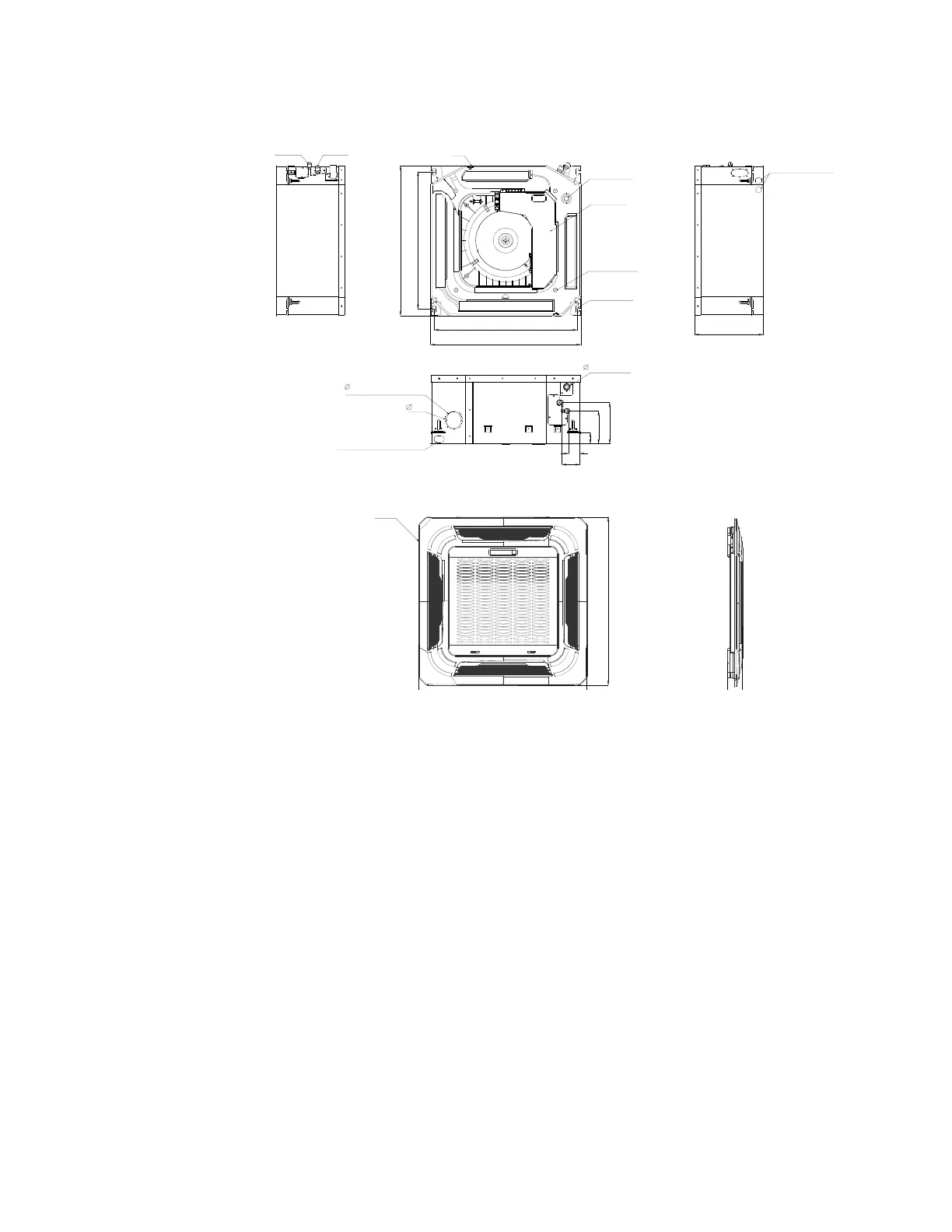

Cassette Units (9K, 12K, 18K)
Panel
Gas side
Liquid side
4-install hanger
Body
Drain pipe
32
Fresh air intake
65
647
Drain hole
( for Service )
545
570
260
68
42
157
126
44
Wiring connection port
75
E-parts box
4-Screw hole
(for install panel)
523
570
Wiring connection port
