3
CT-W208R
3 Packing Case RHG1912 RHG1912 RHG1910 RHG1911
7 Operating Instructions (English) RRB1198 Not used Not used RRB1198
8 Operating Instructions Not used Not used RRD1218 Not used
(Spanish/Portuguese/Dutch/Swedish
/German/Italian)
9 Operating Instructions (English/French) Not used RRE1179 RRE1179 Not used
NSP 10 Warranty Card ARY7023 ARY7024 ARY7022 ARY7022
11 Spacer A Not used Not used Not used RHC1032
12 Polyethylene Bag (115X270X0.05) Not used Not used Not used Z21-013
13 Spacer B Not used Not used Not used RHC1033
14 Caution Card Not used Not used Not used RRN1001

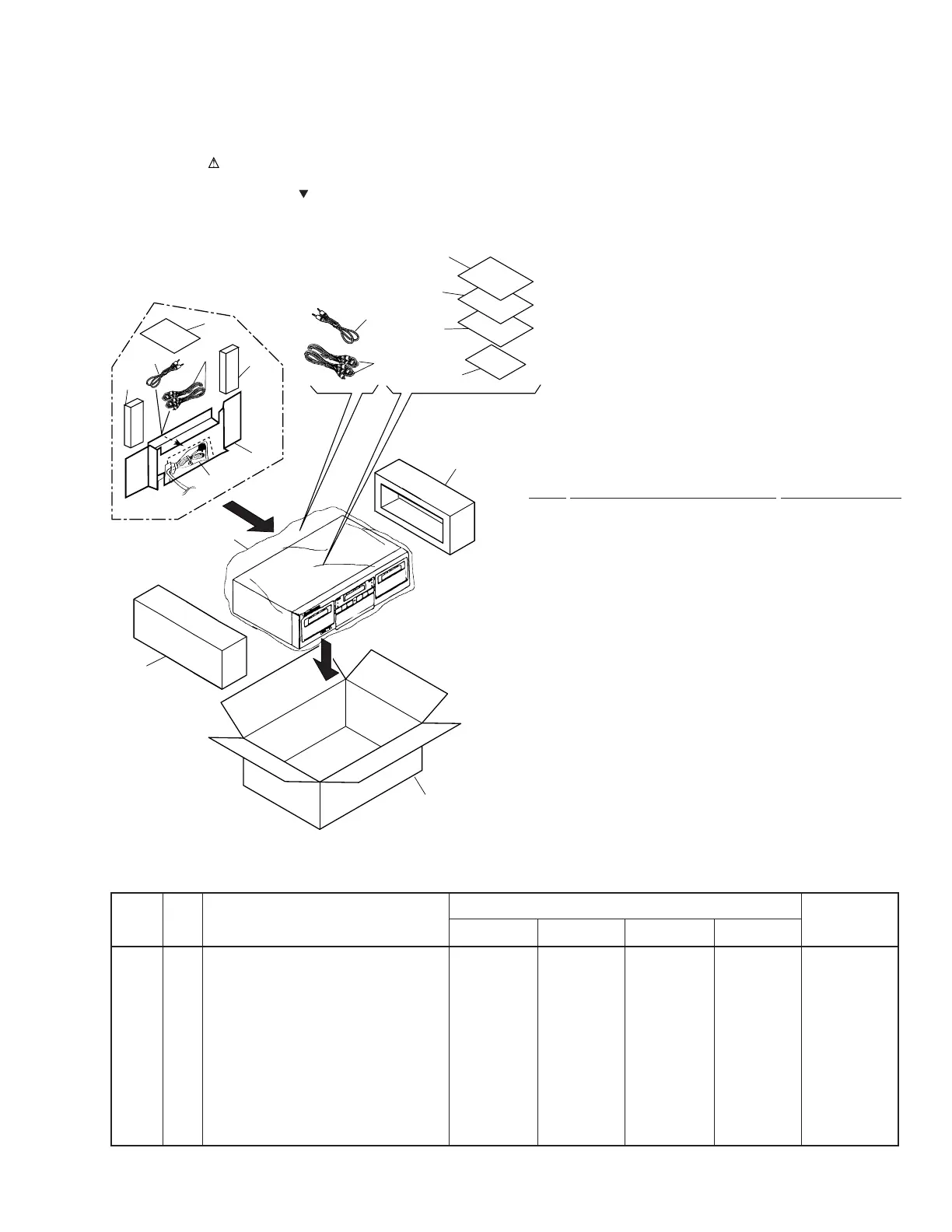

2.1 PACKING
1 Pad L RHA1115
2 Pad R RHA1116
3 Packing Case See Contrast table (2)
4 Mirror Mat Sheet Z23-007
(750x600x0.5)
5 Control Cable (L=1.0m) PDE1267
6 Connection cord with Pin-plug RDE1036
(L=1.0m)
(1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
HVXJ type Only
}
}
3
1
4
2
12
6
7 (KUXJ,
HVXJ types only)
8 (HYXJ
type only)
10
9 (HYXJ,
KCXJ
types only)
14
11
11
5
13
6
5
(2) CONTRAST TABLE
CT-W208R/KUXJ, KCXJ, HYXJ and HVXJ are constructed the same except for the following :
7 Operating Instructions See Contrast table (2)
(English)
8 Operating Instructions See Contrast table (2)
(Spanish/Portuguese/Dutch/Swedish
/German/Italian)
9 Operating Instructions See Contrast table (2)
(English/French)
NSP 10 Warranty Card See Contrast table (2)
11 Spacer A See Contrast table (2)
12 Polyethylene Bag See Contrast table (2)
(115x270x0.05)
13 Spacer B See Contrast table (2)
14 Caution Card See Contrast table (2)
Remarks
Part No.
KUXJ type KCXJ type HYXJ type HVXJ type
No.
Mark
Symbol and Description
To Next Page
