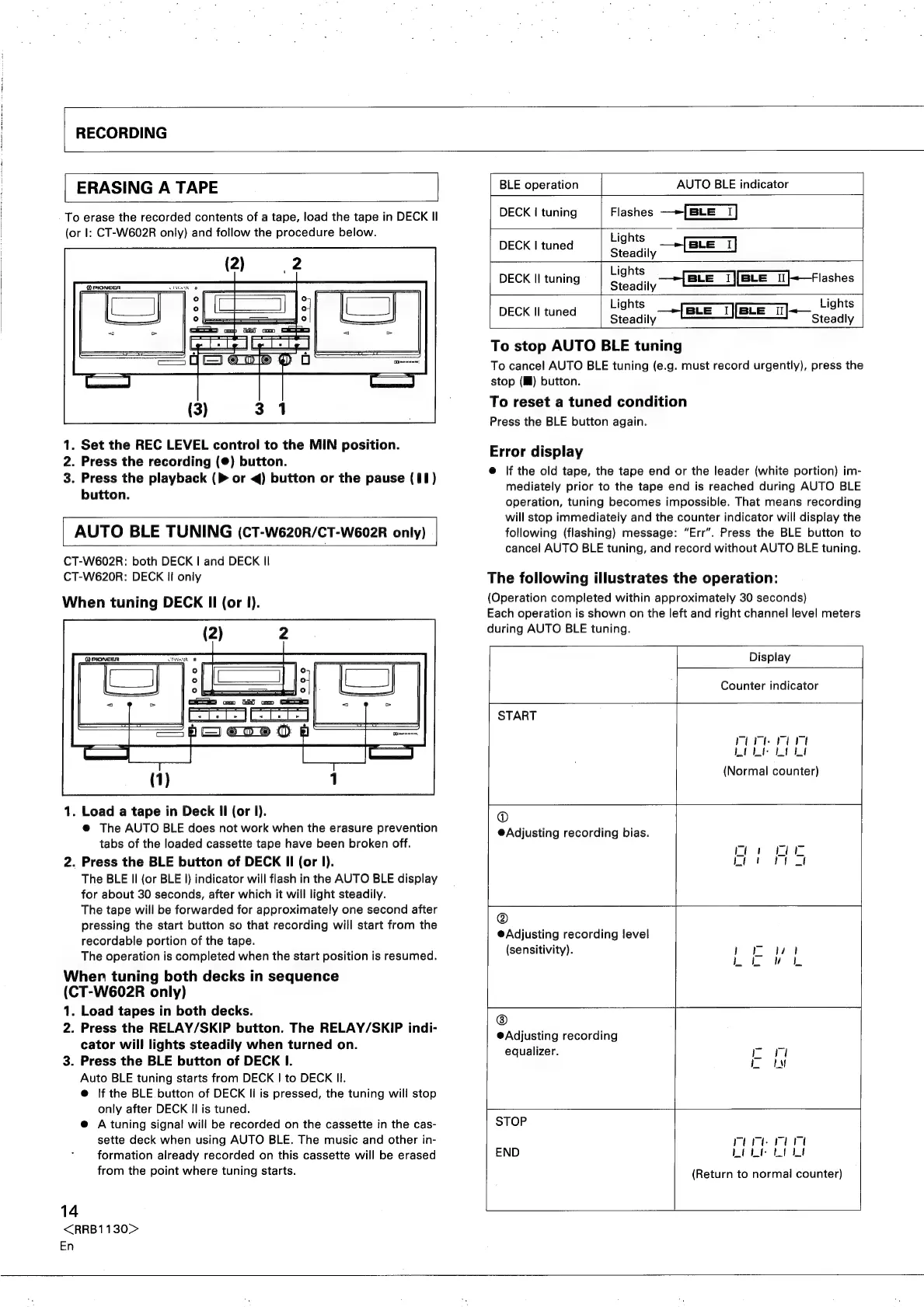

RECORDING
| ERASING A TAPE |
- To erase the recorded contents of a tape, load the tape in DECK Il
(or |: CT-W602R only) and follow the procedure below.
1. Set the REC LEVEL control to the MIN position.
2. Press the recording (@) button.
3. Press the playback (> or ¢) button or the pause (11)
button.
AUTO BLE TUNING (CT-W620R/CT-W602R only)
CT-W602R: both DECK | and DECK II
CT-W620R: DECK li only
When tuning DECK II (or I).
1. Load a tape in Deck Il (or I).
@ The AUTO BLE does not work when the erasure prevention
tabs of the loaded cassette tape have been broken off.
2. Press the BLE button of DECK II (or I).
The BLE II (or BLE |) indicator will flash in the AUTO BLE display
for about 30 seconds, after which it will light steadily.
The tape will be forwarded for approximately one second after
pressing the start button so that recording will start from the
recordable portion of the tape.
The operation is completed when the start position is resumed.
When tuning both decks in sequence
(CT-W602R only)
1. Load tapes in both decks.
2. Press the RELAY/SKIP button. The RELAY/SKIP indi-
cator will lights steadily when turned on.
3. Press the BLE button of DECK I.
Auto BLE tuning starts from DECK | to DECK Il.
e@ lf the BLE button of DECK Ii is pressed, the tuning will stop
only after DECK Il is tuned.
e@ A tuning signal will be recorded on the cassette in the cas-
sette deck when using AUTO BLE. The music and other in-
formation already recorded on this cassette will be erased
from the point where tuning starts.
14
<RRB1130>
En
BLE operation AUTO BLE indicator |
DECK | tuning Flashes —~{BLE 1[| |
Lights
BLE I
DECK | tuned Steadily ‘BLE I|
DECK II tuning ere Flashes
Lights —-[BLE 1] Lights
BLE [BLE —<_——
Ree nee Steadily [ste [ete] Steadly
To stop AUTO BLE tuning
To cancel AUTO BLE tuning (e.g. must record urgently), press the
stop (MI) button.
To reset a tuned condition
Press the BLE button again.
Error display
@ lf the old tape, the tape end or the leader (white portion) im-
mediately prior to the tape end is reached during AUTO BLE
operation, tuning becomes impossible. That means recording
will stop immediately and the counter indicator will display the
following (flashing) message: “Err”. Press the BLE button to
cancel AUTO BLE tuning, and record without AUTO BLE tuning.
The following illustrates the operation:
(Operation completed within approximately 30 seconds)
Each operation is shown on the left and right channel level meters
during AUTO BLE tuning.
Display
Counter indicator
START .
Fr
aa)
(Normal counter)
—
@Adjusting recording bias.
—_ —
J
-——
——
_——
— —
_-——
i
_.!
{
_!
{
Je
|
yan
@
@Adjusting recording level
(sensitivity). oe ee ae
LEkhwk
@®
e@Adjusting recording
equalizer. 7 FY
ry
STOP
END
~!
aa
fewicl
me
ah
a
~!
1
Pa
—
)
aa
1
Ee
—s
1
os
(Return to normal counter)
