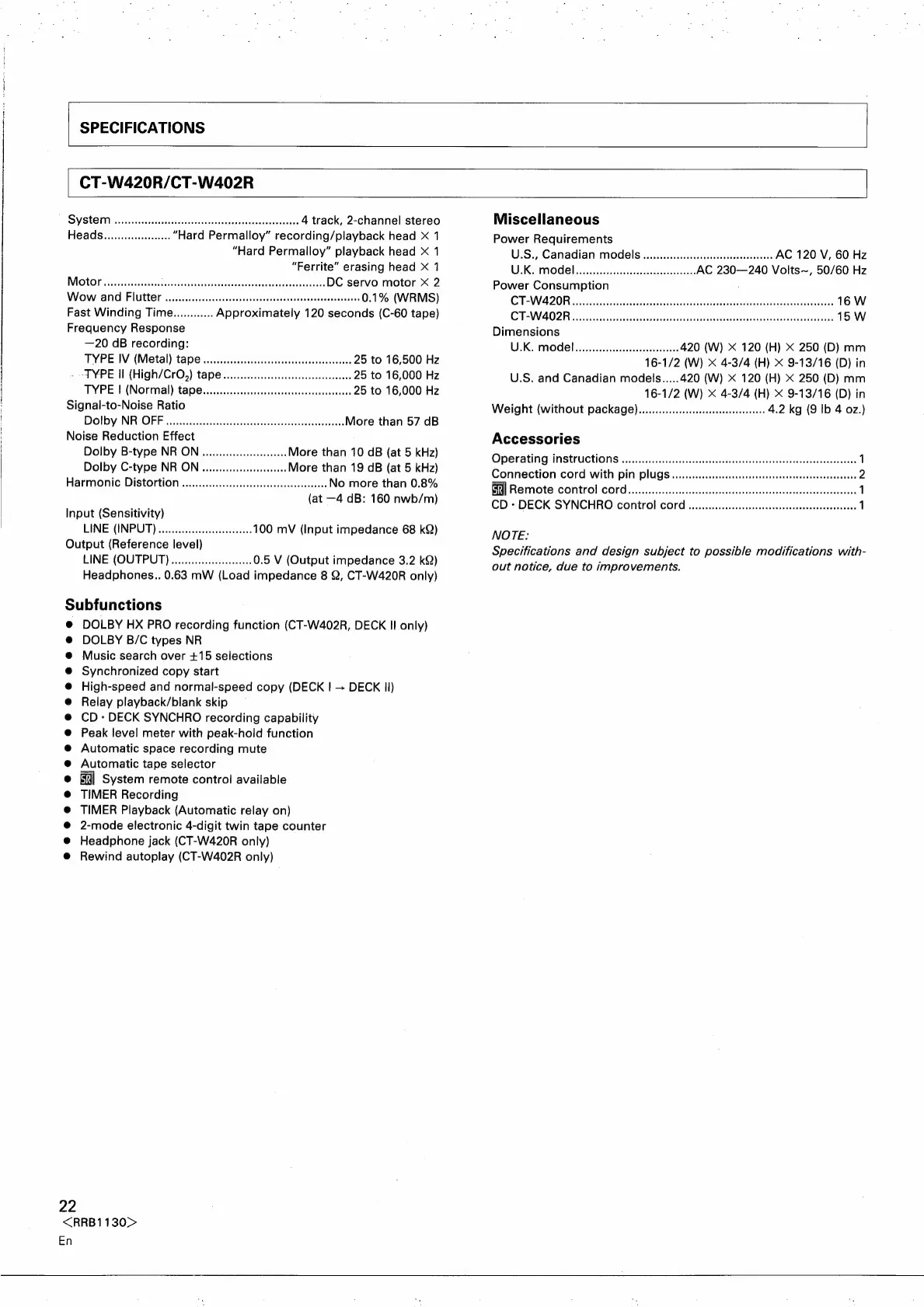

SPECIFICATIONS
CT-W420R/CT-W402R
TE DVSTOIN Aieaseosar cite wach tate aceuvt Biotec shabtiecaunevibee? 4 track, 2-channel stereo
Heads..........c.ccccee “Hard Permalloy” recording/playback head x 1
“Hard Permalloy” playback head X 1
“Ferrite” erasing head X 1
MOtO Pts sscces rele ie Seid eivia Anata trhiaedes ices DC servo motor X 2
Wow and Flutter 0... eee ecesesscceecseensresesssenenseneesseenees 0.1% (WRMS)
Fast Winding Time............ Approximately 120 seconds (C-60 tape)
Frequency Response
—20 dB recording:
TYPE IV (Metal) tape .........cccccccesessssseesesssseseeeens 25 to 16,500 Hz
- TYPE Il (High/CrO,) tape ..........cceessssseeesseesseeeees 25 to 16,000 Hz
TYPE | (Normal) tape............ccccccssscssesscccssesessessens 25 to 16,000 Hz
Signal-to-Noise Ratio
Dolby NR OFF .........ccccccccccccsccesseseusseessereceneessevens More than 57 dB
Noise Reduction Effect
Dolby B-type NR ON .......... ce ceeeeeeeene More than 10 dB (at 5 kHz)
Dolby C-type NR ON. ............ccessceeees More than 19 dB (at 5 kHz)
Harmonic Distortion ...........:::ccccccccssscecseeseecesessees No more than 0.8%
(at —4 dB: 160 nwb/m)
Input (Sensitivity)
LINE (INPUT) .......ccc eee eeeeeeeee 100 mV (Input impedance 68 kQ)
Output (Reference level)
LINE (OUTPUT) uu... ccececececenees 0.5 V (Output impedance 3.2 kQ)
Headphones.. 0.63 mW (Load impedance 8 Q, CT-W420R only)
Subfunctions
DOLBY HX PRO recording function (CT-W402R, DECK II only)
DOLBY B/C types NR
Music search over +15 selections
Synchronized copy start
High-speed and normal-speed copy (DECK | — DECK II)
Relay playback/blank skip
CD - DECK SYNCHRO recording capability
Peak level meter with peak-hold function
Automatic space recording mute
Automatic tape selector
System remote control available
TIMER Recording
TIMER Playback (Automatic relay on)
2-mode electronic 4-digit twin tape counter
Headphone jack (CT-W420R only)
Rewind autoplay (CT-W402R only)
22
<RRB1130>
En
i
Miscellaneous
Power Requirements
U.S., Canadian Models ........ccccccccssssscccvssesessesnnees AC 120 V, 60 Hz
U.K. MOdel.........ccccssssseseseseserenees AC 230—240 Volts~, 50/60 Hz
Power Consumption
GT-W4 2OR isissdivsiesteicevansiedecoacanceadeennsceuunstuninen gensrnteurv nancies 16W
CTW O2Reiiscnvededecstadissdaussteds canscusvvens Aabvikseevervuenntnreianuaromense: 15W
Dimensions
U.K. MOdel oc eeccecsseveseseeee 420 (W) X 120 (H) X 250 (D) mm
16-1/2 (W) X 4-3/4 (H) X 9-13/16 (D) in
U.S. and Canadian models.....420 (W) X 120 (H) x 250 (D) mm
16-1/2 (W) X 4-3/4 (H) X 9-13/16 (D) in
Weight (without package).............ccssccccesessssseteeeeess 4.2 kg (9 Ib 4 oz.)
Accessories
Operating INStrUctiONS ..........ccccssccsssscssssecesscseeeesesseeesecssssseeseeseesnees 1
Connection cord with pin Plugs ...........ccccccccccsssssssereseessssersessceessrenees 2
GBA] Remote Control COG ..ccccccccssscscssessecsssesscsssecsesvssssececsussaceveesevavens 1
CD - DECK SYNCHRO control Cord ..........::ccccccesseeceeensecsseeessteeesseaes 1
NOTE:
Specifications and design subject to possible modifications with-
out notice, due to improvements.

Pioneer CT-W502R Specifications
