47
DEH-2300,230,23

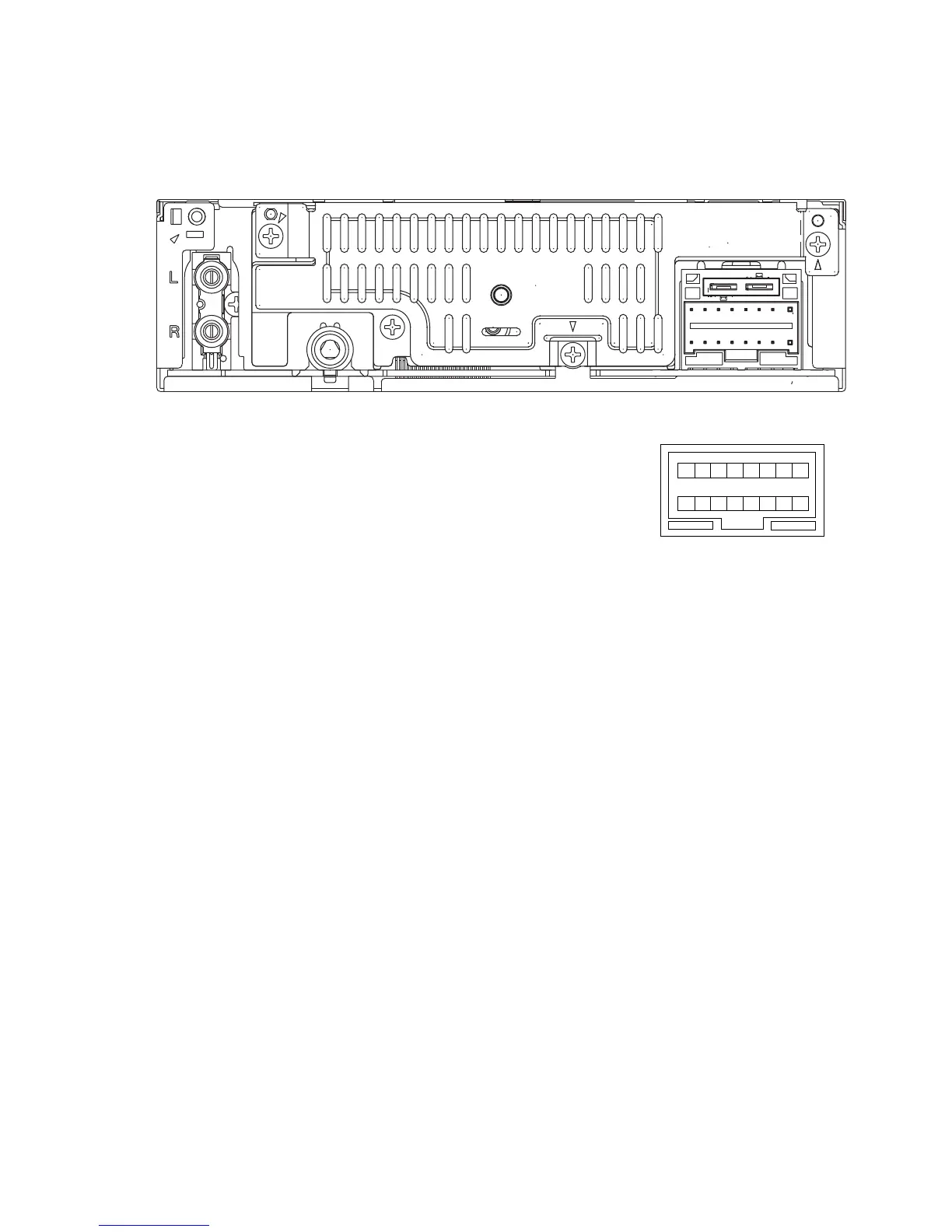

7.1.3 CONNECTOR FUNCTION DESCRIPTION
57913
468210121416
111315
1. BACK UP
2. GND
3. NC
4. ACC
5. B.REM
6. NC
7. NC
8. NC
9. FL-
10. RL-
11. FL+
12. RL+
13. FR-
14. RR-
15. FR+
16. RR+
PRE OUT ANTENNA
