Pioneer DEH-3130R User Manual

3
DEH-3130R,3100R-B,3100R

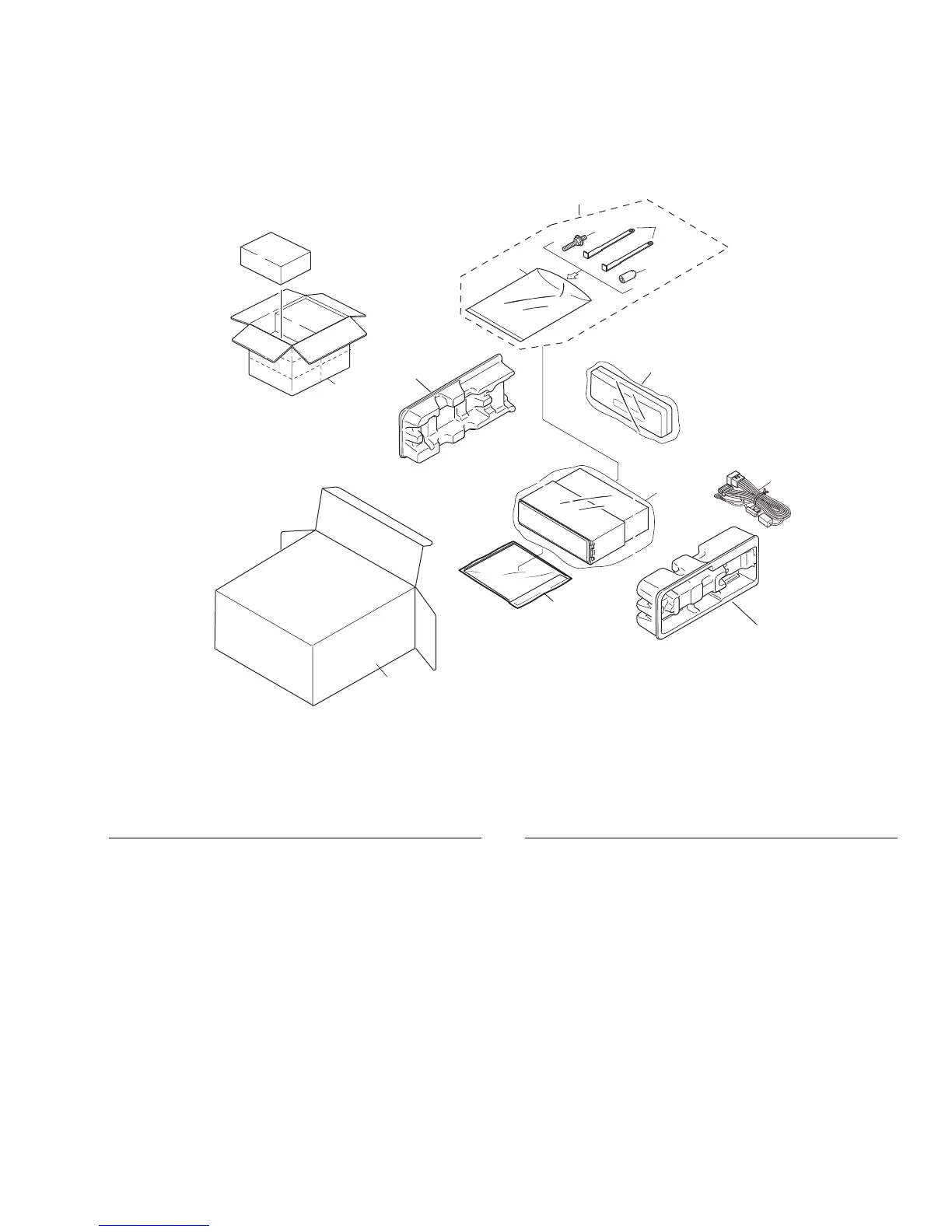

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
11
8
9
5
4
6
3
2
7
12
13
10
1
1 Cord Assy CDE6238
* 2 Accessory Assy CEA2397
3 Screw CBA1002
4 Handle CNC5395
5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162
8-1 Owner’s Manual CRD3073
8-2 Owner’s Manual CRD3074
8-3 Owner’s Manual CRD3075
8-4 Installation Manual CRD3076
* 8-5 Passport CRY1013
* 8-6 Warranty Card CRY1157
8-7 Polyethylene Bag CEG1116
9 Case Assy CXB3520
10 Carton
See Contrast table(2)
11 Contain Box See Contrast table(2)
12 Protector CHP2251
13 Protector CHP2252
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to
∇ mark on the product are used for disassembly.
