Connections
Connections
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
Refer to the operating instructions for the component to be connected.
Connect the power cord after all the connections between devices have been completed.
Be sure to use the included power cord.

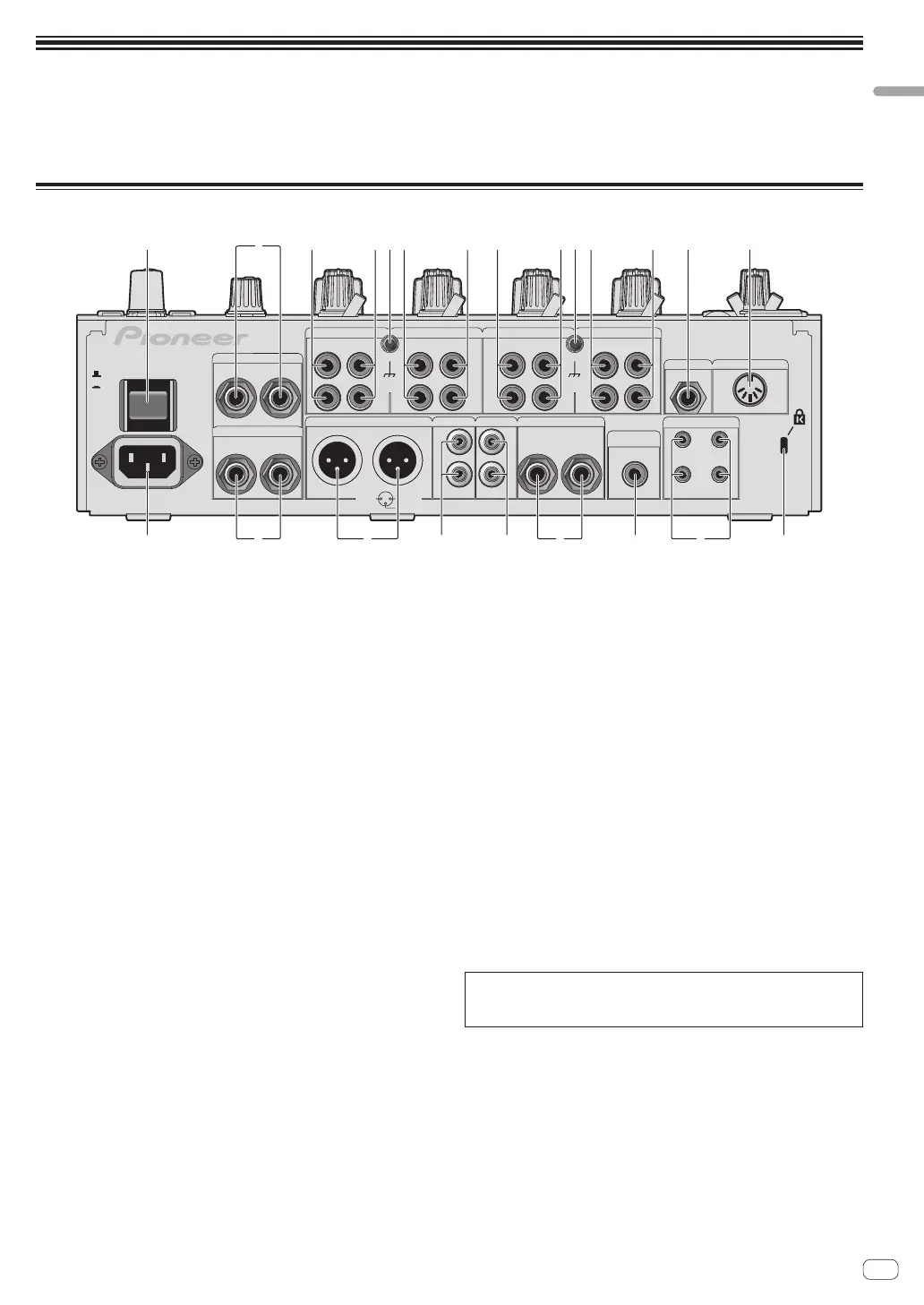

Rear panel
OFF
RETURN
L
1 GND
2 HOT
3 COLD
LR
R
L
R
L
R
L
R
CH 4CH 3
L
R
PHONO
CH 1
CD/LINE
L
R
PHONO CD/ LINE
L
RR
LINE CD/LINE
L
LINE CD/LINE
SIGNAL GNDSIGNAL GND
TRS
MASTER1
BOOTH
REC OUTMASTER2
MIC2
MIDI OUT
CH1
CH2
CONTROL
DIGITAL
MASTER OUT
CH 2
(MONO)
LR
(MONO)
SEND
POWER
AC IN
ON
CH3
CH4
1 34646434 55 7 82
de b 9h acg f
1 POWER button (page 15)
Turns this unit’s power on and off.
2 RETURN terminals (page 8)
Connect to the output terminal of an external effector. When the [L
(MONO)] channel only is connected, the [L (MONO)] channel input
is simultaneously input to the [R] channel.
3 PHONO terminals (page 8)
Connect to a phono level (MM cartridge) output device. Do not input
line level signals.
To connect a device to the [PHONO] terminals, remove the short-
circuit pin plug inserted in the terminals.
Insert this short-circuit pin plug into the [PHONO] terminals when
nothing is connected to them to cut external noise.
4 CD/LINE terminals (page 8)
Connect to a DJ player or a line level output component.
5 SIGNAL GND terminal (page 8)
Connects an analog player’s ground wire here. This helps reduce
noise when the analog player is connected.
6 LINE terminals (page 8)
Connect to a cassette deck or a line level output component.
7 MIC2 terminal (page 8)
Connects a microphone here.
8 MIDI OUT terminal (page 8)
Connects this to the MIDI IN terminal on an external MIDI
sequencer.
9 Kensington security slot
a CONTROL terminal (page 8)
This is a Ø 3.5 mm mini phone jack type DJ player control terminal.
If you connect a Pioneer DJ player using a control cable (supplied
with a DJ player), you can start playback of control other operations
of the DJ player with the fader of this unit.
b DIGITAL MASTER OUT terminal (page 8)
Outputs the master channel audio signals.
c BOOTH terminals (page 8)
Output terminals for a booth monitor, compatible with balanced or
unbalanced output for a TRS connector.
d REC OUT terminals (page 8)
These are output terminals for recording.
e MASTER2 terminals (page 8)
Connect to a power amplifier, etc.
f MASTER1 terminals (page 8)
Connect to a power amplifier, etc.
g SEND terminals (page 8)
Connect to the input terminal of an external effector. When the [L
(MONO)] channel only is connected, a monaural audio signal is
output.
h AC IN
Connects to a power outlet using the included power cord. Wait until
all connections between the equipment are completed before con-
necting the power cord.
Be sure to use the included power cord.
WARNING
The short-circuit pin plugs out of the reach of children and infants. If
accidentally swallowed, contact a doctor immediately.
