Pioneer DVR-640H-S User Manual

Connecting up
02
21
En

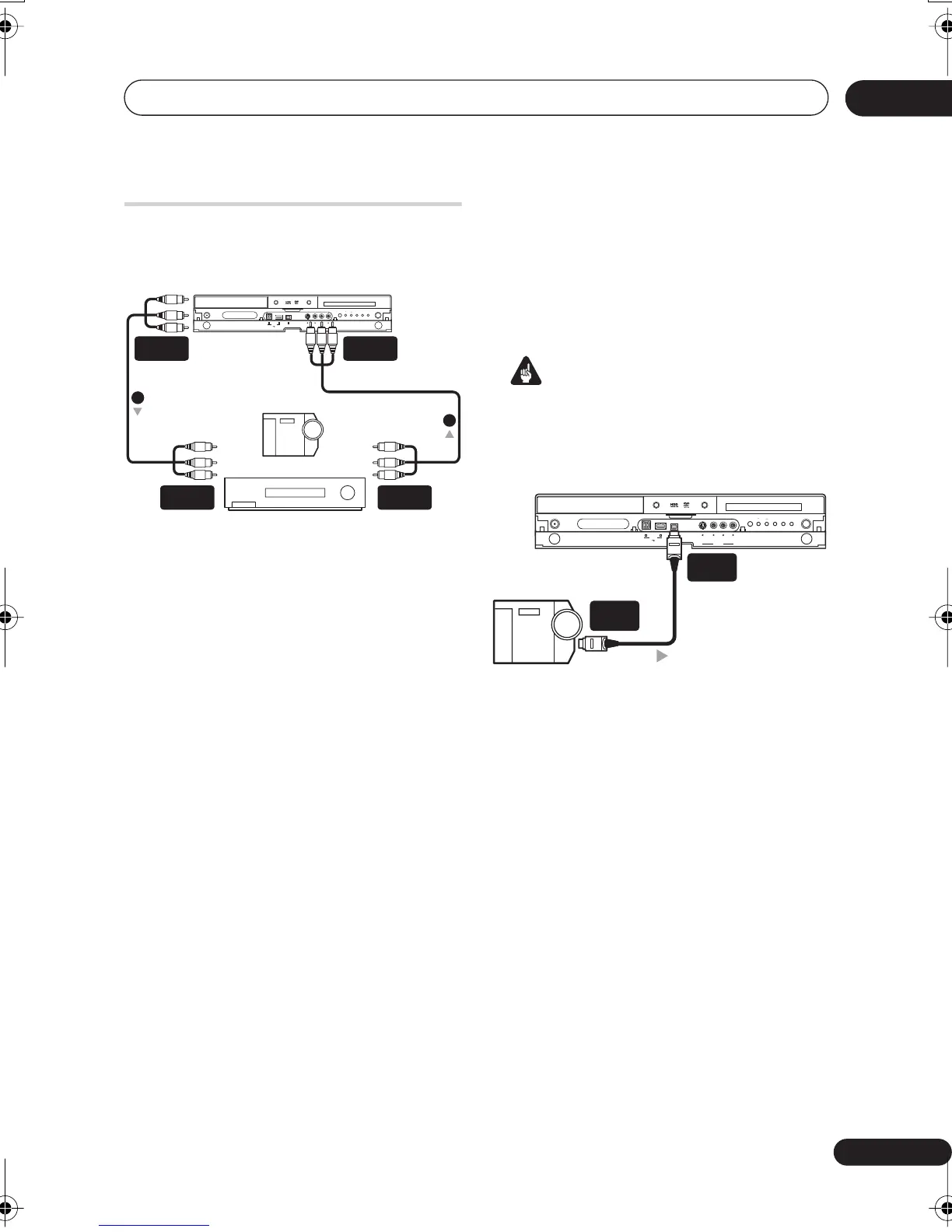

Connecting other AV sources
Connecting a VCR or analog
camcorder
1 Connect a set of audio and video
inputs of your VCR or camcorder to a set
of outputs on this recorder.
This enables you to record from this recorder
to your VCR or camcorder.
• You can use standard video or S-video
cables for the video connection.
2 Connect a set of audio and video
outputs of your VCR or camcorder to a
set of inputs on this recorder.
This enables you to record tapes from your
VCR or camcorder.
• You can use standard video or S-video
cables for the video connection.
• The front panel connections make
convenient connections for a camcorder
input.
Connecting a DV camcorder
DVR-640H-S only
Using the front panel DV IN jack, it is
possible to connect a DV camcorder or video
deck, or DVD-R/-RW recorder and digitally
transfer DV tapes or DVD-R/-RW discs to
DVD-R/-RW.
Important
• This jack is for connection to DV
equipment only. It is not compatible with
digital satellite receivers or D-VHS video
decks.
• Use a DV cable (not supplied) to
connect the DV jack of your DV
camcorder/video deck to the front panel
DV IN jack of this recorder.
Analog camcorder
VCR
(Rear panel)
DVR-640H-S
(Front panel)
HDD/DVD
ONE
TOUCH
COPY
STOP
REC
CH
 OPEN/CLOSE
 STANDBY/ON
 REC



+–
S-VIDEODV IN VIDEO L AUDIO R
(MONO)
INPUT 2
USB
AUDIO/VIDEO
OUTPUT
AUDIO/VIDEO
INPUT
1
2
AUDIO/VIDEO
INPUT
AUDIO/VIDEO
OUTPUT
DV camcorder
DVR-640H-S
HDD/DVD
ONE
TOUCH
COPY
STOP
REC
CH
 OPEN/CLOSE
 STANDBY/ON
 REC



+–
S-VIDEODV IN VIDEO L AUDIO R
(MONO)
INPUT 2
USB
DV
OUT
DV
IN
DVR640H_WPW_EN.book 21 ページ ２００６年４月１１日 火曜日 午前９時４４分
