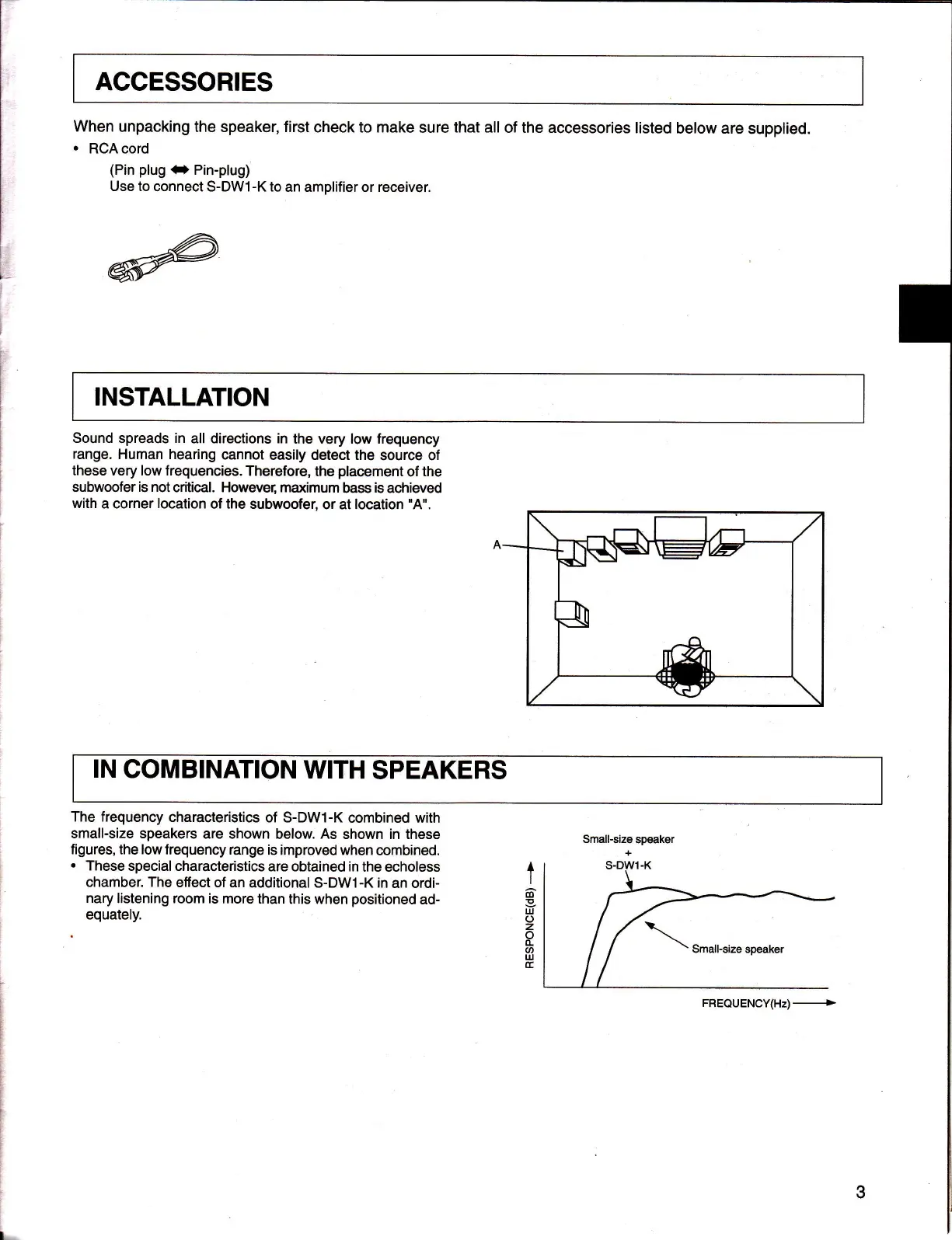

Pioneer S-DW1-K User Manual

ACCESSORIES
When
unpacking the
speaker, first
check to make
sure
that
all of the accessories
listed
below are
supplied.
.
RCA cord
(Pin plug
e
Pin-plug)
Use to
connect S-DW1-K to
an amplifier or receiver.
INSTALLATION
Sound
spreads
in
all directions in
the very low frequency
range.
Human hearing
cannot
easily detect the
source of
these very low frequencies.
Therefore,
the
placement
of
the
subwoofer is not
critical. Howeve[
maximum
bass
is
achieved
with
a corner
location
of
the
subwoofer,
or at location
"A".
IN
COMBINATION
WITH SPEAKERS
The frequency
characteristics
of S-DW1-K
combined with
small-size speakers
are shown
below.
As
shown in these
figures,
the
low
frequency range
is improved when
combined.
.
These
special characteristics
are obtained in
the echoless
chamber. The
effect of
an additional S-DW1-K in
an ordi-
nary
listening room is
more than
this when
positioned
ad-
equately.
t
d)
g
TIJ
o
z
o
(L
a
l,u
tr
3

Pioneer S-DW1-K Specifications

Power

power requirements	AC 120 V 60 Hz
power consumption	150 W
continuous average power output	150 W

Audio

speaker size	25 cm
input level	1V / 4.7 kA
line level input	50 mV / 10 kΩ

Weight and Dimensions

dimensions	320 x 375 x 420 mm
dimensions (inches)	12-5/8 x 14-3/4 x 16-1/2 inch
weight	10.9 kg
