Pioneer S-DW1-K User Manual

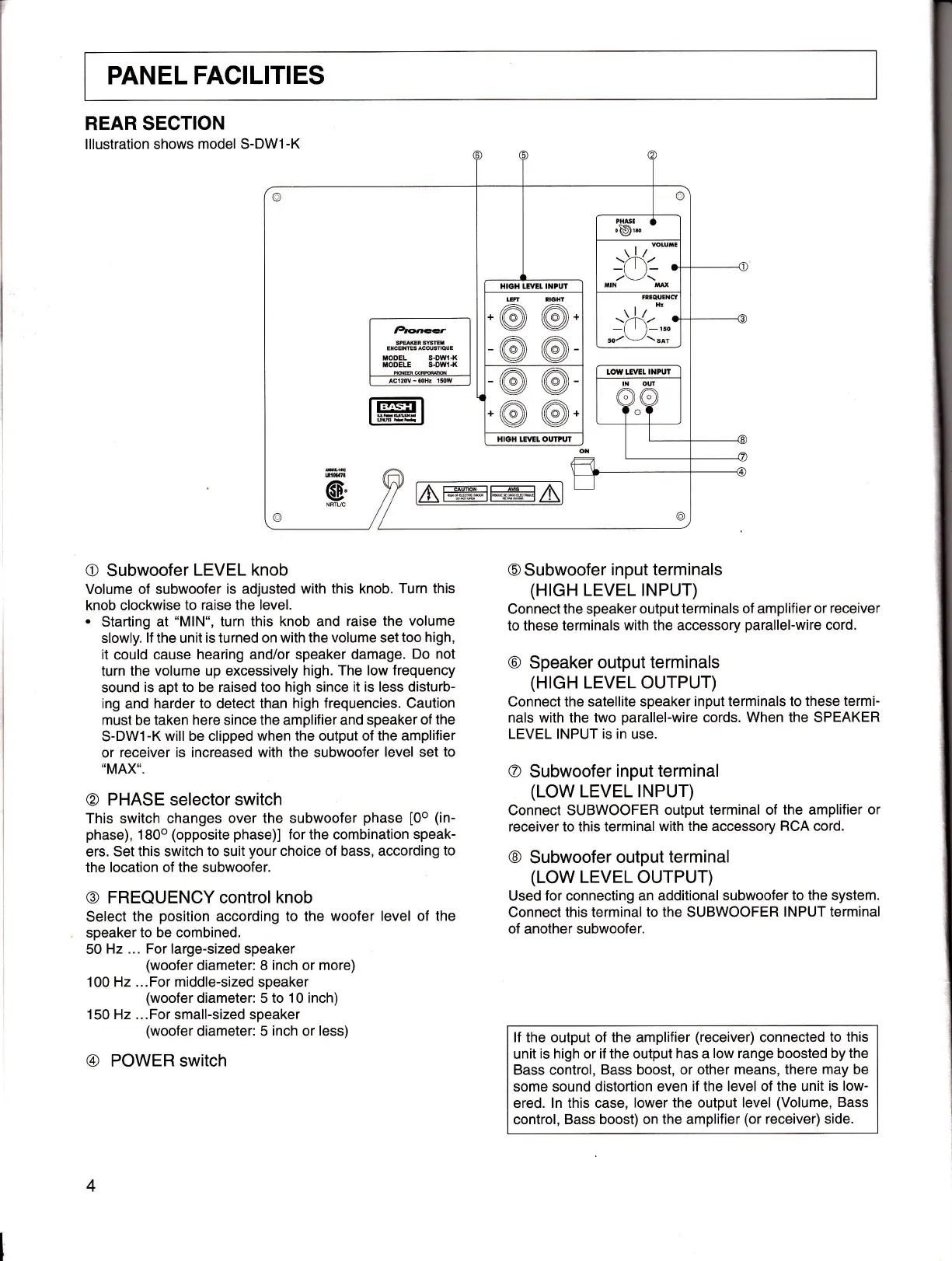

PANEL FACILITIES
REAR SECTION
lllustration shows
model S-DW1-K
l
O Subwoofer
LEVEL knob
Volume of subwoofer
is adjusted with this
knob. Turn this
knob clockwise
to raise the level.
.
Starting at
"MlN",
turn this knob and
raise the volume
slowly.
lf
the unit
is
turned on
with the volume set
too high,
it
could cause
hearing and/or speaker damage.
Do not
turn the
volume
up
excessively high. The
low frequency
sound
is
apt
to
be
raised too high since
it is less
disturb-
ing and
harder to
detect
than high
frequencies.
Gaution
must
be
taken here since the amplifier and speaker
of the
S-DW1-K
will be clipped when the output of
the amplifier
or
receiver is increased with the subwoofer
level set to
"MAX".
@
PHASE selector switch
This switch changes
over the subwoofer
phase
[0o
(in-
phase),
180o
(opposite phase)l
for the combination speak-
ers.
Set this switch to suit
your
choice of bass, according
to
the location of
the
subwoofer.
@
FREQUENCY control
knob
Select
the
position
according to the woofer
level of the
speaker
to
be
combined.
50 Hz
... For large-sized
speaker
(woofer
diameter: 8
inch
or
more)
100 Hz ...For middle-sized speaker
(woofer
diameler: 5 to 10 inch)
150 Hz ...For small-sized speaker
(woofer
diameter: 5 inch or
less)
@
POWER switch
@
Subwoofer
input terminals
(HrGH
LEVEL rNPUT)
Connect the speaker
output terminals of amplifier
or receiver
to these terminals
with the accessory
parallel-wire
cord.
@
Speaker
output
terminals
(HrGH
LEVEL OUTPUT)
Connect the satellite speaker
input terminals to these
termi-
nals with the two
parallel-wire
cords. When the SPEAKER
LEVEL INPUT
is in
use.
@ Subwoofer
input terminal
(LOW
LEVEL rNPUT)
Connect SUBWOOFER output
terminal of the amplifier
or
receiver to this terminal
with the accessory
RCA
cord.
@
Subwoofer
output
terminal
(LOW
LEVEL OUTPUT)
Used for connecting an additional
subwoofer to the system.
Connect
this terminalto the SUBWOOFER
INPUT terminal
of another subwoofer.
lf the
output
of the amplifier
(receiver)
connected
to this
unit
is high
or
if the output has a
low range
boosted
by the
Bass control,
Bass
boost,
or other means, there
may be
some sound distoilion even
if the level of the unit
is low-
ered.
ln this case, lower the
output level
(Volume,
Bass
control,
Bass boost) on the amplifier
(or
receiver) side.
4
-im6F--'tr-----E
----1
ffiffi
I
eEB
ll
*ilffi
|

Pioneer S-DW1-K Specifications

Power

power requirements	AC 120 V 60 Hz
power consumption	150 W
continuous average power output	150 W

Audio

speaker size	25 cm
input level	1V / 4.7 kA
line level input	50 mV / 10 kΩ

Weight and Dimensions

dimensions	320 x 375 x 420 mm
dimensions (inches)	12-5/8 x 14-3/4 x 16-1/2 inch
weight	10.9 kg
