3. Installation method
4. Specification

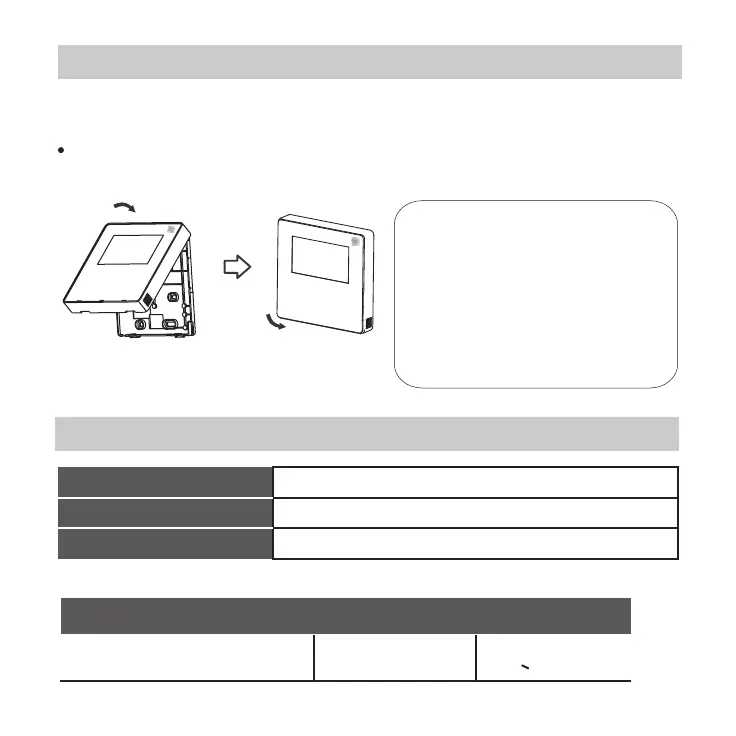

Fig 3-9
7. Reattach the upper part of the wire controller
After adjusting the upper case and then buckle the upper case;
avoid clamping the wiring during installation. (Fig 3-9)
Wiring specications
Wiring type
Size
Total length
shielded vinyl cord or cable 0.5-1.25mm
<50m（164’）
2
All the pictures in this
manual are for
explanation purpose only.
Your wire controller may
be slightly dierent .The
actual shape shall prevail.
KJR-120X1/TFBG-E: DC 5V, KJR-120X2/TFBG-E: DC 12V
-5~43℃(23~110℉)
RH40%~RH90%
Input voltage
Ambient temperature
Ambient humidity
