Handlebar Adjustments
Handlebar Position (if equipped)
1. Loosen the four bolts on the bottom of the adjuster block. If
necessary, pry the blocks apart with a screwdriver.
2. Adjust the handlebar forward or rearward to the desired position.
3. Tighten the bolts.
Handlebar Angle
1. Loosen the four bolts on the top of the adjuster block. If necessary,
pry the blocks apart with a screwdriver.
2. Adjust the handlebar forward or rearward to the desired angle. Be
sure handlebars, brake lever and throttle lever operate smoothly and
do not hit the gas tank, windshield or any other part of the machine
when turned fully to the left or right. If necessary, loosen the set
screws for the left and right controls, rotate the controls slightly,
then tighten the set screws to the proper torque.
NOTICE: Do not stretch wires while adjusting the controls. Stretching the wires
could damage the handwarmers.
• Right control torque: 27 in. lbs. (3.05 Nm) +/- 10%.
• Left control torque (RMK): 24 in. lbs. (2.7 Nm) +/- 10%.
• Left control torque (PRO RMK): 70 in. lbs. (8 Nm) +/- 10 in. lbs.
3. Tighten the bolts.

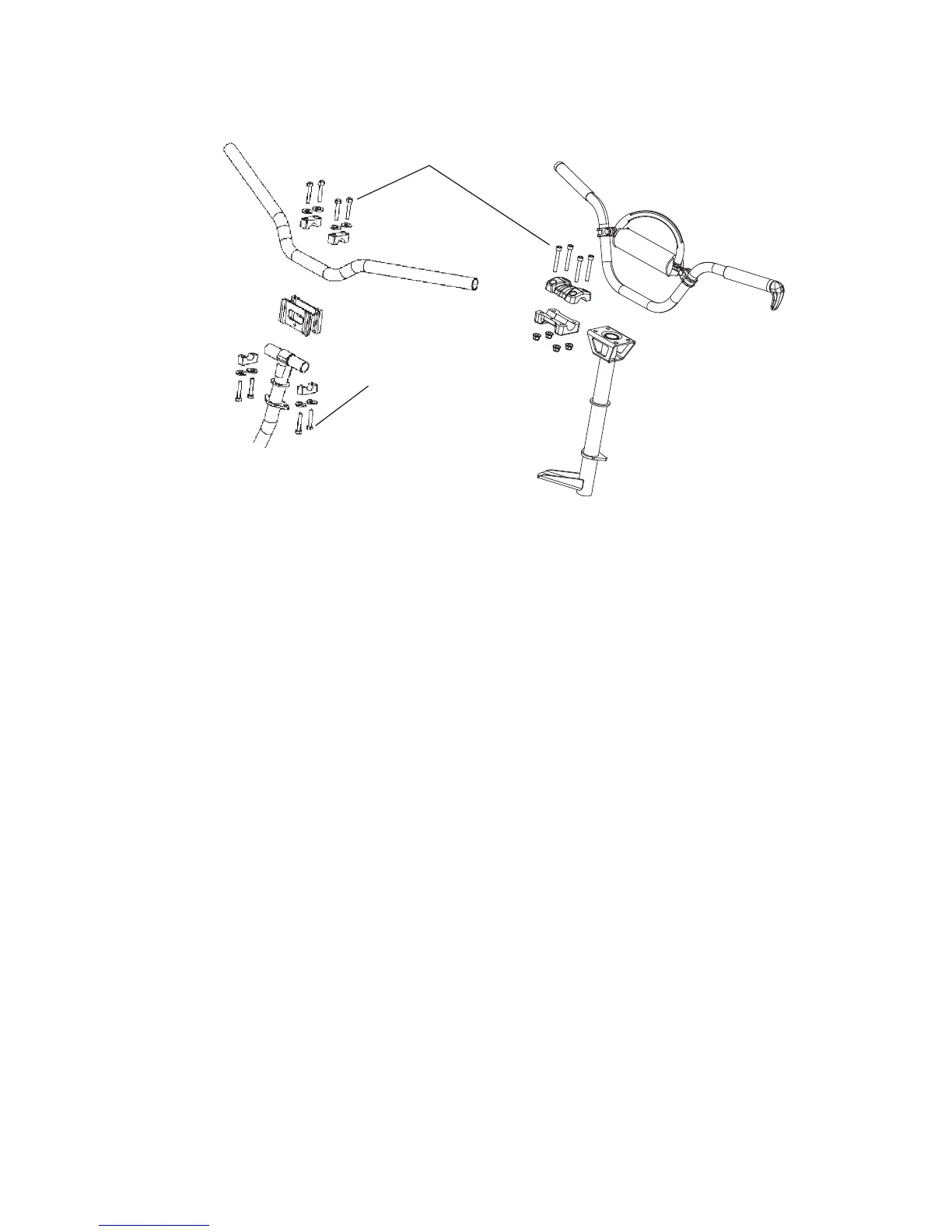

Loosen top bolts to adjust
handlebar angle
Loosen bottom
bolts to adjust
handlebar position
(if equipped)
