Polaris 4500 HD User Manual

Instr 9929139 Rev 01 2018-08 Page 11 of 13

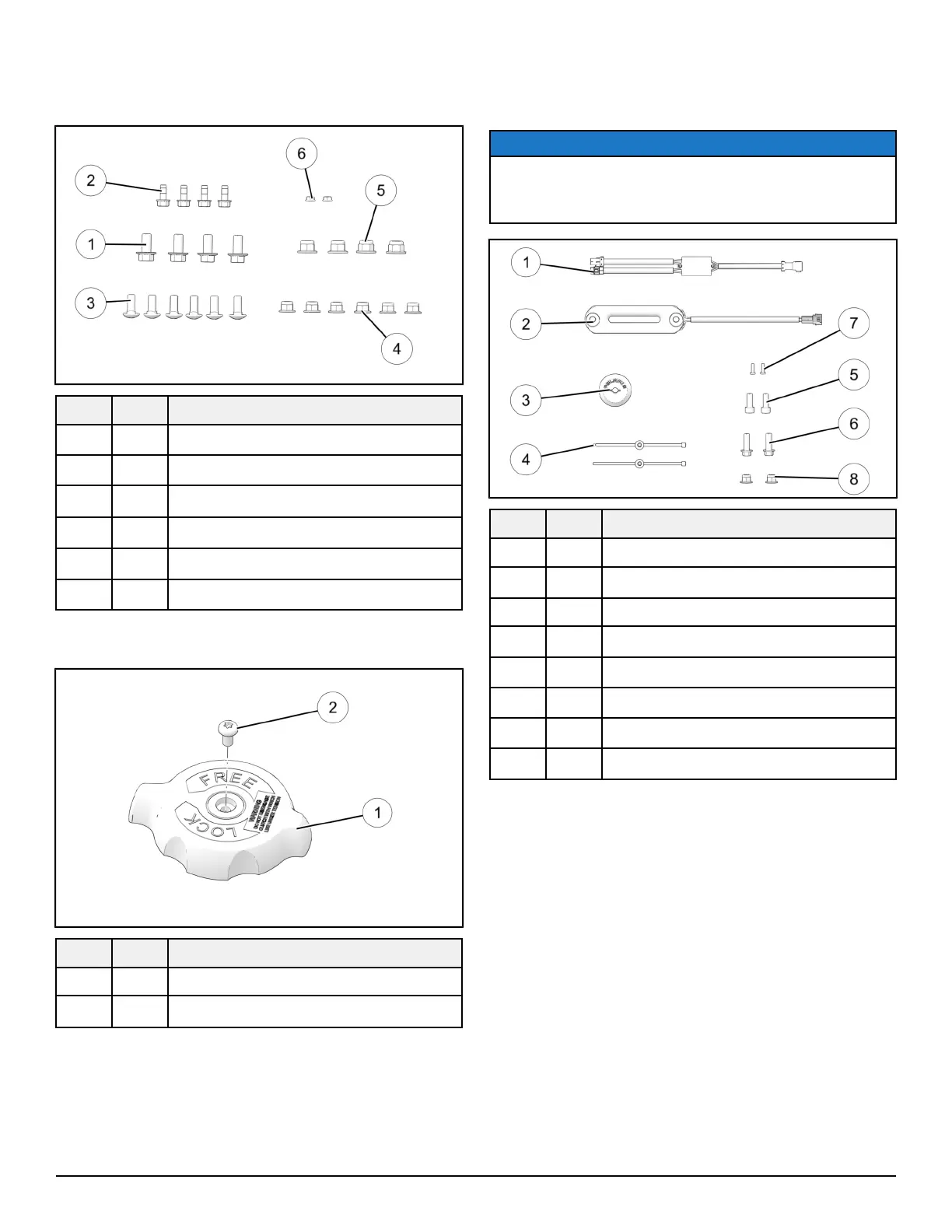

SERVICE KITS
Winch Hardware Kit: PN 2206300
REF QTY PART DESCRIPTION
1 4
Screw, HXFL - M12 X 1.75 X 25
2 4
Screw, HXFL M8 X 1.25 X 20
3 6 Screw, Carriage - M10 X 1.5 X 25
4 6 Locking Nut - M10 X 1.5
5 4 Locking Nut - M12 X 1.75
6 2 Hex Nut - M6 , Serrated
HD Service Handle Kit: PN 2205265
REF
QTY PART DESCRIPTION
1 1 4500 HD Service Handle
2 1 Mounting Screw
Autostop Service Kit: PN 2881288
NOTE
The Autostop kit is compatible with the Polaris 4500
HD winch kit and is available for purchase
separately.
REF QTY PART DESCRIPTION
1 1 Control Box
2 1 Autostop Fairled
3 1 Rubber Puck
4 2 Routing Clip
5 2 Screw, SH - M10 X 1.5 X 25
6 2 Screw, HXFL - M10 X 1.5 X 30
7 2 Screw, TRX - #10 X 5/8
8 2 Locking Nut, M10 X 1.5
