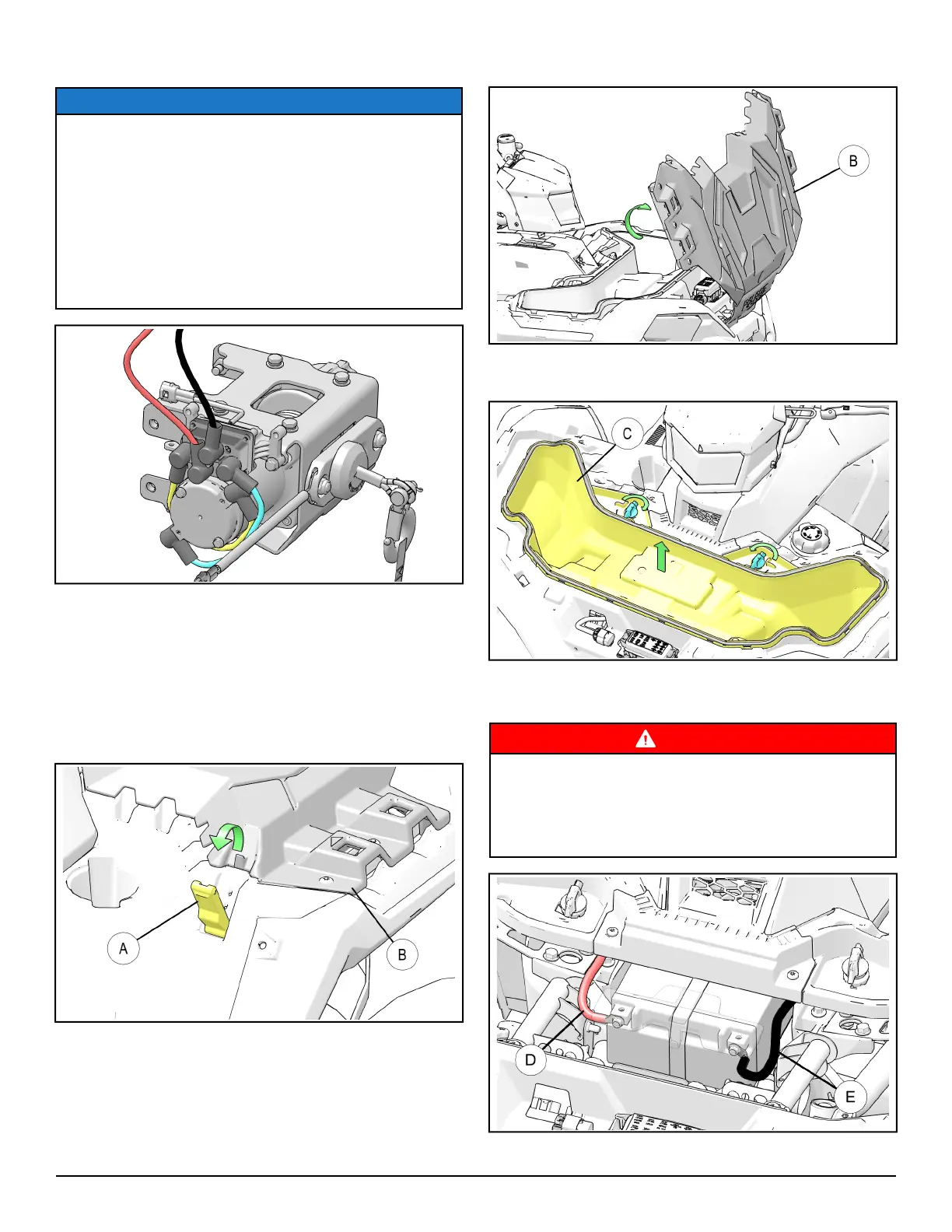

Instr 9927474 Rev 01 2017-02 Page 3 of 14
INSTALLATION INSTRUCTIONS
NOTE
This kit contains the same components as
Sportsman (non-XP) winch kit (PN 2882242), but
have been pre-assembled differently. If you need to
install this kit on a Sportsman (non-XP) vehicle, refer
to image below that shows the contactor location
and wire routing for Sportsman (non-XP) winch kit,
and reassemble the contactor and wiring to match
below image. You will need to download instructions
manual (PN 9927475) and follow those instructions
for final installation.
*ABOVE IMAGE REFERS TO KIT PN 2882242
PREPARATION
1. Place vehicle in “PARK”. Turn key to “OFF”
position and remove from vehicle.
2. Detach rubber latch
A
on both sides of vehicle
and open the front rack
B
.
3. Rotate two latches and remove storage tray
C
from vehicle as shown.
4. Disconnect the black (negative)
E
and red
(positive)
D
cables from the battery.
WARNING
ALWAYS disconnect black negative (-) cable from
battery FIRST. Failure to do so will result in high
current electrical arc, and may result in battery
explosion if tool touches grounded frame. Death or
serious personal injury may occur.
