Instr 9927474 Rev 01 2017-02 Page 6 of 14

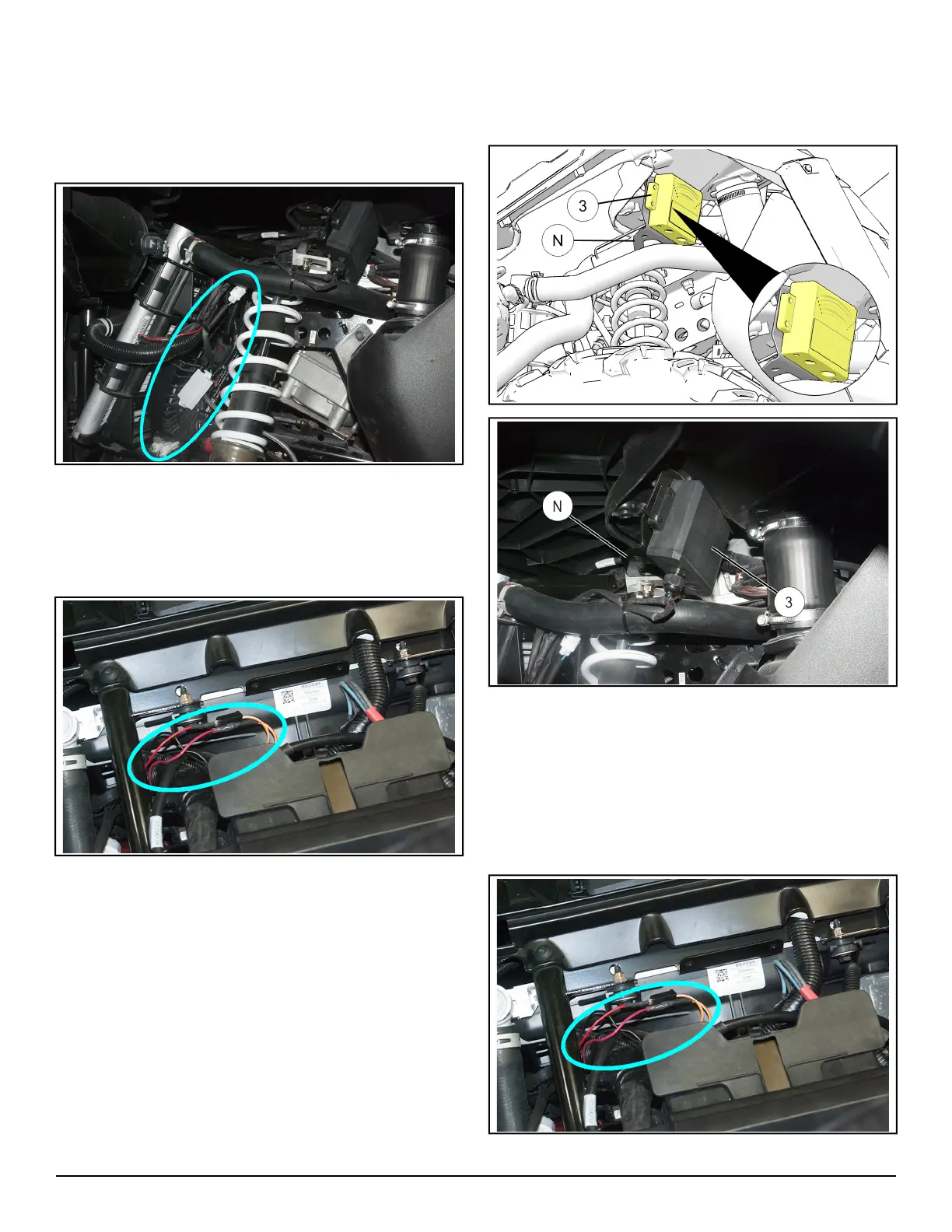

CONTROL BOX INSTALLATION
1. Position control box on the left side of the vehicle
behind the radiator as seen in the photo below.
Connect white electrical connectors for the control
box as seen in the top photo of the Electrical
Connections Reference Guide.
2. Route power wires to the battery area and connect
the red or orange wire from the control box to the
orange wire on the vehicles main wire harness as
seen below. Route black wires from control box
w
to black (ground) terminal on battery but DO NOT
CONNECT TO BATTERY AT THIS TIME.
WIRELESS REMOTE RECEIVER INSTALLATION
1. Mount wireless remote receiver
e
onto cab
support bracket
N
using provided cable ties as
shown.
2. Connect white electrical connectors as seen in the
top photo of the Electrical Connections Reference
Guide. Route power wires to battery area and
connect red or orange wire on control box to
orange wire on the vehicles main wire harness as
seen below. Route the black wires from the control
box to the
w
to the black (ground) terminal area
on the battery but DO NOT CONNECT TO THE
BATTERY AT THIS TIME.
To Next Page
