Instrument Cluster
Rider Information Center

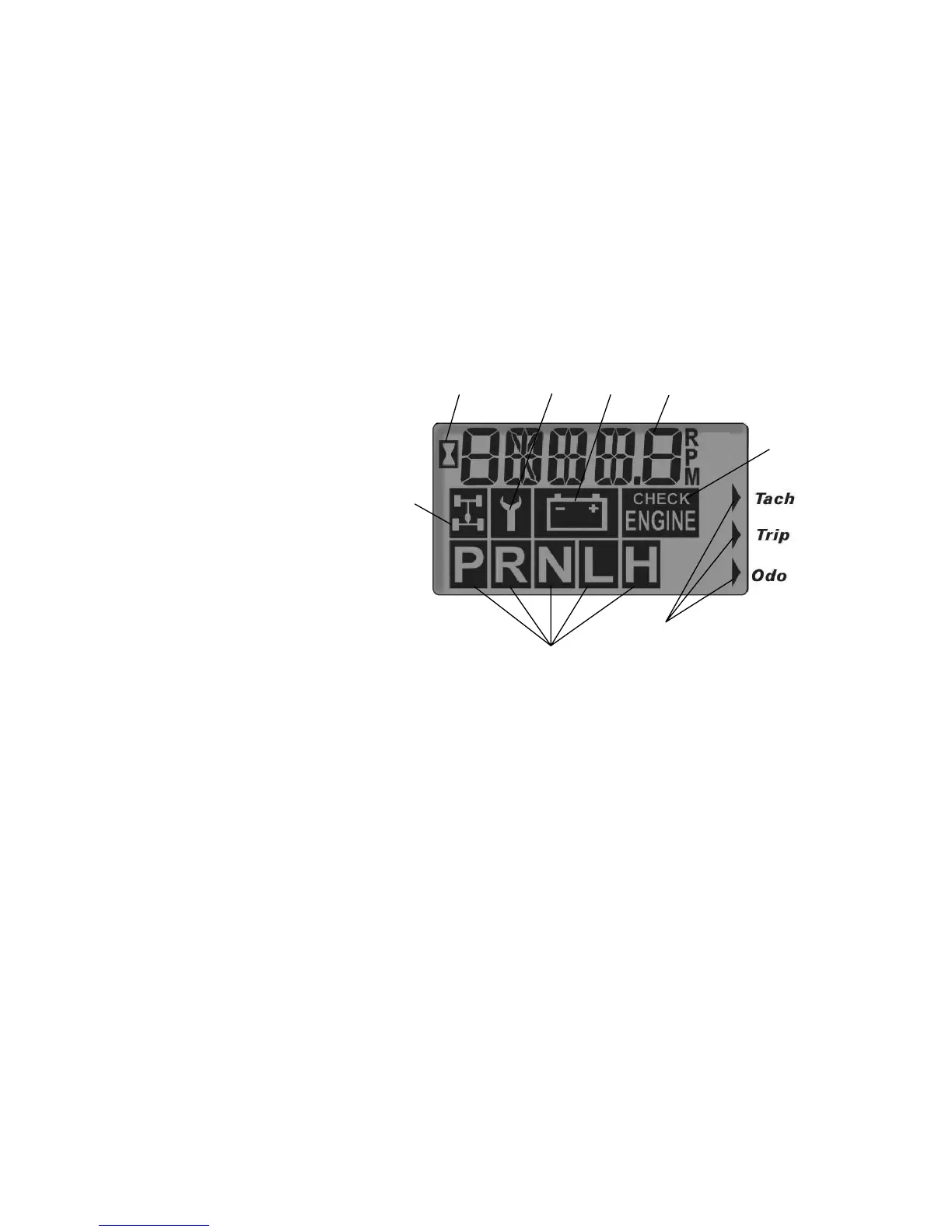

The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster may have
shut off to protect the electrical system. If this occurs, take the ATV to
your Polaris dealer for proper diagnosis.
1. Gear Indicator - As the s hift lever is m oved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P = Park (if equipped)
2. AWD Indicator - This
indicator illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service In terval/Diagnostic Mode Indicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is being operated at an R PM too low to keep the
battery charged. A low batte ry warning may also occur under normal
oper ation if the mac hine is at idle and high ele ctric al load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Check Engine Warning Indicator - The word HOT will display
alphanumerically when the engine is overheating. Do not continue
to operate the ATV if this warning appears or serious engine
damage could result.
8. Mode Indicator
7
5
4
3
1
6
2
8
