3
I. Introduction
Thank you for choosing a Polaris 65. You will
find that it vacuums the bottom and sweeps the
sides of any size or shape aboveground pool.
The Polaris 65 does all the hard work for you,
leaving you with a sparkling clean pool. It's
simple to use and easy to install. Just follow
these step-by-step instructions.
II. Installation Instructions

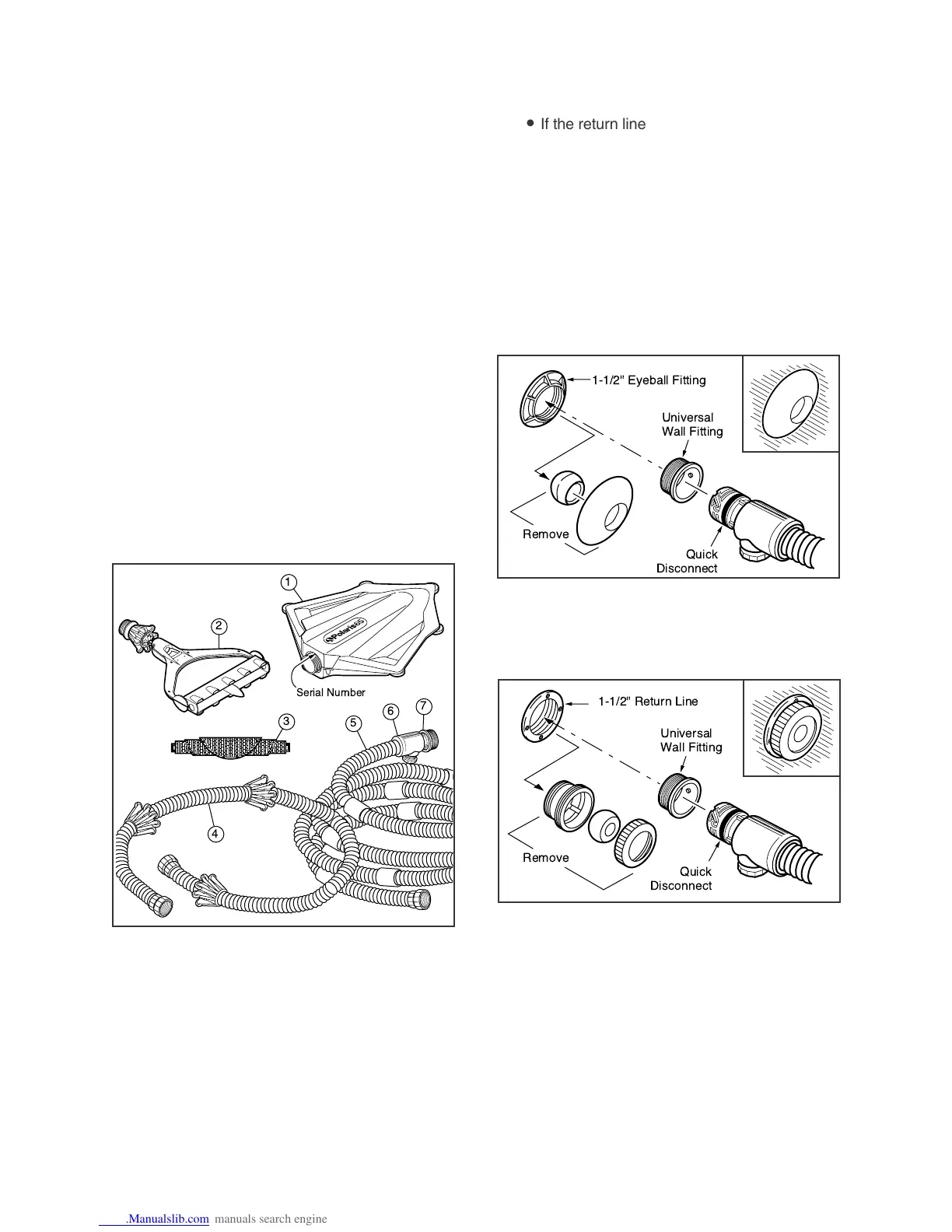

A. Polaris 65 Components
The Polaris 65 box contains:
1. Surface Module
2. Jet Sweep Assembly
3. All-Purpose Bag
4. Sweep Hose, 7 Ft.
5. Float Hose, 24 Ft.
6. Quick Disconnect
7. Universal Wall Fitting
B. Installing the Universal
Wall Fitting
It is important to have a clean pool filter before
installing the Polaris 65.
1.
Turn on the pool filtration pump and flush out
the plumbing line. Turn off the pump.
2. Unscrew the universal wall fitting from the
quick disconnect.
•
If the return line has 1-1/2" female threads
exposed, screw in the universal wall fitting by
hand. Turn the quick disconnect clockwise
(also by hand) into the universal wall fitting to
tighten it into place; do not overtighten.
Once the universal wall fitting is secure, the
quick disconnect can be removed without
removing the universal wall fitting.
•
If the return line looks like the one below,
remove the parts shown and install the
universal wall fitting as described above.
•
If the return line looks like the one below,
remove the parts shown and install the uni-
versal wall fitting as described above.
•
If the return line is a 1-1/4" or 2" eyeball fit-
ting, you will need to obtain a Polaris
Adapter Kit (part #6-510-00) from a partici-
pating Polaris dealer.
If the return line is different than those listed,
contact our Customer Service Department at
1-800-VAC-SWEEP.
Note: Once installed, verify the cleaner is
operating according to the Operation Section
on page 4.
