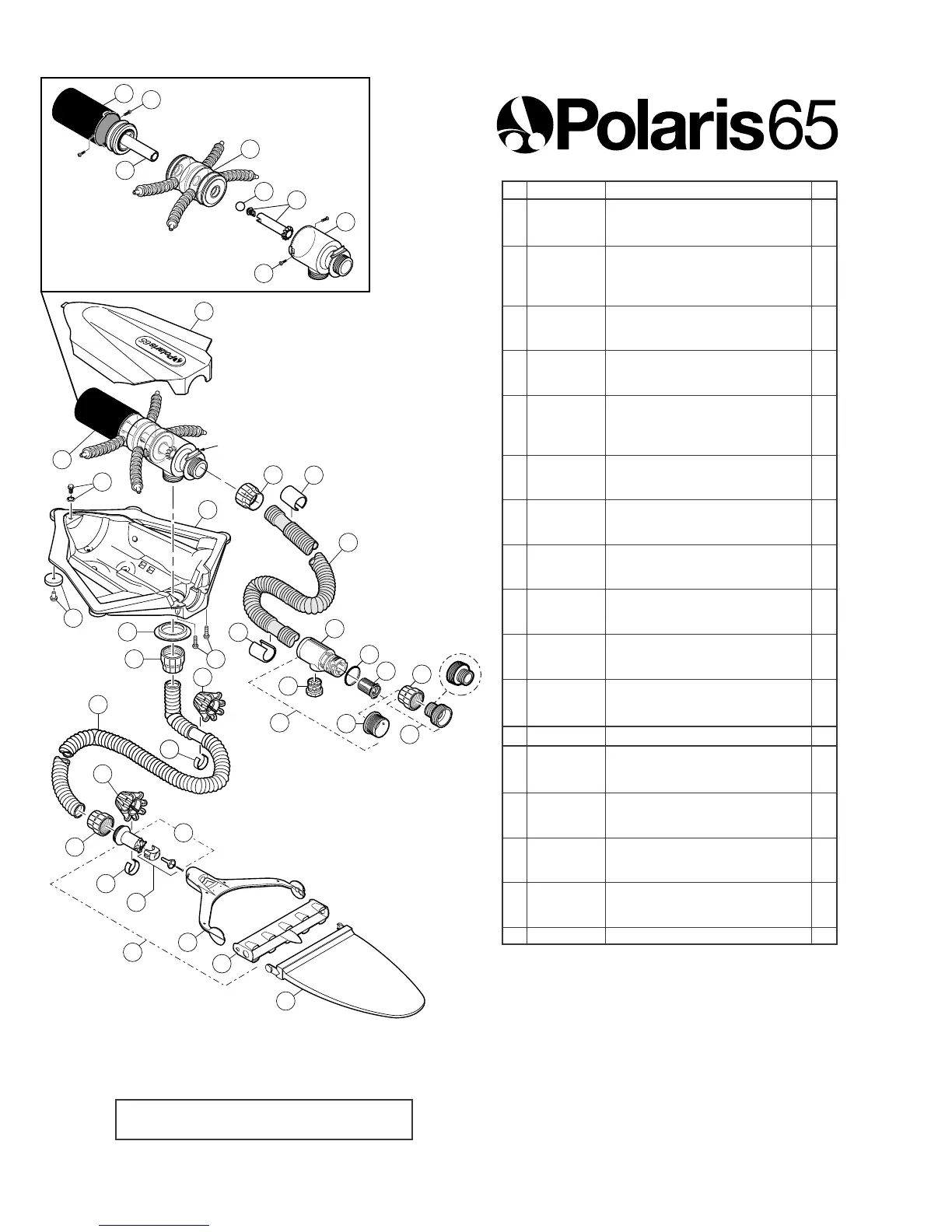

Polaris Vac-Sweep 65 User Manual

No. Part # Description Qty
1 6-308-00 Surface Module Top, Blue 1
2 6-400-00 Mechanism 1
3 6-407-00 Cylinder 1
4 6-413-00 Screw, Mechanism, #6 x 5/16" 4
SS Sheet Metal, Blunt-end
5 6-411-00 Piston Assembly 1
6 6-409-00 Center Chamber Assembly 2
7 6-403-00 Randomizer Ball 4
8 6-406-00 Filter Connector/Randomizer Tube Kit 1
9 6-408-00 Connector Chamber 1
10 6-507-00 Drain Plug Assembly 1
11 6-305-00 Body Bottom Assembly, Gray 1
12 6-301-00 Body Bottom Wheel Kit, Gray 5
13 6-104-00 Hose Connector, Female 3
14 6-302-00 Screw, Top, #10 x 3/4" SS 2
Sheet Metal, Pan Head
15 6-107-00 Wheel Cage Assembly 6
16 6-110-00 Hose Weight 6
17 6-106-00 Sweep Hose Complete, 7 Ft. 1
18 6-116-00 Jet Body Assembly 1
19 6-119-00 Jet Body Ball Kit 1
20 6-211-00 Jet Sweep Harness 1
21 6-210-00 Jet Sweep Head 1
22 6-212-00 Jet Sweep Assembly 1
23 6-206-00 All-Purpose Bag 1
24 6-222-00 Float, Gray 24
25 6-225-00 Float Hose, 24 Foot (Hose only), Gray 1
26 6-502-00 Quick Disconnect, UWF 1
27 6-503-00 Pressure Relief Valve 1
28 6-508-00 UWF Connector Assembly 1
29 6-505-00 O-ring, UWF/QD 1
30 6-500-00 Universal Wall Fitting (UWF) 1
31 6-510-00 UWF Adapter, 1-1/4" or 2" 1
32 6-512-00 UWF Adapter, 2" 1
33 6-504-00 Filter Screen, UWF/QD 1
Parts Not Shown
G-21 Ladder Guard, 2 Panels
6-101-00 Adapter Kit for 1-1/4" or 2"
6-103-00 Hose Connector, Male
6-109-00 Hanger Kit (Includes 8 brackets)
6-112-00 Sweep Hose, 10 Foot (Hose only)
6-113-00 In-line Pressure Tester
6-207-00 Leaf Bag
6-221-00 Float Hose Extension Kit, 8 Ft, Gray
6-309-00 Turtle Top
6-511-00 UWF Eyeball Fitting
9-100-8006 Standard Eyeball Regulator Disk
10-102-00 UWF Removal Tool, Plastic
11-203-00 Adjustable Plug, UWF
8
18
25
12
10
13
17
28
16
Serial Number
2
31
27
30
14
17
24
24
29
26
13
11
2
13
16
19
20
21
22
23
15
15
1
32
33
4
5
4
3
6
7
8
9
To ensure proper operation and long life for the Polaris,
be sure to insist on genuine Polaris parts.
